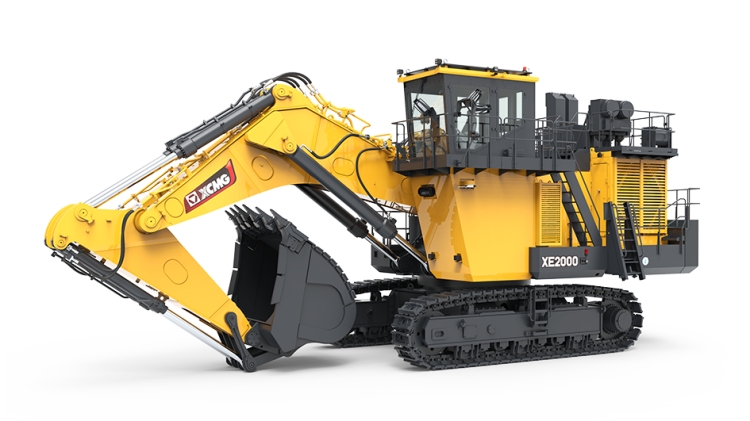

In high-intensity continuous operations of 200-ton mining excavators, the track tension system directly determines the machine’s travel stability, undercarriage component lifespan, and construction safety. The XCMG XE2000 Mining Excavator Left Track Adjuster Cylinder 804008520, a core OEM component, is specifically designed for the XE2000 (192-ton) super-large excavator. It adapts to heavy-load, high-impact conditions such as open-pit coal mines and metal mines, serving as a critical device for maintaining optimal track tension and preventing derailment and abnormal wear.
I. Core Product Specifications (Genuine OEM)
- Part Number: 804008520
- Compatible Model: XCMG XE2000 Mining Excavator (Left Track)
- Cylinder Body Material: High-strength alloy steel forging, quenched and tempered
- Piston Rod Technology: Nickel-chromium double-layer electroplating, wear and corrosion resistant, suitable for -40℃ to 100℃ extreme temperatures
- Working Pressure: 24.3–38 MPa, peak pressure up to 40 MPa
- Stroke: 350–3550 mm, adjustment range covering all working conditions
- Sealing System: High-temperature resistant, anti-aging composite seals, leak-proof design, adapting to mining dust and humid environments
- Weight: Approx. 280 kg, OEM precise counterweight, 100% installation compatibility
II. Core Functions & Mining Application Value
1. Precise Tension Adjustment, Eliminating Track Derailment
The 804008520 cylinder adjusts left track tension in real time via hydraulic expansion and contraction: loose tracks easily derail on bumpy mine roads, while over-tight tracks accelerate wear on chain links, drive wheels, and idlers. Working with the tension spring, this cylinder dynamically balances between “slack and tension” to ensure the track maintains optimal tension, significantly reducing derailment risk and undercarriage replacement costs.
2. Heavy-Load Impact Resistance, Adapting to Harsh Mining Conditions
The XE2000 operates 7,500 hours annually, enduring rock impacts, sand erosion, and extreme temperature fluctuations. The 804008520 cylinder features an alloy steel forged body with no weak weld points; the hardened piston rod resists dents and wear; an internal buffer structure absorbs impact loads during travel, preventing cylinder deformation or oil leakage for reliable 24/7 continuous operation.
3. OEM Precise Compatibility, Efficient Installation & Maintenance
As a genuine XCMG part, the 804008520 perfectly matches the XE2000’s left track frame and idler assembly, enabling direct replacement without modification, greatly reducing downtime. Compatible with the machine’s automatic lubrication system, it minimizes joint wear, extends the lifespan of the cylinder and track system, and lowers mining operation and maintenance costs.
III. OEM Advantages: Key Differences from Aftermarket/Substitute Parts
- Material & Technology: Genuine OEM uses alloy steel forging + nickel-chromium electroplating, with a fatigue life of over 15,000 hours; aftermarket parts are mostly ordinary cast steel, prone to cracking and rusting, with oil leakage or seizing within 3,000 hours.
- Sealing Reliability: OEM uses imported composite seals, high-temperature and pressure resistant, dust and leak proof; aftermarket seals age easily, leaking within 3–6 months in dusty mining environments and contaminating the hydraulic system.
- Warranty & After-Sales: The 804008520 is covered by XCMG’s OEM warranty, with free replacement and repair for non-human damage; aftermarket parts often have no warranty, requiring costly replacements and causing significant downtime losses.
- Safety Compatibility: OEM cylinder pressure parameters precisely match the XE2000 hydraulic system, avoiding overload bursts or insufficient tension; aftermarket parts with mismatched parameters easily cause safety accidents such as track derailment and travel loss of control.
IV. Compatible Applications & Replacement Recommendations
Compatible Applications
- Heavy-load excavation and material handling in open-pit coal mines, metal mines (iron, copper, etc.)
- Continuous operation in extreme conditions such as plateaus, extreme cold, and high dust
- Replacement for aging, leaking, or insufficient tension in the left track tension system of XE2000 excavators
Replacement Recommendations
- Regular Inspection: Check for oil leakage, piston rod rust, or seizing every 250 hours; replenish hydraulic fluid promptly
- Replacement Cycle: 8,000–10,000 hours under normal conditions; shorten to 5,000–6,000 hours under harsh conditions (high impact, humidity)
- OEM Priority: Always choose the genuine 804008520 for replacement to avoid secondary failures from aftermarket parts and ensure high mining attendance.
V. Conclusion
The XCMG XE2000 Mining Excavator Left Track Adjuster Cylinder 804008520 is the “core guardian” of undercarriage stability for 200-ton mining excavators. With high-strength materials, precision technology, precise compatibility, and reliable after-sales support, it maintains optimal track tension in extreme mining conditions, protects undercarriage components, reduces operation and maintenance costs, and ensures 7,500 hours of stable annual operation. Choosing the genuine 804008520 means choosing safety, efficiency, and long-term value, safeguarding mining construction operations.
