For large mining dump trucks, the cargo compartment is a major structural assembly that directly supports the vehicle’s payload-handling work. When replacement is required, buyers need to look beyond the main steel body and consider the associated hinge components, cushions, rock ejectors, mudguards, fasteners, and other installation parts.

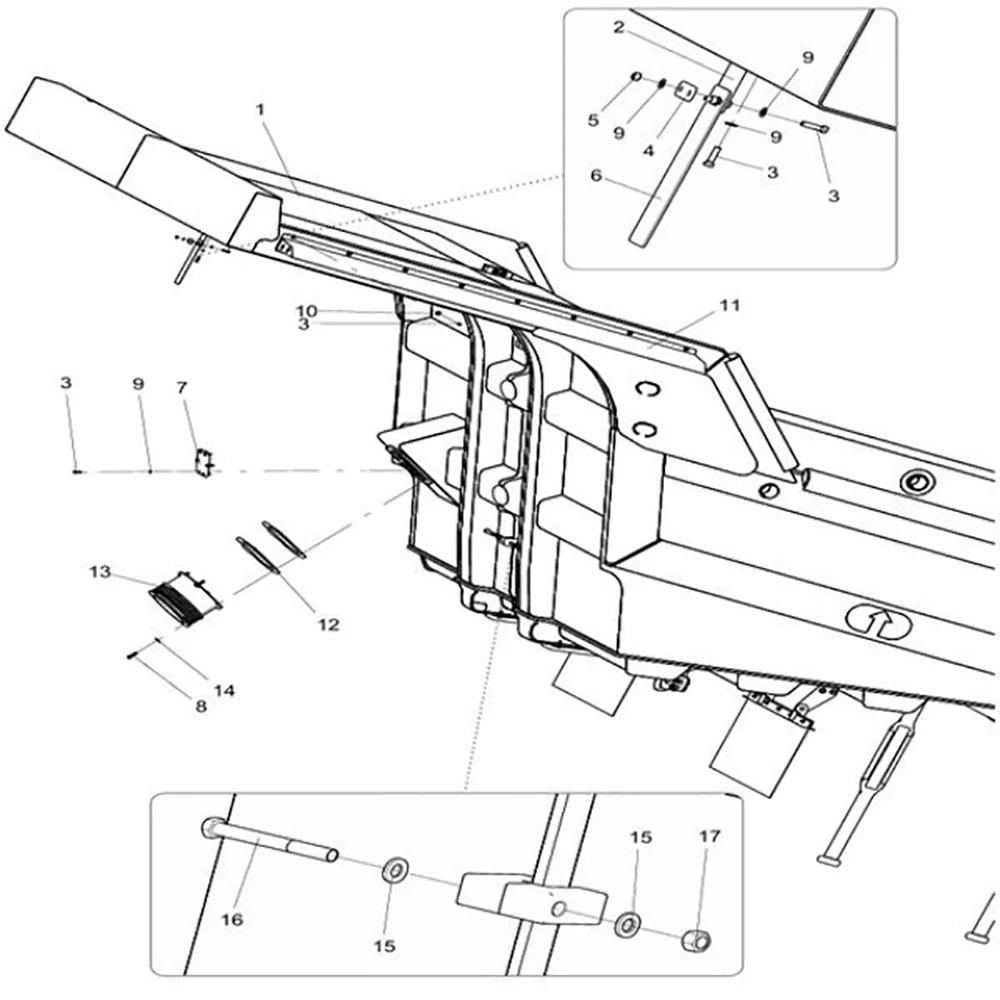

The 330107127 Cargo Compartment Assembly is designed for the XCMG XDE130 Electric Driving Dump Truck. The assembly is identified as the main dump body or haul box and consists of 52 listed component items, including the welded cargo compartment, hinge pin shaft assemblies, heating port component, stone deflecting rod components, cushions, shock pads, mudguards, and mounting hardware.
For buyers sourcing heavy equipment spare parts, understanding how these components fit into the complete cargo compartment assembly can make part identification and replacement planning more straightforward.
Understanding the XCMG XDE130 Cargo Compartment Assembly
The 330107127 Cargo Compartment Assembly is the payload-carrying structure for the XCMG XDE130. Its master component is 330107132 Welded Cargo Compartment Assembly, listed as Index 1 in the 52-part group.
However, the complete assembly includes much more than the welded body itself. The parts list also covers mounting plates, pressure plates, cushions, hinge pin shaft assemblies, adjusting shims, rock ejectors, mudguards, lamp housings, pins, bolts, nuts, and washers.
This structure gives buyers two practical sourcing options. A complete 330107127 assembly can be requested when a broader structural replacement is needed, while individual components can be sourced when only specific parts require replacement.
The assembly includes components such:
- 330107132 Welded Cargo Compartment Assembly — Qty. 1
- 330105066 Hinge Pin Shaft Assembly — Qty. 2
- 330105067 Hinge Pin Shaft Assembly — Qty. 2
- 330107185 Stone Deflecting Rod Component — Qty. 2
- 330107108 Heating Port Component — Qty. 1
- 330107100 Splash Board — Qty. 2
- 330107212 Cushion — Qty. 3
- 330102523 Shock Pad — Qty. 8
The full master list contains 52 indexed items, so buyers should use the specific part number when requesting individual components.
Key Components in the XCMG XDE130 Dump Body
The 330107127 assembly contains several groups of components with different roles. Identifying these parts by their catalog numbers helps avoid confusion when ordering replacements.
Welded Cargo Compartment Assembly
The 330107132 Welded Cargo Compartment Assembly is the primary dump body listed under the 330107127 group. It represents the main structural body rather than a small replacement component.
For projects involving a complete body replacement or major structural rebuild, buyers should specify whether they require the complete welded cargo compartment or only associated components from the master assembly.
Hinge Pin Shaft Assemblies
The assembly includes two types of hinge pin shaft assemblies:
- 330105066 Hinge Pin Shaft Assembly — Qty. 2
- 330105067 Hinge Pin Shaft Assembly — Qty. 2
These components form part of the dump body’s pivot arrangement. Related items in the same group include 330100660 Spacer Sleeve, 330106666 Adjusting Shim I, 330106667 Adjusting Shim II, blanking plates, plates, washers, bolts, and nuts.
When ordering, the exact part number is important because the two hinge pin shaft assemblies are separately identified in the parts list.
Rock Ejectors and Mudguards
The 330107185 Stone Deflecting Rod Component includes two pieces and serves as a rock ejector in the cargo compartment assembly. The group also includes pins and adjusting shims associated with this component.
The cargo compartment assembly contains several mudguard-related parts, including:
- 330107100 Splash Board — Qty. 2
- 330107214 Front Mudguard Connecting Plate Component — Qty. 4
- 330404053 Mudguard Mounting Plate — Qty. 4
These parts should be specified separately when only the mudguard or its mounting components need replacement.
Cushions, Shock Pads, and Mounting Hardware
The 330107127 group contains multiple cushion and shock-pad components, including 330107212, 330102523, 330102524, 330107219, 330102852, 330102851, and 330102850.
The assembly also contains a substantial number of standard fasteners. Examples include M12, M16, M20, and M24 bolts and nuts, along with different washer types and pins.
For buyers comparing heavy machinery parts, these smaller components should not be overlooked. A replacement project may require individual mounting hardware or cushions even when the main cargo body remains in service.
What to Consider When Choosing Heavy Equipment Spare Parts
Choosing the correct replacement component starts with accurate part identification rather than simply matching a general component name.
Part Number and Machine Compatibility
The primary reference for this assembly is 330107127, and the applicable machine is the XCMG XDE130 Electric Driving Dump Truck.
For individual components, buyers should provide the exact part number whenever possible. For example, 330107185 identifies the Stone Deflecting Rod Component, while 330105066 and 330105067 identify different hinge pin shaft assemblies.
Providing the XCMG XDE130 machine serial number or VIN is also recommended when requesting parts. Details such as exhaust port routing, mudguard mounting points, and hinge pin dimensions can vary according to production year and specific payload configuration.
Condition and Replacement Requirements
Not every repair requires replacement of the entire cargo compartment. Buyers should first determine whether they need the complete welded body, a sub-assembly, or an individual component.
For example, a project may require only a hinge pin assembly, rock ejector, cushion, shock pad, mudguard component, or mounting fastener. Identifying the exact replacement scope can help reduce unnecessary purchasing.
Complete Assemblies vs. Individual Components
The 330107127 group is useful for both complete assembly sourcing and targeted replacement.
A complete cargo compartment may be appropriate for a major structural rebuild, while individual parts can be specified for maintenance or localized replacement. Buyers should clearly state the required index number, part number, quantity, and machine information when submitting an inquiry.
How to Order XCMG XDE130 Cargo Compartment Components
A clear inquiry should include four basic pieces of information:
Machine model: XCMG XDE130 Electric Driving Dump Truck
Assembly number: 330107127
Required part number and quantity: for example, 330107185 Stone Deflecting Rod Component, Qty.
Destination port or delivery location: required for freight planning
If the requirement is for the complete welded body, buyers should specify 330107132 Welded Cargo Compartment Assembly. If only selected parts are needed, the relevant index and part number should be listed separately.
For better fitment verification, providing the machine VIN or serial number is recommended, particularly when ordering components associated with mounting positions or dimensions.
Conclusion
The 330107127 Cargo Compartment Assembly provides a structured reference for sourcing cargo body components for the XCMG XDE130 Electric Driving Dump Truck. Its 52-part group covers the main welded cargo compartment as well as hinge pin shaft assemblies, rock ejectors, heating port components, cushions, shock pads, mudguards, and installation hardware.
For buyers sourcing construction equipment parts, the key is to identify whether the project requires the complete assembly or specific replacement components. Using the correct part number, confirming the XDE130 machine information, and providing the required quantities can make the quotation and fitment process more efficient.
For a quotation, contact CNForce with the required 330107127 components, quantities, machine serial number or VIN, and destination port. Our team can provide the relevant quotation and freight information based on your requirements.
