Key Takeaways
- The service life of the 800362009 rim assembly depends on correct component matching, regular inspections, and proper tire maintenance.
- Pay close attention to the lock ring, rim retainers, bead seat area, and O-ring. Damage or incorrect assembly can affect rim safety and sealing.
- Corrosion, deformation, cracks, improper inflation, and incompatible components can shorten rim service life and increase replacement costs.
- Always follow the applicable rim manual and professional service procedures. Visual inspection alone cannot determine whether a multi-piece rim is safe to reuse.
What Is the 800362009 Rim Assembly?
The 800362009 rim assembly is a multi-piece steel rim designed for the XCMG XDE130 electric-drive mining dump truck. It is installed at the outer wheel position on the rear drive axle.
Unlike a conventional one-piece wheel, this assembly contains several components that must fit together correctly. The complete assembly includes the 800370270 Rim Base, rim retainers, lock rings, and the 803412797 O-Ring. Together, these parts support the tire, hold the rim components in place, and provide an airtight seal for tubeless tires.

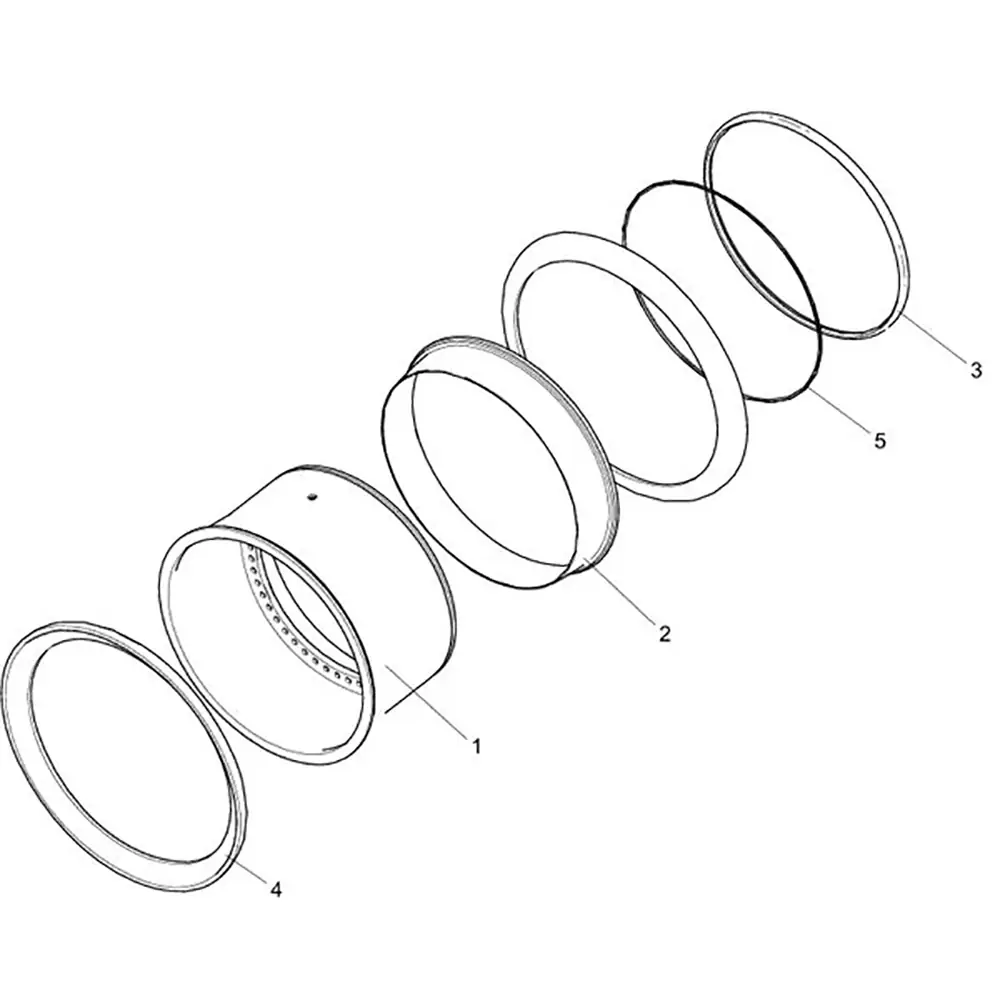

800362009 Assembly Components
| Part Number | Component | Qty. | Main Function |
| 800370270 | Rim Base | 1 | Main outer rim body |
| 800370269 | Wheel Rim Seat Retainer | 1 | Supports the bead seat structure |
| 800370266 | Rim Retainer | 1 | Secures the bead seat assembly |
| 800370267 | Wheel Rim Retainer Ring | 2 | Locks the multi-piece rim assembly |
| 803412797 | O-Ring OR4-51 | 1 | Provides an airtight seal for the tubeless tire |
| 800362009 | Complete Rim Assembly | 1 | Complete outer rim assembly |
What Can Shorten the Service Life of Heavy-Duty Equipment Parts?
Wheel assemblies on large electric mining dump trucks operate under heavy loads. However, normal loads are not the only factor that affects rim life. Maintenance practices, component condition, and service procedures can also lead to premature replacement.
1. Corrosion and Surface Damage
Steel rim components are exposed to moisture, mud, dust, road debris, and other contaminants during operation. If corrosion continues to develop, it can affect critical areas such as the bead seat and locking components.
Pay particular attention to:
- Lock rings and retainer surfaces
- Bead seat areas
- Rim flanges
- Component connections and contact areas
- Areas with severe pitting or material loss
Clean minor surface contamination during routine inspections. If you find severe pitting, cracks, deformation, or structural damage, do not treat it as a routine maintenance issue. The affected part should be assessed before it returns to service.
2. Incorrect Component Matching
A multi-piece rim contains several components that must fit together correctly. Two parts may look similar but still be incompatible. Using the wrong part can affect assembly and safe operation.
When purchasing heavy equipment spare parts, confirm the equipment model, part number, and rim position before ordering.
3. Improper Tire Installation or Inflation
Tire installation and inflation can place significant force on a multi-piece rim. If the tire is installed incorrectly, the bead is forced into position, or improper inflation procedures are used, the retainers and locking components may be damaged.
This can damage the rim and create serious service hazards. If a pressurized component separates during service, it can cause severe injury.
For this reason, do not service a multi-piece rim like a conventional wheel. Before installing or inflating a tire, confirm the correct service procedure for the specific rim assembly.
What Features Help Extend the Service Life of the 800362009 Rim Assembly?
Proper maintenance is essential. However, replacement parts must also match the original rim design and application requirements.
For buyers replacing a complete rim or an individual component, correct fit, complete component configuration, and reliable product quality can all affect service life.
When selecting heavy construction equipment parts, look beyond the part number. Confirm what the supplier actually provides. For example, when sourcing the 800362009 rim assembly from Nengwei, buyers can focus on three key areas.
1. The Replacement Parts Must Match the Original Rim
The 800362009 is a multi-piece rim assembly for the outer wheel position of the rear dual-wheel configuration on the XCMG XDE130. Its rim base, retainers, lock rings, and O-ring must fit the original configuration correctly.
Nengwei supplies the 800362009 rim assembly for the specified equipment model and wheel position. Complete assemblies or individual components can also be supplied according to the purchasing requirement.
Confirm the correct part number and installation position before ordering. This helps prevent fitment problems and supports proper installation.
2. Critical Components Must Be Complete and Reliable
The 800362009 is more than a single steel rim. Several components work together to secure the tire and maintain the seal. A problem with any critical part can affect the complete assembly.
The complete 800362009 assembly supplied by Nengwei includes the 800370270 Rim Base, 800370269 Wheel Rim Seat Retainer, 800370266 Rim Retainer, 800370267 Wheel Rim Retainer Ring, and 803412797 O-Ring.
A complete configuration helps buyers confirm all required parts at once. It also reduces the risk of installation delays caused by missing components.
3. Product Quality Must Suit Heavy-Duty Applications
The XCMG XDE130 is a large mining dump truck. Its rims operate under heavy loads during vehicle operation. Replacement parts therefore need more than the correct dimensions. They should also have suitable construction and manufacturing quality for heavy-duty applications.
Nengwei supplies 800362009 heavy-duty rim parts and supports the global supply of XCMG OEM replacement parts. For mines, quarries, and large construction sites, buyers can confirm the required part number, product specifications, quantity, and technical details before ordering.
FAQ
1. Which Equipment Uses the 800362009 Rim Assembly?
The 800362009 rim assembly is used on the XCMG XDE130 electric-drive mining dump truck at the outer wheel position of the rear drive axle.
2. What Is the Difference Between 800362009 and 800362010?
The main difference is the installation position. 800362009 is for the outer wheel position in the rear dual-wheel configuration, while 800362010 is for the inner wheel position.
Always confirm the required wheel position before ordering.
3. Can Components of the 800362009 Be Purchased Separately?
Yes. The assembly contains several individual components, including the 800370270 Rim Base, retainers, 800370267 Wheel Rim Retainer Ring, and 803412797 O-Ring.
However, whether a component can be replaced separately should be determined based on inspection results and the applicable service documentation.
4. How Can I Request a Quote for the 800362009 Heavy-Duty Equipment Part?
Provide the part number, required quantity, whether you need a complete assembly or individual components, and the destination port.
If technical confirmation is needed, you can also request the relevant specifications or MTC as part of the RFQ.
Conclusion
The service life of construction machine parts, such as the 800362009 rim assembly, depends on correct part identification, component condition, proper tire maintenance, and timely replacement of damaged parts.
Regular inspection is essential. Using the correct components also matters. Most importantly, follow the applicable rim service procedures whenever the tire or multi-piece rim requires maintenance.
For XCMG XDE130 operators, confirming that 800362009 is intended for the outer wheel position before purchasing can help prevent ordering errors and unnecessary downtime.
If you need a complete rim assembly or specific replacement components, contact us with your required quantity and destination port to submit an RFQ.
