The dashboard assembly is an important part of a dump truck’s operator cabin. It provides mounting positions for instrument panels, switches, ventilation outlets, and other interior components. When replacing dashboard parts, buyers need to identify the correct assembly number and confirm which components are required.
The 330502817 Dashboard Assembly is designed for the XCMG XDE130 Electric Driving Dump Truck. This assembly includes the main instrument desk, key switch mounting panel, rocker switch panel, ventilation components, storage cover, access panel, and other fittings. Buyers can request the complete assembly or specify individual components according to their repair requirements.
For businesses sourcing heavy equipment spare parts, understanding the assembly structure and component numbers helps make the ordering process more precise.
What Are Dump Truck Dashboard Components?
Dump truck dashboard components are the panels and fittings installed in the operator cabin. They include the main dashboard shell, switch mounting panels, ventilation outlets, and interior covers.
The 330502817 Dashboard Assembly brings these components together for the XCMG XDE130. Its main instrument desk provides the central dashboard structure, while separate panels and fittings serve specific positions within the cabin.
The assembly is listed under mining truck spare parts and is intended for the XDE130 electric driving dump truck. When purchasing construction equipment parts, buyers should check the machine model and part number instead of relying on general descriptions alone.
Key Components of the 330502817 Dashboard Assembly

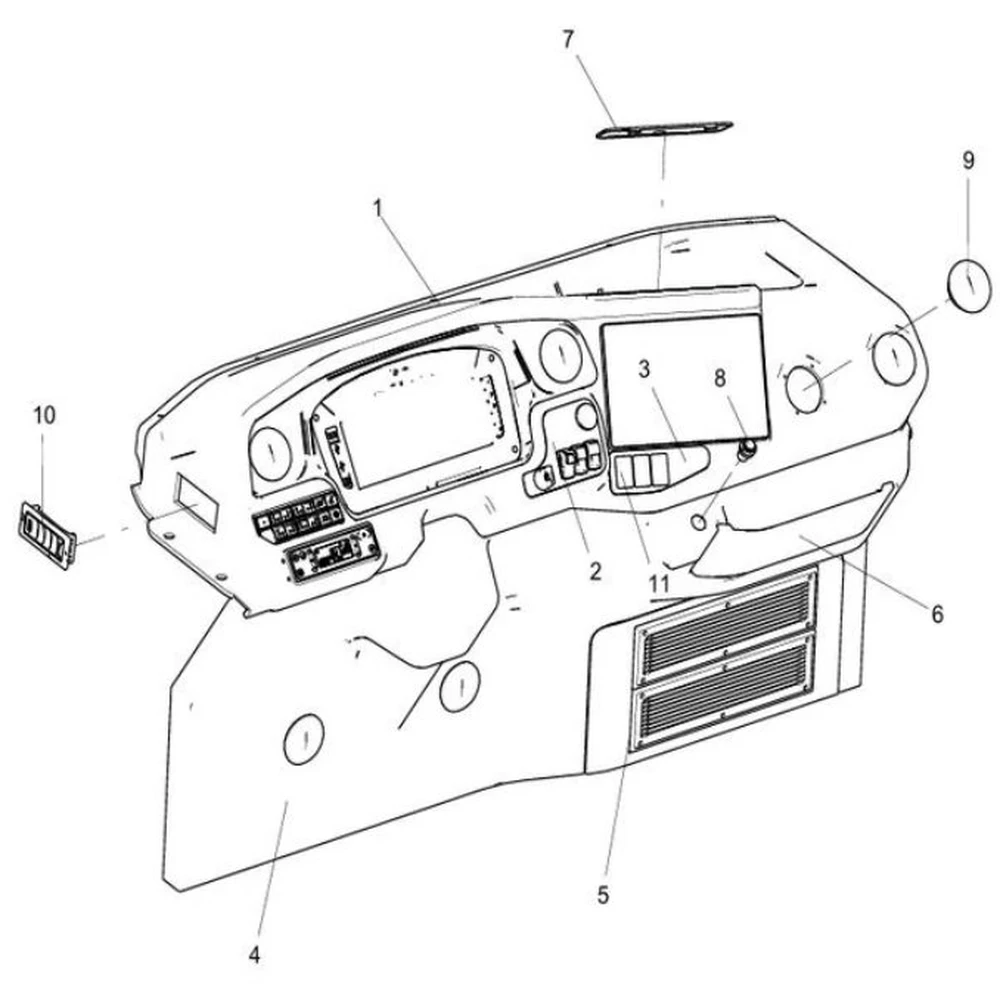

The 330502817 assembly contains 11 listed component types, including the main dashboard shell, switch panels, ventilation fittings, and other interior parts.
Instrument Desk and Dashboard Shell
The Instrument Desk (330502805) is the main dashboard shell. It forms the central structure of the assembly and provides the mounting area for other dashboard components.
The assembly also includes the Lower Coaming (330502816), which forms part of the lower dashboard fascia. These components should be identified by their part numbers when arranging a replacement.
Key Switch and Rocker Switch Panels
The assembly includes two separate switch panels:
- Key Switch Mounting Panel (330502815): Provides the designated mounting position for the key switch.
- Rocker Switch Panel (330502803): Forms the mounting panel for rocker switches.
It also includes three Cold Starter Switch Baffles (802152153). Buyers ordering individual construction machine parts should confirm the required quantity and part number before submitting an inquiry.
Air Conditioning Outlets and Ventilation Components
The dashboard assembly includes several components associated with cabin ventilation:
| Part Number | Component Description | Quantity |
| 330502810 | Return Air Plate Assembly | 1 |
| 802152174 | Round Ventilation Orifice | 6 |
| 802157644 | Air Conditioning Outlet | 2 |
These components are listed separately in the assembly. When replacing a ventilation fitting, buyers should identify the specific part rather than ordering solely by the overall dashboard assembly number.
Storage Covers and Access Panels
The 330502817 assembly also includes the following interior fittings:
| Part Number | Component Description | Quantity |
| 330502801 | Storage Box Cover | 1 |
| 330502802 | Access Panel | 1 |
| 802155972 | Cigarette Lighter / 12V–24V Power Socket | 1 |
These parts can be identified individually in the component list. If the repair only involves a particular cover or fitting, buyers can ask about that component instead of automatically ordering the complete dashboard assembly.
When Should You Replace the Complete Dashboard Assembly or Individual Parts?
The appropriate purchasing option depends on the condition of the existing dashboard and the scope of the repair.
Complete assembly replacement
Ordering the full 330502817 Dashboard Assembly may be suitable when several listed components need to be replaced together. Using the assembly number also provides a clear reference for the overall product being requested.
Individual component replacement
If only one or a few components require replacement, buyers can specify the relevant part numbers. For example, a request may concern the main Instrument Desk (330502805), Rocker Switch Panel (330502803), or Air Conditioning Outlet (802157644).
Before ordering individual parts, confirm their availability and compatibility with the machine. The required components and quantities should be listed clearly in the inquiry.
How to Choose the Right Dashboard Spare Parts for a Dump Truck
Selecting the correct heavy machinery parts begins with confirming the machine and identifying the required components.
Check the Equipment Model and Part Number
The 330502817 Dashboard Assembly is specified for the XCMG XDE130 Electric Driving Dump Truck. Buyers should provide this model information when requesting a quotation.
For individual components, use the part numbers in the assembly list. Providing the machine serial number or VIN can also help the supplier check the intended cabin configuration. According to the product information, dashboard cutouts, gauge clusters, and switch panel configurations may vary by regional requirements and cabin trim levels.
Confirm the Required Components and Quantities
Review the parts list before submitting an order. If several components are required, list each part number and quantity separately. This makes it easier to distinguish a complete assembly order from a request for selected parts.
For example, buyers who need replacement ventilation fittings should specify the relevant part number and quantity rather than describing the requirement simply as dashboard parts.
Check the Parts Option Before Ordering
The product listing offers genuine XCMG OEM parts and aftermarket alternatives. Buyers should state their preference when requesting a quote and confirm which components are included in the supplier’s offer.
This is particularly important when comparing quotations for a complete assembly and individual parts, as the scope of supply may differ.
Conclusion
The 330502817 Dashboard Assembly is designed for the XCMG XDE130 Electric Driving Dump Truck. Its listed components include the main instrument desk, switch mounting panels, ventilation fittings, storage cover, access panel, and other cabin parts.
For buyers sourcing heavy equipment spare parts, the key steps are to confirm the machine model, check the assembly and component numbers, and decide whether the repair requires the complete dashboard or individual parts.
Providing the required quantities, parts preference, and destination port helps clarify the purchasing request. Contact our team to inquire about the 330502817 Dashboard Assembly and its listed components for the XCMG XDE130.
