XCMG XE2000 Hydraulic Control Explained: The Role of Main Control Valve 804001694

Key Takeaways

The main control valve is a central component in an excavator’s hydraulic control circuit, directing hydraulic oil to different working functions.

Stable hydraulic flow and clean fluid are important for consistent valve and actuator performance.

When sourcing xcmg excavator parts, buyers should verify the machine model, part number, serial number, and physical connection details.

The 804001694 main control valve is listed for the XCMG XE2000 excavator and should be verified against the existing component and machine documentation before ordering.

How Does an Excavator Hydraulic System Control Machine Movements?

A hydraulic excavator converts engine power into hydraulic energy and then uses that energy to perform working movements. The hydraulic pump supplies pressurized oil, while control valves direct the oil toward different actuators. Cylinders can produce linear movement for operating, while hydraulic motors support functions such as travel and swing.

This relationship makes hydraulic system parts interdependent. A problem in one component can affect the operating behavior of other components, so troubleshooting should consider the complete hydraulic circuit.

From Hydraulic Power to Excavator Movement

The basic process can be simplified as:

Hydraulic pump → control valve → actuator → mechanical movement

When the operator moves a control lever or joystick, the hydraulic control system responds by directing oil toward the relevant circuit. The amount and direction of flow influence how quickly and smoothly an actuator responds.

For a large excavator, this process becomes more demanding because several functions may need to operate in coordination. The control system needs to distribute hydraulic flow according to the machine’s operating requirements.

Why Flow Distribution Matters

Flow distribution is particularly important during combined operations. An operator may need to lift the boom while moving the arm or operate the bucket while controlling another function.

A properly functioning control valve helps route hydraulic oil to the required circuits. If flow is restricted, unstable, or incorrectly directed, the operator may notice slower movement, inconsistent response, or difficulty performing combined functions.

Main Control Valve vs. Other Hydraulic Components

The main control valve should not be confused with the hydraulic pump. The pump generates hydraulic flow, while the valve controls where that flow goes.

This distinction is useful when diagnosing an excavator. If an attachment responds slowly, the cause could involve the pump, valve, actuator, oil, filter, or hydraulic connections. Replacing a valve without checking the rest of the system may therefore fail to solve the underlying problem.

What Does a Main Control Valve Do in a Heavy Excavator?

Main control valves are designed to manage hydraulic circuits by controlling the direction and distribution of hydraulic oil. In practical terms, they act as an interface between the hydraulic power source and the machine’s working functions.

The exact internal configuration varies between machines, but a main control valve may contain multiple control sections that correspond to different hydraulic functions. This arrangement allows the excavator to direct oil where it is required according to operator input.

Hydraulic Flow Direction and Pressure Control

The valve’s role is not simply to open or close a passage. Its internal control elements regulate hydraulic flow between different circuits. This supports controlled movement rather than allowing the full pump output to reach an actuator without regulation.

The valve also works within the pressure limits established for the hydraulic circuit. Safe operation requires hydraulic components to remain within their rated operating pressure. OSHA states that the safe operating pressure of hydraulic components should not be exceeded, and hydraulic pressure should be released before breaking connections.

This is a point that deserves special attention during maintenance. Even when the machine is shut down, residual energy may still remain in the hydraulic system—so it should never be taken lightly.

Supporting Combined Excavator Operations

Combined movements place greater demands on the hydraulic control system than a single simple movement. The operator may simultaneously control the boom, arm, bucket, swing, or travel functions.

The main control valve helps coordinate these circuits by directing oil to the appropriate sections. As a result, valve condition can influence response consistency and the overall feel of machine operation.

What Happens When Valve Performance Declines?

Valve-related problems can have several possible symptoms, but these symptoms are not exclusive to the valve itself. For example, slow movement may also be associated with pump performance, hydraulic oil condition, filters, cylinders, or other components.

Common signs that justify further inspection include:

• Slow or inconsistent hydraulic movement
• Poor response to operator input
• Difficulty performing combined movements
• Unusual hydraulic noise or operating behavior

A proper diagnosis should therefore compare the observed symptoms with hydraulic pressure, oil condition, filter condition, and other available service information before a replacement decision is made.

How to Choose the Right Hydraulic Valve Parts for an XCMG Excavator?

Start With the Excavator Model and Part Number

The first step is to identify the exact machine model and the part number of the existing component. The model name alone should not be treated as sufficient evidence of compatibility.

A practical verification process is:

• Check the part number on the existing component or parts documentation.
• Confirm the excavator model and machine serial number.
• Compare the valve configuration and connection details.
• Provide photographs or assembly information to the supplier when necessary.
• Confirm compatibility before placing the order.

This approach is useful when purchasing xcmg excavator parts, particularly for machines that may have different component configurations across production periods.

Consider the Condition of the Hydraulic System

A replacement valve should be considered as part of the complete hydraulic circuit. Hydraulic oil cleanliness is especially relevant because particles can interfere with precision hydraulic components.

ISO 4406:2021 provides a standardized coding method for describing the quantity of solid particles in hydraulic fluid. Maintaining suitable fluid cleanliness can therefore form part of a broader maintenance strategy.

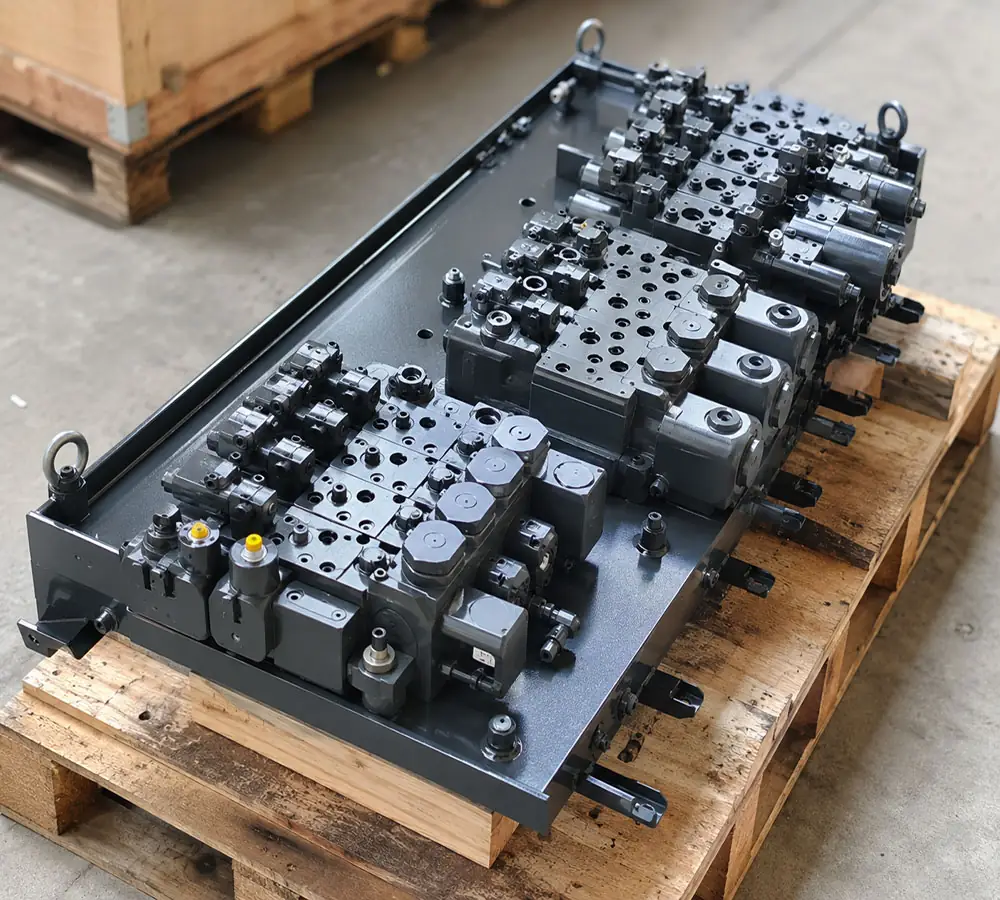

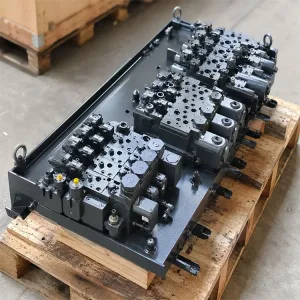

804001694 Main Control Valve for XCMG XE2000

For buyers looking for a specific replacement component, xcmg excavator parts need to be matched with reliable identification information. The 804001694 main control valve is listed by CNFORCE for the XCMG XE2000 excavator.

According to the product information, it is identified as a hydraulic control valve and is available in genuine OEM and replacement options. Buyers should specify their preferred part type when making an inquiry.

Product Specifications

The product page recommends checking the part number against the existing component, XCMG parts documentation, and the machine serial number before ordering. This is particularly relevant when production changes may result in revised components for different serial ranges.

As a main control valve, the component belongs to the part of the machine responsible for hydraulic flow control.

For maintenance teams and parts distributors, this makes correct identification essential. A buyer should confirm the machine model, serial information, part number, connection details, and required quantity before requesting a quotation.

What Should Buyers Confirm Before Ordering?

The following checklist can help reduce compatibility risks:

• Part number: 804001694
• Machine: XCMG XE2000 excavator
• Machine serial number or serial prefix
• Existing component markings and photographs
• Port and connection configuration
• Required quantity and preferred OEM/replacement option

Providing this information at the RFQ stage gives the supplier a clearer basis for technical confirmation and quotation.

Maintenance and Sourcing Tips for Long-Term Hydraulic Reliability

Regular maintenance should cover the complete hydraulic circuit rather than focusing only on individual hydraulic system parts. Hydraulic oil, filters, pumps, valves, cylinders, hoses, and connections all contribute to system performance.

Keep Hydraulic Oil Clean

Contamination can affect hydraulic components, particularly parts with closely controlled internal clearances. Appropriate filtration and clean handling practices can help reduce the risk of particles entering sensitive components.

Maintenance teams should follow the excavator manufacturer’s recommended oil, filtration, inspection, and replacement procedures instead of applying a generic maintenance interval to every machine.

Inspect Related Components

When a hydraulic valve shows abnormal behavior, technicians should also examine the surrounding system. A practical inspection can include:

• Checking hydraulic oil level and condition.
• Inspecting filters and contamination indicators where available.
• Reviewing pump and actuator performance.
• Checking hoses, fittings, and visible connections.
• Comparing machine behavior with service documentation.

This broader approach can help distinguish a valve problem from a wider hydraulic-system issue.

Work With a Reliable Parts Supplier

For international B2B procurement, technical verification is as important as price. A suitable supplier should be able to confirm part-number information, application details, availability, and the buyer’s preferred OEM or replacement option.

CNFORCE lists the 804001694 main control valve for the XCMG XE2000 and provides an RFQ process for buyers who need pricing, stock, or technical confirmation. Supplying the model, serial information, part number, and quantity can make the inquiry more efficient.

FAQ

Q1: What does a main control valve do on an excavator?

A: A main control valve directs and regulates hydraulic oil to different working circuits. It helps translate operator input into controlled hydraulic movement.

Q2: Can a faulty main control valve affect multiple excavator functions at the same time?

A: Yes. Because the main control valve manages hydraulic flow to multiple working circuits, a problem within the valve can potentially affect more than one function. Operators may notice abnormal response in several movements, especially when performing combined operations. However, similar symptoms can also result from the hydraulic pump, contaminated oil, filters, cylinders, or other components. A complete hydraulic-system diagnosis is therefore recommended before replacing the valve.

Q3: What should I check before buying XCMG excavator parts?

A: Confirm the part number, machine model, serial number, physical connections, required quantity, and whether you need a genuine OEM or replacement component. Photos of the existing part can also help with identification.

Q4: What information should I include in an RFQ for XCMG XE2000 main control valve 804001694?

A: Provide the part number 804001694, machine model XE2000, machine serial number or serial prefix, required quantity, and photographs or markings from the existing valve when available. It is also useful to confirm the port, connection, and flange configuration. CNFORCE states that these details can be used for pricing, stock availability, and technical confirmation, and that buyers can specify whether they require a genuine OEM or replacement option.

Conclusion

The right main control valve can help maintain reliable hydraulic control and coordinated excavator operation. For the XCMG XE2000, accurate part-number and machine verification can make replacement sourcing more efficient.

Looking for 804001694 Main Control Valve? Contact us with your machine details and required quantity for compatibility confirmation and a quotation.
