Introduction
The Sany SAT40C works in areas such as mines, quarries, and construction sites. The idling gear assembly is a small part inside the engine, but it but it is critical for keeping the timing system synchronized.
The idling gear assembly works every time the SAT40C is in operation, making it an important part of the engine timing system. Continuous use can gradually affect the condition of the gear, bearings, and seals, especially in mining and construction environments where machines often run for long hours.
Function & Structure of SAT40C Idling Gear Assembly
Before looking into common failures, it is helpful to know how the idling gear assembly works inside the SAT40C engine. As part of the timing system, the idling gear keeps the connected gears moving in the correct order. Although it does not drive the engine directly, its stable operation helps maintain proper timing and reduces unnecessary load on other components.
The assembly is made up of the idling gear, shaft, bearing or bushing, retaining parts, and sealing elements. Since these components operate together, wear in one area can gradually affect the performance of the entire timing system. For example, problems with the bearing may change gear movement, while damaged seals can lead to oil leakage.
The sealing condition around the assembly should also be considered during inspection. A properly fitted engine gasket helps maintain oil sealing inside the housing and protects internal parts from contamination. Checking the gear, supporting components, and sealing surfaces together allows technicians to identify potential issues earlier and avoid unnecessary repairs.
Common Failures and Diagnostic Symptoms
The failure of the idling gear assembly on the SAT40C does not happen suddenly. It wears out slowly. Maintenance teams can catch early warning issues and fix the parts in advance. This can prevent more serious secondary damage to the engine.
Gear Tooth Wear & Pitting
The idling gear teeth gradually wear in continuous engine operation. For SAT40C trucks working in mining and construction environments, heavy loads and frequent load changes can accelerate surface wear, causing issues such as tooth damage, pitting, abnormal noise, or vibration. Regular lubrication and inspections help identify problems early and prevent further damage to the timing system.
Bearing Clearance Failure
The bearing or bushing plays an important role in keeping the idling gear in the correct position during engine operation. Over time, continuous rotation, vibration, and changing loads can gradually affect the contact surfaces, causing excessive clearance between components.
Once the support parts become worn, the idling gear may no longer maintain stable movement within the timing system. This can lead to abnormal operating sounds, increased vibration, and uneven gear contact. Replacing damaged bearings or bushings at the right time helps protect the shaft and other timing components from further wear.
Lubrication Issue & Oil Leakage
Proper lubrication helps reduce friction and heat during operation, allowing the timing gear assembly to run more smoothly and maintain a longer service life.
Oil leakage may occur because of aging seals, damaged sealing surfaces, incorrect installation torque, or wear around the rotating shaft. Even a minor leak can gradually reduce lubrication efficiency, increasing operating temperature and accelerating component wear.
During routine maintenance, replacing damaged seals together with compatible Sany parts can help avoid repeated oil leaks.
On-Site Diagnostic Techniques
Before removing the idling gear assembly, technicians should first identify the possible source of the problem. Since noise, vibration, and oil leakage can also come from other timing components, a basic inspection helps narrow down the cause.
During inspection, technicians check engine sounds, vibration levels, oil leakage, and lubricant condition. Metal particles in the oil may indicate wear in the gear, bearing, or other internal parts and require further examination.
The table below lists common symptoms and possible causes.
| Symptom | Possible Cause | Recommended Action |
| Abnormal knocking noise | Gear tooth wear or pitting | Inspect gear surface and backlash |
| Engine vibration | Bearing or bushing wear | Measure shaft clearance |
| Oil leakage | Damaged seal or engine gasket | Replace sealing components |
| Metal particles in oil | Internal gear wear | Inspect the complete timing system |
Step-by-Step Replacement Guide for SAT40C Idling Gear Assembly
Step 1: Prepare the Machine and Work Area
Before starting the repair, park the SAT40C on flat ground and make sure the engine is completely shut down and cooled. Disconnect the battery and clean around the timing gear housing to keep dust and debris from getting inside during the job.
It is also a good idea to prepare all the needed tools, replacement parts, and sealing materials before taking anything apart. Having everything ready can save time and make the repair easier, especially when working on machines at mining sites.
Step 2: Remove Related Components
Technicians need to remove the covers and nearby components that limit access to the timing gear assembly. They should keep bolts and small parts in order to make the reassembly process easier.
During removal, technicians should inspect the sealing areas around the assembly. If the engine gasket has cracks, hardening, or oil leakage, replacing it during the repair can help maintain proper sealing performance.
Step 3: Inspect and Remove the Old Assembly
After gaining access to the timing gear area, the damaged idling gear assembly can be removed for a detailed inspection. The cause of failure is not always limited to the gear itself, so the shaft, bearing or bushing condition, and lubrication system should also be checked during the process.
The condition of the worn parts often provides clues about how the failure developed. Tooth pitting, uneven wear marks, or excessive movement may point to long-term operating stress or insufficient support inside the assembly. If the remaining timing components are still within normal service condition, replacing the faulty assembly alone is usually a more practical solution than changing the entire system.
Step 4: Install and Align the Replacement Assembly
Technicians should compare the new assembly with the original part before installation. The dimensions and mounting position need to match the equipment requirements.
Correct alignment helps prevent abnormal noise and uneven wear after installation. Using suitable Sany parts can improve compatibility and reduce adjustment work during replacement. After installation, technicians should turn the assembly by hand to check movement and confirm that all fasteners are properly tightened.
Step 5: Perform Testing After Replacement
After completing the installation, starting the engine and checking the repaired area carefully is the priority of technicians. The process includes observing any unusual noise, vibration, or oil leakage during idle operation.
The machine can then be tested under normal working conditions. A final inspection helps confirm that the repair is complete before the SAT40C returns to daily operation.
Product Case & Replacement Solutions: CN Force Parts
A complete engine repair involves more than replacing damaged parts. Technicians also need to check nearby seals, as aged or damaged sealing components can lead to oil leaks after the repair. A comprehensive inspection of the relevant areas during maintenance can help identify potential problems in a timely manner, avoid repeated repairs, and help the machine maintain a reliable and efficient operating state.
The CN Force Parts Oil Pan Combination Group fits the Sany SAT40C perfectly. It is the ideal choice for major engine maintenance and lower seal system repairs. This complete set restores great sealing performance and makes maintenance work simpler and faster.
As a professional machinery parts supplier, CN Force Parts offers durable, well-fitted construction equipment parts. Most fleet managers choose to replace matching parts together during overhauls. This method cuts repeated maintenance work and keeps machines running stably for longer.
Case Study: SAT40C Maintenance in Heavy-Duty Mining
During routine inspections, a mining operator found oil leakage and increased vibration on several SAT40C trucks. Further checks revealed wear in the idling gear assembly and aging oil pan sealing components.
To address the issue, the maintenance team installed the 160102130004A054 Oil Pan Combination Group from CN Force Parts and inspected nearby components before putting everything back together. The trucks were then tested and returned to normal operation with no additional issues found. The case also shows why checking related parts during major repairs can help avoid repeated maintenance.

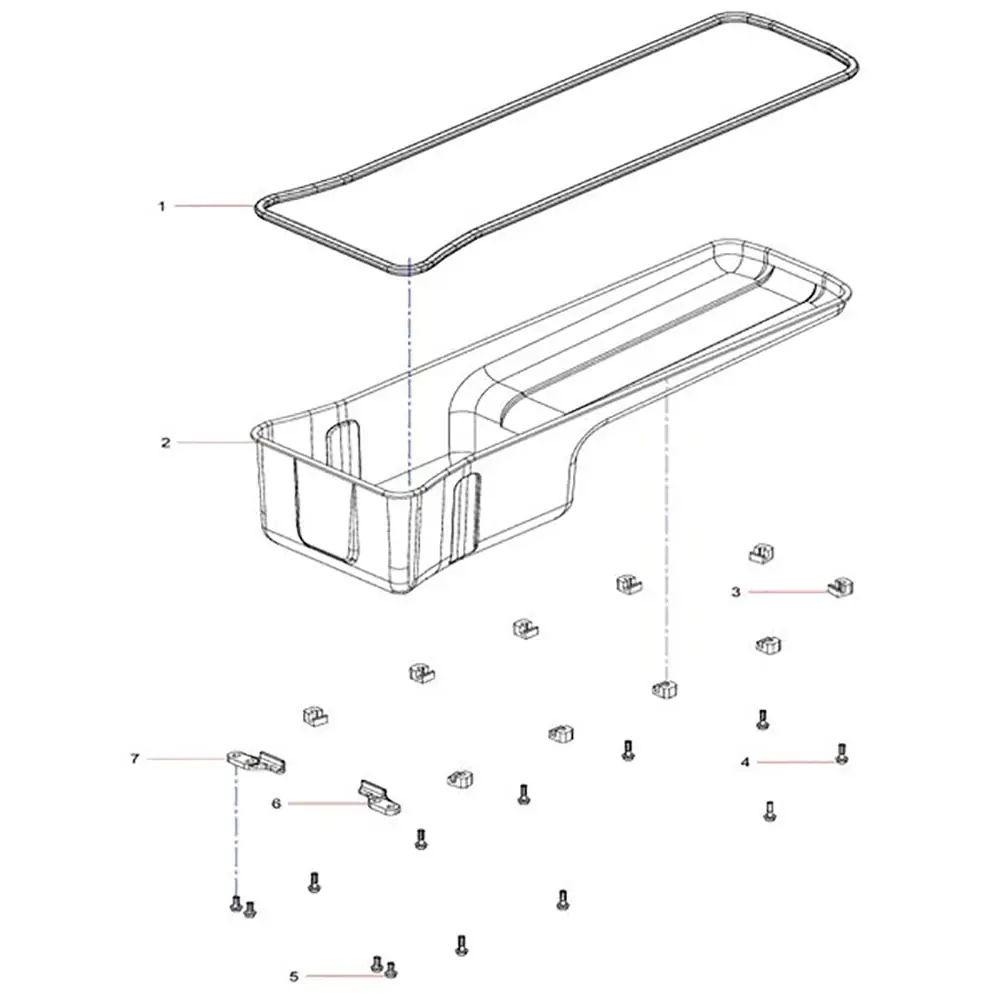

160102130004A054 Oil Pan Combination Group Core Spec Table
160102130004A054 Oil Pan Combination Group Core Spec Table
| Item | Details |
| Full Part Number | 160102130004A054 |
| Fit Machine | Sany SAT40C Articulated Dump Truck |
| Kit Contents | Oil pan assembly, sealing gasket, support blocks, all matching flange bolts |
| Pan Material | Thick impact-resistant steel |
| Gasket Material | High-temperature elastomer |
| Core Advantage | Even bolt force distribution to stop flange warping & permanent oil leaks |
| Supply Option | Full set or single separate spare parts |
Frequently Asked Questions
How often should the Sany SAT40C idling gear assembly be inspected?
A: There is no fixed inspection interval, as working conditions vary. In general, check the idling gear assembly during regular engine maintenance or when abnormal noise, vibration, or metal particles are found. Heavy-duty or dusty operations may require more frequent checks.
Do I need to replace the engine gasket every time the idling gear is serviced?
A: Not necessarily. If there is no damage in your original engine gasket, you can keep using it. But if you have already removed the gasket, or it is old, deformed, and leaking oil, you’d better install a new one during reassembly. This simple operation can ensure tight sealing and prevent oil leaks later on.
What are the risks of using low-quality aftermarket Sany parts?
A: A replacement part may look similar to the original, but differences in size, material, or fitment can affect installation and long-term performance. When servicing the SAT40C, technicians should focus on compatibility rather than only cost. Choosing suitable Sany parts from a reliable machinery parts supplier helps ensure proper installation and stable operation.
Conclusion
The idling gear assembly is an important component of the Sany SAT40C engine. It helps the engine keep correct timing and run smoothly.
Unusual noise, vibration, and oil leakage are common warning signs. Technicians can find problems early through regular inspections and avoid larger repairs.
Correct replacement steps and regular seal checks can make maintenance easier and reduce machine downtime. Choosing suitable Sany parts also helps ensure proper installation and stable operation.
