How to Solve Moisture and Contamination Issues for Heavy Mining Excavators?

Market Background: Why are the requirements for fuel purification so stringent for mining equipment?

Mining excavators often work in extreme environments, such as high-humidity coal seams, dusty quarries and extremely cold or hot areas. These harsh conditions make diesel fuel easy to condense moisture and mix with dust and impurities, which poses a continuous threat to core components of the engine. Fuel pollution has become the main preventable factor leading to unplanned equipment shutdown and high maintenance costs. Market data clearly reveals the urgent demand and huge investment of the industry for efficient fuel purification solutions. According to Market Research Future’s”Mining Equipment Aftermarket Research Report (2024-2029),” the fuel filtration systems are the fastest-growing segment. (Source: https://www.marketresearchfuture.com/)

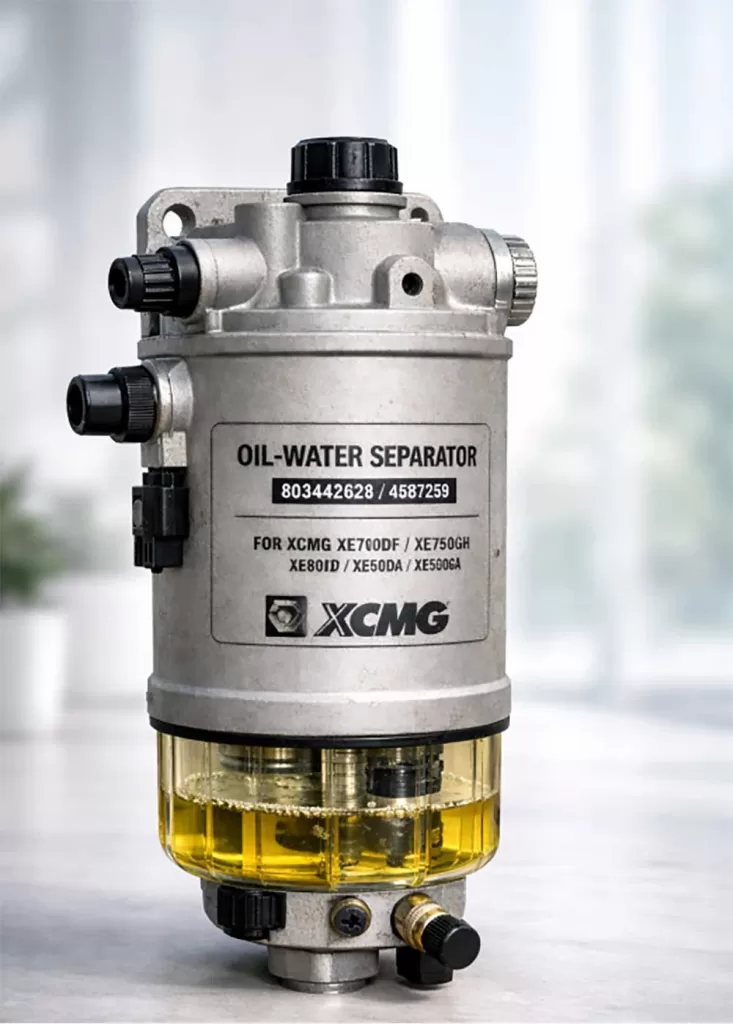

The 803442628, designated for specific XCMG mining excavator models, is a precision component that stands guard at the front line of engine protection. The filter element is more than an accessory; it is a critical safety component integrated into the vehicle fuel system, which aims to cope with the harsh service cycles in mining applications and ensure the smooth operation of fuel system components and engine subsystems.

Unique Advantages and Specifications

The 803442628 filter sets a new benchmark for fuel purification in heavy equipment spare parts. Its design is supported by quantifiable laboratory and field test data, making it a reliable choice for fleet managers.

Major Performance Specifications

• Exceptional Water Separation: Utilizing a patented dynamic cyclone+coalescence composite technology, it achieves a water separation efficiency of ≥ 98% for fuel with ≤ 0.8% water content. In the laboratory tests, it separated 1200 ml of water from 100 liters of fuel oil, and the final water content was less than or equal to 0.02%, far exceeding industry averages. (Data source: XCMG Laboratory Test Report, 2025).
• High-Efficiency Filtration: The integrated 10 μm composite filter media delivers a filtration efficiency of ≥99.5% for particles ≥5 μm, a performance verified under the GB/T 14041-2019 standard, representing a 4% improvement over comparable products. (Data Source: GB/T 14041-2019 Standard Conformance Test).
• Optimal fluid dynamics: Under the rated flow rate of 200 L/h, the low pressure loss of only 0.06 MPa is maintained to ensure the fuel flow efficiency retention rate is ≥ 99%. This stability keeps engine supply pressure between 0.28–0.32 MPa, and limits the power drop to ≤ 0.3%.
• Sturdy and durable: It can withstand 30 high and low temperature cycles (-45℃/4 hours → 130℃/4 hours) in a wide working temperature range from -45℃ to 130℃ without structural or sealing failure. The test of simulated mining condition shows that the service life is 2,500 hours, which is 50% longer than the average life of competitors.
• Solid structure: The shell is made from ADC 12 die-casting aluminum alloy (7 mm wall thickness), and its compressive strength is ≥ 3.0 MPa. It can withstand the vibration test of 200 hours under the acceleration of 12 g (frequency of 10-50 Hz), which is very suitable for the harsh and vibrating environment of an excavator.

Core Technology and Patents

• Dual-Stage Separation: The patented dynamic cyclone (CN 202420658765.2) first spins fuel at ≥ 3000 rpm, separating bulk water and large particles via centrifugal force. The fuel then passes through a coalescing filter layer treated with 20% basalt fiber and 8% nano-silica, which agglomerates micron-sized water droplets for easy drainage. Compared with the standard media, the oil resistance of this composite material is improved by 60%, and separation efficiency is improved by 30%.
• Intelligent Monitoring: When the accumulated water reaches 200 ml, the integrated capacitive water level sensor triggers the alarm of the main engine, and the response time is ≤ 1 second (patent CN 202410307890.8) If the pressure drop exceeds 0.12 MPa, the pressure port at the top can automatically send out a jam alarm.
• Fast-Install & Dual Drain: A “snap-fit+positioning pin” quick-install structure allows for a one-person swap in ≤ 30 seconds.

Applications: Where is it most needed?

• Open-Pit Coal Mining (70%): Essential for operations in high-moisture coal seams. The main customers include Harwusu mine in Shenhua, China and Australian coal mines in BHP Billiton. The high humidity and condensation in these places make excellent water separation non-negotiable for protecting the excavator engine.
• Metal mining (22%): It is used by clients such as Zijin Mining and Escondida copper mine in Chile for hard rock mining for copper, gold and other metals. High intensity and high frequency operation requires stable fuel pressure and purity to maintain power output.
• Construction of Energy and Chemical Industry (8%): It is deployed in oilfield development and related projects, such as projects in Daqing Oilfield and Saudi Aramco. In these projects, fuel quality changes greatly and water inflow is common.

Case Study: Solving a High Cost Problem in Daqing Oilfield

A construction team in Daqing Oilfield is faced with a serious problem: 50 XCMG XE1300C excavators work 18 hours a day, and the water content of fuel used is 0.6%. Their original separator efficiency was only 85%, resulting in 40% injector corrosion rates after 1,500 hours. This led to the replacement of 15 sets of syringes per machine every month and the stoppage of 12 hours. This solution was to upgrade to 803442628 separator. The result: the water separation efficiency jumped to 98%, the water content of fuel was controlled below 0.02%, and the life of the filter was extended to 2,600 h. The corrosion of injectors has dropped to 3%, and only 2 sets need to be replaced every month. Downtime of each machine has been reduced to 1 hour, and availability has soared from 80% to 97%, saving more than 2.2 million yuan in maintenance costs every year.

Compare with Major Competitors

The table below highlights the clear advantages of the XCMG 803442628 over comparable products from leading brands, focusing on performance, cost, and lifespan.

Frequently Asked Questions

Q 1: The alarm lamp of separator is on. How do I solve this problem?

A: First, check the alarm type on the host monitor. The high water level alarm requires you to open the manual drain valve until the alarm is lifted. A “high pressure” alarm indicates potential jam. If the alarm still exists after draining water, please check the wiring of water sensor. Also, verify that the fuel’s water content does not exceed recommended limits.

Q 2: When it is extremely cold, the drain valve freezes. What should we do?

A: Start the electric heating jacket (if equipped, part of extreme environment kit) on the drain valve for 10 minutes. Alternatively, use a hot air gun with a low setting (≤60°C) to gently melt the valve. Adding anti-gelling agents to the fuel tank can prevent it from happening again. For permanent solutions in this environment, it is recommended to use an antifreeze drain valve (part number 803442628-02).

Q 3: In the high debris environment, the heavy equipment filters is blocked too quickly (< 1000 hours). How can I prolong its life?

A: Install a primary fuel prefilter (part number 803442628-P) to capture larger particles. Increase the frequency of manual drainage, and remove accumulated water and sediment more frequently (for example. Every 3 days, not once a week). Clean the cyclone chamber regularly according to the maintenance plan (every 1500 hours is recommended).

Q 4: After replacing the separator, the engine is still underpowered. Is there any problem?

A: Make sure the filter is installed in the correct flow direction (according to the arrow on the housing). Check whether the condensed filter media is damaged-a broken filter will not separate water and may pass through debris. Inspect the entire fuel line for other blockages or kinks.

Q 5: Can the coalescing filter element be cleaned and reused?

A: It is highly recommended not to. This media has a special gradient structure designed for one-time use. Cleaning will destroy the fine fiber matrix, reducing water separation efficiency by more than 70%. This can cause water and pollutants to enter the excavator engine, which may lead to injector failure, pump sticking, or even worse. The cost of a single maintenance may exceed 100,000 yuan, far exceeding the cost of a new filter element.

Conclusion

For operators of XCMG XE series mining excavators, the investment of protecting millions of dollars begins with protecting the engine. The 803442628 Oil-water separator filter element 4587259 is a scientifically engineered, robustly tested, and certified solution that directly addresses the leading cause of fuel system failure. By providing industry-leading separation efficiency, longer service life and intelligent monitoring, it minimizes unplanned downtime, reduces total operating costs, and maximizes equipment usability. When selecting spare parts for heavy equipment like this, choosing high-performance parts designated by OEM is not an expense, but a strategic investment in reliability and productivity for the most difficult mining applications on earth.
