Product Introduction

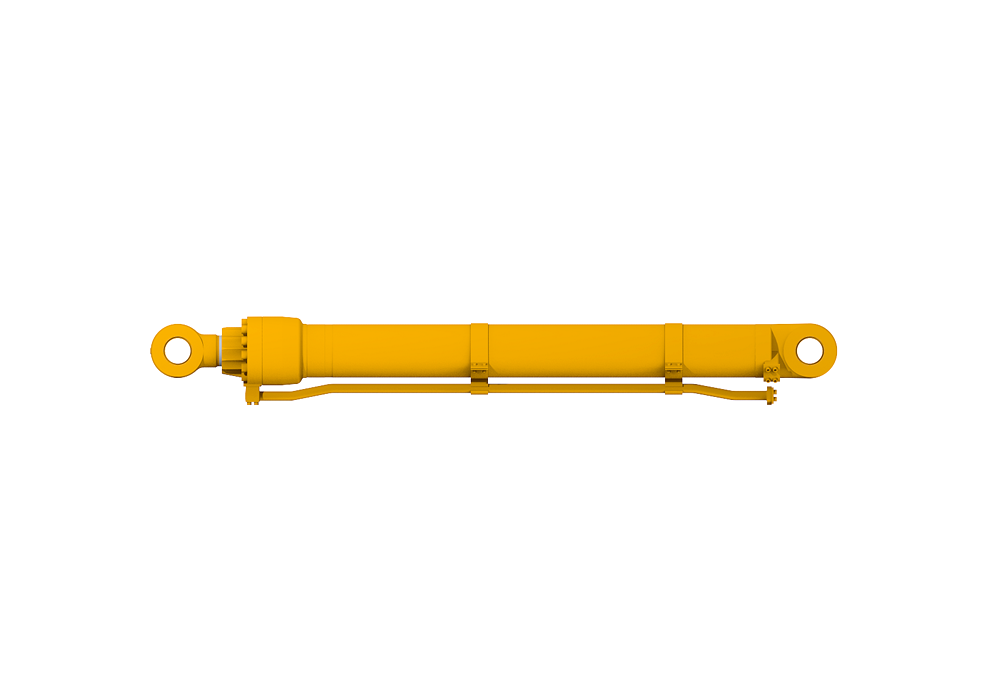

XCMG XE2000 Mining Excavator 804009182 Left Bucket Cylinder (Original Part No.: 804009182) is a dedicated driving component for the left bucket custom-designed for the 192-ton XE2000 mining hydraulic excavator. As the “precise power arm” that enables the bucket to perform core actions such as excavation, crushing, and unloading, it directly determines the operation accuracy, digging force, and movement smoothness of the left bucket, and is a key hydraulic actuator for the whole machine to complete heavy-duty mining and material loading in open-pit mines.
Based on decades of mining accessory R&D experience of XCMG Hydraulics, combined with the force characteristics and operating conditions of the XE2000 left bucket, this cylinder adopts an integral forging cylinder tube, high-strength alloy piston rod, and mining-specific composite sealing system. Integrating computer simulation design and load sensing technology, it can accurately collect operation data, optimize parameters, reduce operation impact, and achieve stable operation under full working conditions. It is suitable for extreme mining environments with -40℃ to 100℃, high dust, strong impact, and high corrosion, and can stably output strong power. Cooperating with the 8-14m³ large bucket capacity of the XE2000, it efficiently completes heavy-duty operations such as ore stripping, mining, and loading, and is a core accessory to ensure high attendance and operating efficiency of the whole machine, with reliability reaching the advanced level of the industry.
Core Technical Parameters (804009182 Left Bucket Cylinder)
Part Number: 804009182 (Original factory exclusive, only suitable for left bucket)
Compatible Model: XCMG XE2000 Mining Excavator (192-ton class, 810kW power, 35MPa high-pressure hydraulic system)
Structure Type: Single-acting telescopic hydraulic cylinder (exclusively adapted to left bucket, symmetric layout with right bucket cylinder)
Bore: 380mm (adapted to the single-side force demand of the left bucket, with outstanding impact resistance)
Rod Diameter: 260mm (high-strength alloy steel, treated by quenching and tempering + nickel-chromium double-layer electroplating, anti-bending and wear-resistant)
Stroke: 2800mm (accurately matches the opening and closing angle of the left bucket, meeting the maximum digging depth and unloading height)
Working Pressure: 35MPa (matches the high-pressure hydraulic system of the whole machine, no pressure attenuation during heavy-duty excavation)
Max Thrust: ≤4200KN (strong thrust support, easily coping with hard rock and dense ore excavation)
Max Pull Force: ≤2100KN (stable retraction, tight bucket closure, no residue during unloading)
Operating Temperature: -40℃~100℃ (stable start-up and operation in extreme cold and high temperature environments)
Seal Configuration: Mining-specific high-temperature resistant and wear-resistant combined seal (main seal + guide ring + dust seal + buffer seal), suitable for high-pressure and high-dust working conditions
Support Structure: Large-span dual-support low-friction self-lubricating support technology, combined with a new generation of self-lubricating bushings, with high load-bearing capacity and low friction, extending the replacement cycle
Surface Treatment: Nickel-chromium double-layer electroplating on piston rod, precision honing on cylinder inner wall, corrosion-resistant, scratch-resistant and collision-resistant
Application Scenarios and Working Condition Advantages
1. Core Application Scenarios
Single-side excavation and ore stripping of left bucket in open-pit coal mines and metal mines (iron, copper, gold mines)
Coordinated loading and alignment unloading operations between the left bucket and 100-150 ton mining trucks in large mines
Continuous operation of the left bucket in extreme environments such as plateaus (above 3000m), extreme cold (-40℃), and high temperature (above 50℃)
Severe mining conditions with high dust, strong impact, hard rock excavation, and 24-hour continuous heavy-duty operation
Various heavy-duty mining scenarios with single operation of left bucket and coordinated operation of double buckets
2. Exclusive Working Condition Advantages
Precise Adaptation and Balanced Force: Specifically designed for the XE2000 left bucket, it is accurately matched with the left bucket connecting rod and rocker arm, solving the problem of uneven force during single-side operation, avoiding eccentric wear and jamming, ensuring precise and controllable opening and closing actions of the bucket, and improving operation efficiency.
Heavy-duty Wear Resistance and Strong Impact Resistance: The cylinder tube adopts integral forging and overall heat treatment process, with fatigue resistance increased by 40%, which can withstand the instantaneous impact force of hard rock excavation; the high-strength material of the piston rod combined with double-layer electroplating, the surface hardness reaches above HRC60, resisting gravel collision and dust erosion in mines, and the service life is 60% longer than that of ordinary cylinders.
Reliable Sealing and No Leakage: Adopting mining-specific composite sealing system, it is high-temperature resistant, anti-aging and high-pressure resistant, which can effectively resist seal failure caused by hydraulic oil deterioration and dust intrusion, eliminate internal and external leakage, and ensure no power loss; at the same time, the sealing structure is optimized to significantly improve the service life of the sealing system.
Outstanding Lateral Load Resistance: Large-span dual-support low-friction self-lubricating support technology effectively offsets the lateral stress during left bucket excavation, avoids piston rod eccentric wear and cylinder tube strain, adapts to complex force conditions of irregular material excavation in mines, and ensures trouble-free long-term operation.
Efficient Energy Saving and Convenient Maintenance: Optimized flow channel design, small hydraulic oil flow resistance, 15% improvement in power transmission efficiency, and reduced energy consumption of the whole machine; the surface of the piston rod is smooth and easy to clean, the seal is easy to disassemble, daily maintenance does not require complex tools, and routine inspection every 1000 hours is sufficient, reducing downtime for maintenance.
Common Faults, Troubleshooting and Maintenance
As the core power component for left bucket operation, the 804009182 left bucket cylinder is in single-side heavy load and frequent action working conditions for a long time. The common faults and targeted troubleshooting and maintenance schemes are as follows. The troubleshooting follows the principle of “external first, internal second, simple first, complex second” to avoid blind disassembly:
1. Bucket Not Closing Tightly, Unloading Residue (Internal Leakage)
Symptoms: The left bucket cannot be fully clamped after closing, materials are easy to remain; the bucket slightly retracts during heavy-duty excavation, and the digging force decreases.
Causes: Aging and wear of piston main seal; scratches on piston rod leading to excessive seal clearance; cylinder inner wall strain causing hydraulic oil internal leakage; impurities mixed in hydraulic oil accelerating seal wear.
Troubleshooting: Replace the original 804009182 left bucket cylinder special repair kit (including main seal, guide ring and dust seal); repair piston rod scratches by laser cladding, repair slight cylinder strain with diamond reamer, and replace cylinder for severe damage; replace mining-specific hydraulic oil, clean hydraulic filter element, remove system impurities, and avoid re-wearing seals.
2. Slow Movement and Weak Digging of Left Bucket
Symptoms: The opening and closing speed of the left bucket is significantly slow, unable to break through resistance during hard rock excavation, and the left bucket responds lagging during combined actions.
Causes: Deteriorated hydraulic oil and clogged filter element leading to insufficient oil supply; severe internal leakage of cylinder causing power loss; insufficient hydraulic system pressure (not reaching the 35MPa standard value); blocked oil circuit leading to unsmooth hydraulic oil circulation.
Troubleshooting: Replace mining-specific anti-wear hydraulic oil and return oil filter element; check cylinder internal leakage (repair if settlement >5mm/min under rated pressure); calibrate hydraulic system pressure to 35MPa; dredge blocked oil circuit to ensure smooth hydraulic oil circulation, and check the oil supply of hydraulic pump to eliminate pump failure.
3. Oil Leakage at Piston Rod (External Leakage)
Symptoms: There is oil film and oil dripping on the surface of the piston rod, and long-term leakage leads to excessive consumption of hydraulic oil, affecting operation continuity.
Causes: Damaged dust seal and rod seal; scratches on piston rod wearing seals; loose end cover bolts leading to poor fit of sealing surface; aging and failure of gasket.
Troubleshooting: Replace rod seal and dust seal, and check the surface state of piston rod synchronously, repair scratches in time; tighten end cover bolts to standard torque; replace aging gaskets to ensure tight fit of sealing surface; check hydraulic oil quality to avoid impurities accelerating seal wear.
4. Abnormal Noise and Vibration of Cylinder Movement
Symptoms: When the left bucket is opened and closed, the cylinder makes a “hissing” air flow sound or “clicking” mechanical collision sound, accompanied by bucket vibration and unsmooth movement.
Causes: Air mixed in hydraulic system; impurities inside the cylinder hindering piston movement; worn guide sleeve with excessive fit clearance; bent piston rod with uneven force; buffer device failure with no buffer at the end of stroke.
Troubleshooting: Open the cylinder air release valve to discharge internal air, and reciprocate 5-10 times to ensure thorough air discharge; disassemble and clean the cylinder and piston to remove internal impurities; replace worn guide sleeve and apply special lubricating grease; straighten the bent piston rod and adjust the fit clearance; check the buffer device and replace failed components to avoid collision between piston and end cover causing abnormal noise.
5. Piston Rod Coating Peeling and Rusting
Symptoms: The piston rod surface coating peels off, rust spots appear, the seal wears quickly, accompanied by oil leakage.
Causes: Erosion of mine dust and acid-base substances; severe collision of piston rod causing coating damage; long-term non-cleaning leading to impurity accumulation and coating wear.
Troubleshooting: Slight rust and coating damage can be treated by polishing and re-plating; replace the piston rod when severe; clean the piston rod surface regularly to avoid impurity accumulation, avoid collision between piston rod and hard objects during operation, and extend the service life of the coating.
Key Points for Purchase and Replacement
1. Verify the original part number804009182. This cylinder is exclusively adapted to the left bucket of XCMG XE2000 and cannot be mixed with the right bucket cylinder (there are differences in force characteristics and installation dimensions between left and right bucket cylinders), avoiding jamming and component damage caused by mismatching.
2. When replacing, replace the original seal repair kit, hydraulic oil and return oil filter element synchronously, and use XCMG special mining anti-wear hydraulic oil to ensure seal adaptability and hydraulic system cleanliness, avoid impurity contamination of the new cylinder and affect service life.
3. Strictly control the straightness of the piston rod (error <0.05mm/m) during installation, ensure accurate docking with the left bucket connecting rod and rocker arm, avoid eccentric wear and abnormal noise caused by installation deviation; the joint installation angle deviation shall not exceed 3°, and tighten the bolts to the standard torque in cross order to prevent leakage.
4. Daily Maintenance: Check the seal state, piston rod surface cleanliness and coating integrity every 500 hours; replace hydraulic oil and filter element every 1000 hours; check the cylinder internal leakage and movement smoothness every 2000 hours, timely troubleshoot potential faults, and extend the cylinder service life.
With original quality as the core, combined with the exclusive needs of single-side operation of the left bucket, XCMG 804009182 Left Bucket Cylinder optimizes the structural design and manufacturing process, and has the advantages of strong power, precise control and extreme durability. It effectively solves the pain points of heavy-duty excavation of the left bucket in mines, ensures efficient and stable operation of the XE2000 mining excavator, and is the only original choice for the left bucket hydraulic accessories of XCMG XE2000 mining excavator.
