Uncompromising Quality: Ensuring Mining Productivity with XCMG XE750G Filter Element 804401246

Introduction

Mining does not mess around when it comes to spending money. We are talking about machines that cost millions, running nonstop in conditions that would wreck anything less built for the job. One small part fails and the whole operation stops — and every hour of downtime burns through tens of thousands of dollars.

Fuel is another headache that operators deal with daily. You would think refined diesel is clean enough, but it is not. There are always tiny particles floating in it, water, even microbial stuff growing in the tanks. That matters a lot when you are running common rail engines that push fuel through at over 1600 bar. One speck of dirt in there and you are looking at damaged injectors, bad spray patterns, worse combustion — and eventually a very expensive repair bill.

That is what the 804401246 diesel fine filter element was built for. XCMG Group made it as an OEM part for the XE750G mining excavator, not some off-brand swap you throw in and hope for the best. It is a matched component, designed to fit that machine’s fuel system from the ground up. Many international machinery parts suppliers now include this filter in their catalogues because it addresses real-world problems faced by operators in diverse regions.

The Role of Diesel Fine Filtration in Heavy Equipment

Diesel engines used in mining and construction rely on precise fuel delivery. Injectors operate at extremely high pressures, often exceeding 1600 bar. At these levels, even tiny particles can erode metal surfaces, disrupt spray patterns, and reduce combustion efficiency.

A heavy equipment filter serves as the last line of defense between contaminated fuel and sensitive engine components. By capturing particles and separating water, the filter helps maintain consistent power output, improves fuel economy, and reduces harmful emissions.

Research published by the Society of Automotive Engineers indicates that up to 40% of fuel system failures in off-highway machinery are linked to inadequate filtration (SAE Technical Paper 2021-01-0256). This statistic underscores the importance of selecting filters that meet or exceed OEM specifications.

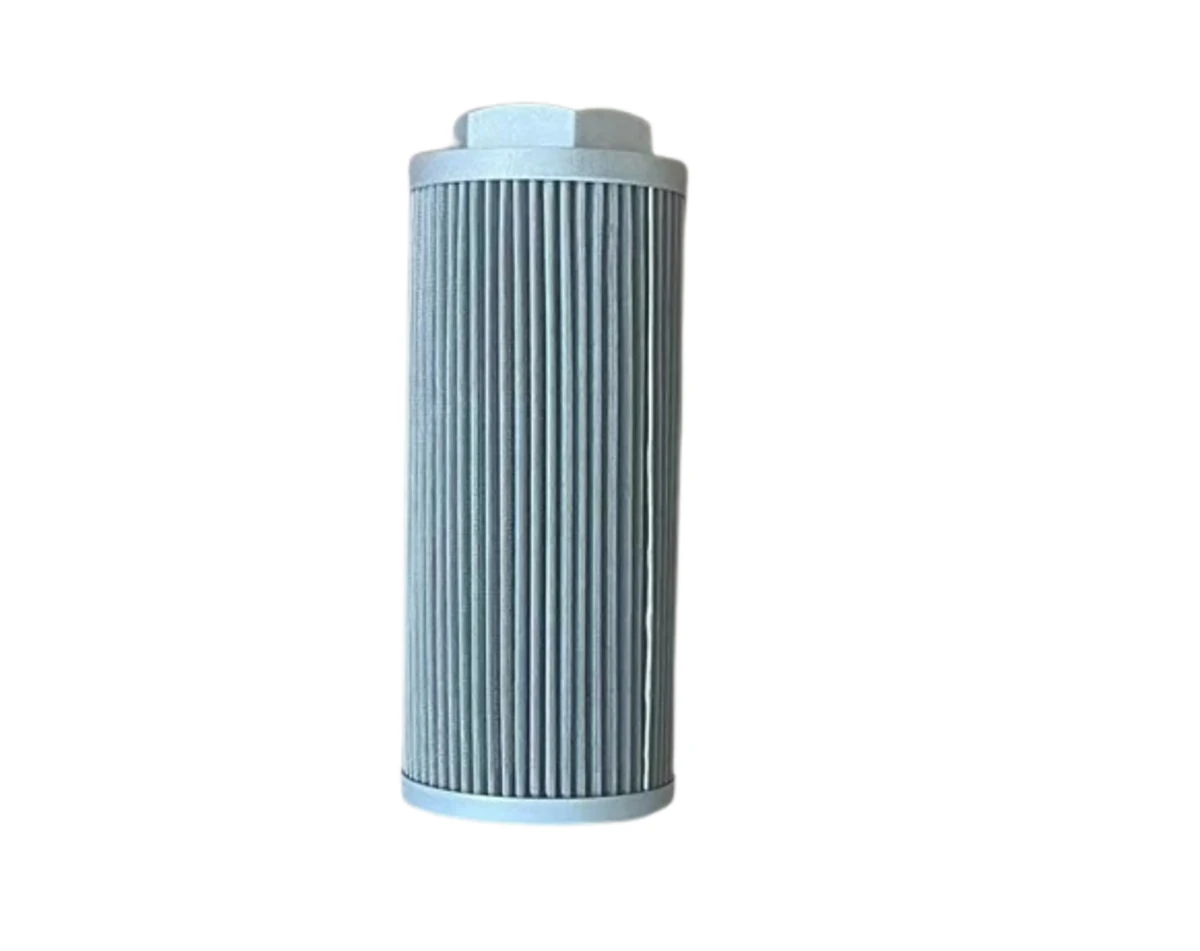

Product Overview: 804401246 Filter Kit

A filter kit typically includes the filter element itself, along with necessary seals, O-rings, and sometimes installation hardware. The 804401246 kit is purpose-built for the XCMG XE750G excavator, ensuring exact dimensional tolerances and material compatibility.

Key characteristics include:

• Direct OEM specification for XE750G series
• Enhanced materials for extreme temperature resistance
• Hydrophobic media for superior water separation
• High dirt-holding capacity for extended service intervals

Technical Specifications and Standards

Project Applications

1. Open-Pit Coal Mining

Open-pit coal mining accounts for 45% of total consumption.In the mining regions of Shanxi, Inner Mongolia, and Shaanxi, XE750G excavators operate around the clock without interruption. Day in and day out, these machines shoulder the heavy burden of demanding excavation and rock-breaking tasks. Fuel quality in these areas is often poor, and dust concentrations are extremely high. However, the 804401246 filter boasts a rated service life of up to 6,000 hours and a dirt-holding capacity of 120 grams; this translates to fewer instances of equipment downtime and a lower operating cost per hour. Any machinery parts supplier serving Shanxi or Inner Mongolia coal mines should stock this filter as the top item in every filter kit.

2. Metal Mining & Aggregate Processing

Metal mining (including iron, copper, and gold mines) accounts for approximately 30% of this sector. The 804401246 filter offers a perfect solution to two major challenges faced by mining operations in Shandong, Yunnan, and Xinjiang: high dust levels and high humidity. Its surface features a fluorine-based hydrophobic coating that effectively repels moisture. Simultaneously, its filtration efficiency—reaching as high as 99.5%—blocks metal dust particles, preventing them from infiltrating the fuel injection system. For heavy equipment filters in metal mines, this is the standard to beat.

Sand and aggregate processing operations make up the remaining 20%. Quarries in Hubei, Anhui, and Sichuan engage in continuous crushing and truck-loading operations day and night. Since this heavy-duty equipment operates with virtually no downtime, the filters installed within them must possess an equally robust capacity for high-intensity work. The 804401246 filter meets this exacting requirement precisely. With a burst pressure rating of up to 20 bar and a service life extending to 6,000 hours, it stands as the most reliable choice for heavy-duty equipment filtration within the aggregate processing sector.

3. Specialized Operations

The remaining 5% covers cement mines, port loading terminals, and other niche heavy-load sites. These operations share one trait: they run equipment hard and cannot afford unexpected downtime. The 804401246 fits the XE750G and several other XCMG models used in these settings. Its wide temperature range from -40°C to 120°C covers both northern winter ports and southern cement quarries. While this segment is small, the filter performs the same way. A trusted machinery parts supplier will include the 804401246 in every filter kit regardless of the application. XCMG Group built this filter for the toughest jobs on earth. It works everywhere.

Frequently Asked Questions

Q1: What is the service interval for the 804401246 filter element?

A: For heavy-duty mining conditions, replacement is recommended every 6,000 hours; for standard construction conditions, it can be extended to 8,000 hours. In environments with high dust or poor-quality diesel, it is recommended to replace it early at 4,000–5,000 hours.

Q2: Which XCMG excavator models is this filter compatible with?

A: It is primarily designed for XE750G, XE750GK, and XE900D mining excavators. Some XE490G and XE600G models can be adapted using a mounting adapter (transfer base).

Q3: How do I bleed the air when replacing the filter element?

A: After replacement, loosen the air vent bolt (bleeder screw) on the filter base. Operate the hand primer pump until the fuel flows out without air bubbles. Then, tighten the bolt. This prevents air from entering the fuel system, which can cause rough idling.

Q4: Can I use other filter models to substitute for the 804401246?

A: Not recommended. The 804401246 is exclusively matched for the XE750G. Its dimensions, filtration precision, and bypass valve cracking pressure are all custom-designed. Using substitutes may lead to filtration failure or engine damage.

Q5: What are the symptoms of a clogged filter element?

A: 1. Decrease in engine power and sluggish acceleration; 2. Fuel system warning lamp illuminates; 3. Differential pressure sensor value reaches ≥0.8 bar; 4. Fuel consumption increases by more than 10% compared to normal levels. Regular inspection and timely replacement with high-quality heavy equipment filters can prevent these issues from escalating into costly engine repairs.

Conclusion

The XCMG XE750G Excavator Diesel Fine Filter Element (Model: 804401246) has emerged as the preferred choice among global machinery parts suppliers, distinguished by its precision-engineered design, robust construction, and exceptional performance.

For mining operators, investing in high-quality equipment filter elements is far more than a routine maintenance task; it is a strategic decision of significant importance. By adopting advanced filtration solutions—such as the Model 804401246—enterprises can confidently navigate the multifaceted challenges inherent in modern mining operations, thereby securing an unassailable position amidst fierce market competition.

If you are interested, please contact us today; we are ready to provide professional solutions tailored to your specific project needs!
