Product Introduction

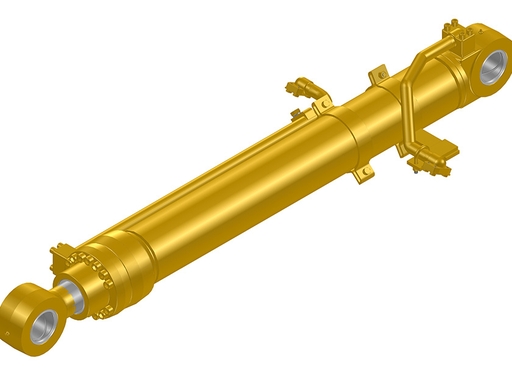

XCMG XE2000 mining excavator 804009181 boom cylinder, with original part number 804009181, is a core hydraulic actuator tailor-made by XCMG Group for the 200-ton XE2000 mining hydraulic excavator. As the “steel arm” driving the boom lifting and lowering, it undertakes the core power output task for heavy-duty mining excavation and material handling.
Built on decades of XCMG hydraulic technology accumulation, this cylinder integrates mining-specific design concepts and high-end manufacturing processes. It adopts an integral forging cylinder tube, high-strength chrome-plated piston rod, multi-stage sealing system, and low-friction self-lubricating support structure. It can continuously and stably output a maximum thrust of 4847KN and pull force of 2370KN under severe working conditions such as extreme temperatures (-40℃ to 100℃), strong dust, and high impact in open-pit mines, coal mines, and metal mines. It ensures efficient operation of the XE2000 excavator with an 8-12m³ large bucket capacity, making it a key core component for ultra-large mining excavators to achieve high attendance and operating efficiency.
Core Technical Parameters (804009181 Boom Cylinder)
- Bore: 420mm (adapted to 200-ton heavy-duty demands)
- Rod Diameter: 300mm (high-strength alloy steel, anti-bending and impact-resistant)
- Stroke: 3200mm (meets maximum digging radius and dumping height of XE2000)
- Working Pressure: 35MPa (ultra-high pressure design, matching mining heavy-duty hydraulic system)
- Max Thrust: ≤4847KN (strong power support, easy lifting under full load)
- Max Pull Force: ≤2370KN (stable retraction, smooth movement without jamming)
- Operating Temperature: -40℃~100℃ (adapted to extreme cold and hot mining environments)
- Seal Configuration: Mining-specific combined seal (main seal + guide ring + dust seal)
- Compatible Model: XCMG XE2000 Mining Excavator (192-ton class, 810kW power)
Application Scenarios and Working Condition Advantages
1. Core Application Scenarios
- Large-scale stripping and excavation in open-pit coal mines and metal mines (iron, copper, gold mines)
- Ore loading and transportation in large mines (adapted to 100-150 ton mining trucks, filled in 5-7 buckets)
- Mining construction in extreme environments such as plateaus, extreme cold, and high temperature (above 3000m altitude, -40℃ extreme cold areas)
- Mining conditions with high dust, strong impact, and 24-hour continuous heavy-duty operation
2. Exclusive Working Condition Advantages
- Super Heavy-duty Load Capacity: Integral forging cylinder tube with overall heat treatment, 40% higher fatigue resistance, no deformation or cracking under long-term full-load operation, adapted to 192-ton total weight and 734KN bucket digging force of XE2000.
- Extreme Environment Adaptability: Nickel-chromium double-layer electroplating + quenching and tempering process on piston rod, surface hardness over HRC60, anti-collision, wear-resistant and corrosion-resistant, resisting mine dust, gravel impact and acid-base erosion; sealing system resistant to high and low temperature, anti-aging, eliminating internal and external leakage.
- Strong Lateral Load Resistance: Large-span dual-support low-friction self-lubricating technology, effectively offsetting lateral stress during boom lifting, avoiding piston rod eccentric wear and jamming, adapted to complex stress conditions of irregular material mining.
Common Faults, Troubleshooting and Maintenance
As a core component for heavy-duty mining, the troubleshooting and maintenance solutions for common faults of 804009181 boom cylinder are as follows:
1. Boom Sinking (Internal Leakage)
- Fault Performance: Boom slides down slowly when hovering, aggravated sinking under full load
- Causes: Worn piston main seal, scratched piston rod, cylinder tube inner wall damage
- Troubleshooting: Replace original 804009181 cylinder repair kit (including main seal and guide ring); repair piston rod scratches (laser cladding); minor cylinder tube scratches repaired with diamond reamer, replace cylinder tube for severe damage.
2. Weak Lifting, Slow Movement
- Fault Performance: Slow boom lifting speed, unable to lift under full load, slow combined movement
- Causes: Deteriorated hydraulic oil, clogged filter; severe cylinder internal leakage; insufficient system pressure
- Troubleshooting: Replace mining-specific hydraulic oil and return filter; check cylinder internal leakage (repair if settlement >5mm/min under rated pressure); calibrate hydraulic system pressure to 35MPa standard value.
3. External Oil Leakage
- Fault Performance: Oil film or dripping at piston rod, leakage at cylinder tube weld or joint
- Causes: Damaged dust seal/rod seal; loose joint, cracked weld
- Troubleshooting: Replace rod seal and dust seal; tighten joints with standard torque; repair weld leakage with argon arc welding and conduct 30MPa pressure test.
4. Abnormal Noise and Vibration
- Fault Performance: “Hissing” or mechanical collision sound during cylinder operation, boom lifting vibration
- Causes: Air mixed in hydraulic system; internal impurities; worn guide sleeve
- Troubleshooting: Open air release valve to bleed air; disassemble and clean cylinder tube and piston; replace worn guide sleeve and apply lubricant.
Key Points for Purchase and Replacement
- Identify original part number 804009181, compatible with XCMG XE2000 mining excavator, avoid mismatching causing performance degradation or failure.
- Replace the seal repair kit synchronously during replacement, use original hydraulic oil (viscosity adapted to mining environment) to ensure sealing compatibility.
- Strictly control piston rod straightness (error <0.05mm/m) during installation to avoid eccentric wear; joint installation angle deviation <3° to prevent leakage.
- Regular maintenance: Check seal condition and piston rod surface every 500 hours; replace hydraulic oil and filter every 1000 hours to extend cylinder service life.
With original quality, heavy-duty performance and extreme adaptability, XCMG 804009181 boom cylinder has become the “power core” of XCMG XE2000 mining excavator, helping mining customers achieve efficient, stable and low-cost mining operations, making it the first choice for ultra-large mining excavator hydraulic parts.
