330502817 Dashboard Assembly XCMG XDE130 Dump Truck Parts
330502817 Dashboard Assembly — engineered for the XCMG XDE130 electric driving dump truck. This complete interior dashboard and instrument panel kit provides the structural mounting foundation for all operator controls and HVAC systems. The comprehensive 11-part assembly includes the main Instrument Desk (330502805), Key Switch Mounting Panel, Rocker Switch Panel, Air Conditioning Outlets, and structural trim plates. Genuine OEM and high-quality aftermarket options available for complete cabin restorations.
Product Details:
330502817 Dashboard Assembly for XCMG XDE130
The 330502817 Dashboard Assembly is the central ergonomic command hub designed specifically for the operator cabin of the XCMG XDE130 Electric Driving Dump Truck. This heavy-duty instrument panel houses the machine’s critical electronic displays, steering column pass-through, auxiliary switch panels, and cabin climate control (HVAC) ducting.
Unlike standard automotive dashboards, earthmoving consoles must endure extreme off-road vibrations, direct UV exposure, and heavy daily use by operators. This 11-part master combination group is manufactured from high-impact, crack-resistant materials. It includes the bare instrument desk shell, specialized mounting panels for the ignition and rocker switches, storage covers, and a total of eight directional HVAC air outlets. We supply the complete 330502817 dashboard assembly as well as individual interior trim components to support targeted cabin repairs. Genuine XCMG OEM parts and premium aftermarket alternatives are available for global dispatch.
General Assembly Specifications
| Attribute | Specification Details |
|---|---|
| Assembly Part Number | 330502817 |
| Assembly Name | Dashboard Assembly (Instrument Panel Fascia) |
| Compatible Brand | XCMG |
| Applicable Machine | XDE130 Electric Driving Dump Truck |
| Component Type | Cabin Interior / Operator Console |

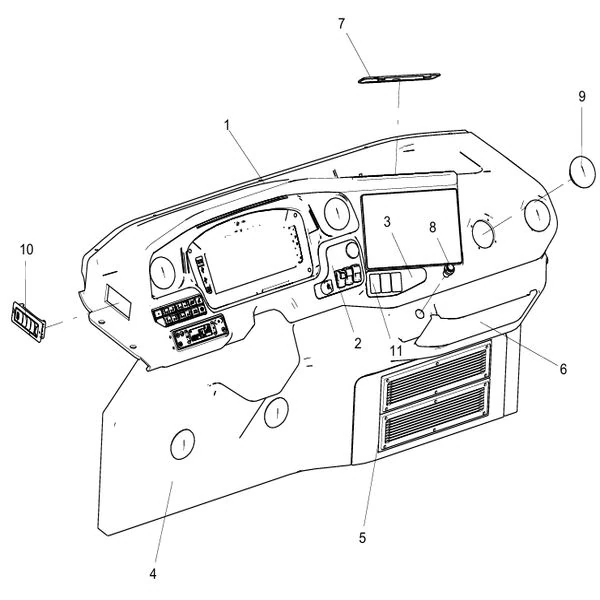

330502817 Component Parts List (Master Table)
Below is the detailed 11-part breakdown of this dashboard assembly according to the official XCMG XDE130 parts catalog. You can order the entire fully-trimmed console or request specific individual cosmetic components:
| Index | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 330502805 | Instrument Desk (Main Dashboard Shell) | 1 |
| 2 | 330502815 | Key Switch Mounting Panel | 1 |
| 3 | 330502803 | Rocker Switch Panel | 1 |
| 4 | 330502816 | Lower Coaming (Lower Dashboard Fascia) | 1 |
| 5 | 330502810 | Return Air Plate Assembly (HVAC Intake Grille) | 1 |
| 6 | 330502801 | Storage Box Cover | 1 |
| 7 | 330502802 | Access Panel | 1 |
| 8 | 802155972 | Cigarette Lighter (12V/24V Power Socket) | 1 |
| 9 | 802152174 | Round Ventilation Orifice (Including Standard Installation Parts) (HVAC Louver) | 6 |
| 10 | 802157644 | Air Conditioning Outlet (HVAC Duct) | 2 |
| 11 | 802152153 | Cold Starter Switch Baffle | 3 |
Features & Benefits of Our XCMG Cabin Interiors
- Optimized Climate Control: The dashboard integrates 6 round ventilation orifices and 2 primary AC outlets, precisely engineered to rapidly defrost the windshield and keep the operator cool in high-heat mining environments.
- Modular Ergonomics: Features dedicated, easily removable panels for key switches and rocker switches (Indexes 2 and 3). This allows electricians to quickly access wiring harnesses behind the dash without removing the entire instrument desk.
- Severe-Duty Durability: The 330502805 main instrument desk is injection-molded from UV-stabilized, impact-resistant composites designed to prevent fading, cracking, or rattling caused by constant off-road vibrations.
Ordering & Logistics Guidelines
- Select Individual Components: You can order the entire completely trimmed dashboard assembly for a rapid drop-in restoration, or you can order specific components such as just the switch panels (Indexes 2 & 3) or replacement AC louvers (Index 9).
- Provide Machine Serial Number: Dashboard cutouts, gauge clusters, and switch panel configurations can vary based on regional emission requirements and cabin trim levels. Providing your XCMG XDE130 VIN ensures our technicians match your original cabin layout perfectly.
- Safe Cosmetic Shipping: Interior trim pieces—especially large dashboard shells—are susceptible to scratching or crushing during transit. We utilize specialized protective wrapping and sturdy custom boxing to ensure your cosmetic cabin parts arrive in pristine, factory-new condition.
Submit your inquiry today detailing the specific items you need from the 330502817 assembly, along with required quantities and your destination port. Our B2B sales team will provide a detailed commercial quote and freight lead time within 1 business day.
