330107127 Cargo Compartment Assembly XCMG XDE130 Dump Truck Parts

330107127 Cargo Compartment Assembly for XCMG XDE130

The 330107127 Cargo Compartment Assembly serves as the ultimate payload carrier for the XCMG XDE130 Electric Driving Dump Truck. Widely referred to in the mining industry as the Dump Body, Dump Bed, or Haul Box, this massive steel structure is engineered from high-yield, abrasion-resistant steel to survive the brutal impact of blasted rock, heavy ores, and abrasive overburden dropped from massive excavators.

Beyond the bare steel box, a functional dump bed relies on a complex network of mounting hardware, pivot points, and safety accessories. This 52-part master combination group provides the complete outfitting for the cargo body. It includes the massive rear hinge pin assemblies that connect the bed to the chassis, exhaust heating ports to prevent wet material from freezing in the bed, stone deflecting rods (rock ejectors) to protect the rear dual tires, and dozens of rubber shock pads that cushion the bed when it is lowered onto the frame. We supply the complete 330107127 master assembly, as well as individual structural sub-components for targeted wear-part replacement.

General Assembly Specifications

330107127 Component Parts List (Master Table)

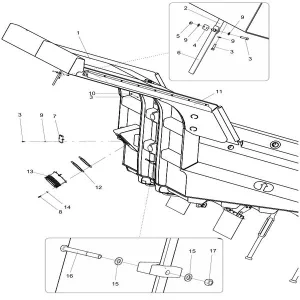

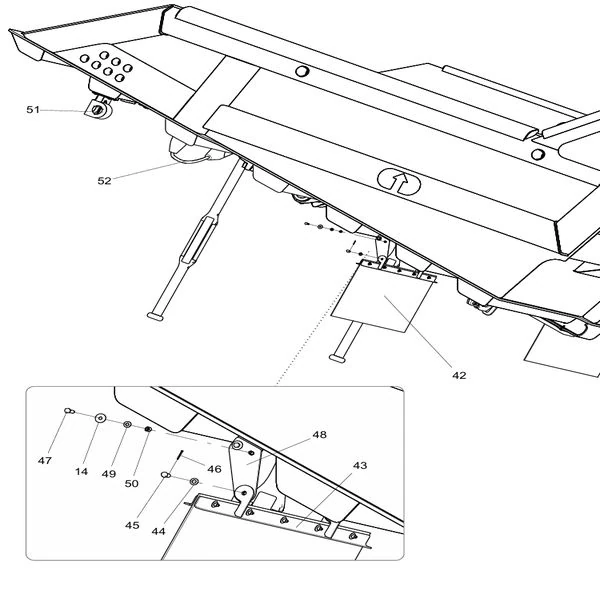

Below is the detailed 52-part breakdown of this dump body master group according to the official XCMG XDE130 parts catalog. You can request pricing for the entire system or specify individual major components (such as rock ejectors, hinge pins, or shock pads):

Features & Benefits of Our XCMG Dump Body Components

• Exhaust-Heated Bed Capability: Features the integrated 330107108 Heating Port Component. This system routes hot engine exhaust gases through the hollow ribs of the dump body, preventing wet, sticky material like clay or mud from freezing to the steel bed and reducing payload efficiency.
• Tire Protection System: The included 330107185 Stone Deflecting Rods (Rock Ejectors) mount firmly between the dual rear tires. These heavy steel rods continuously knock out trapped boulders, preventing catastrophic sidewall punctures and multi-thousand dollar tire blowouts.

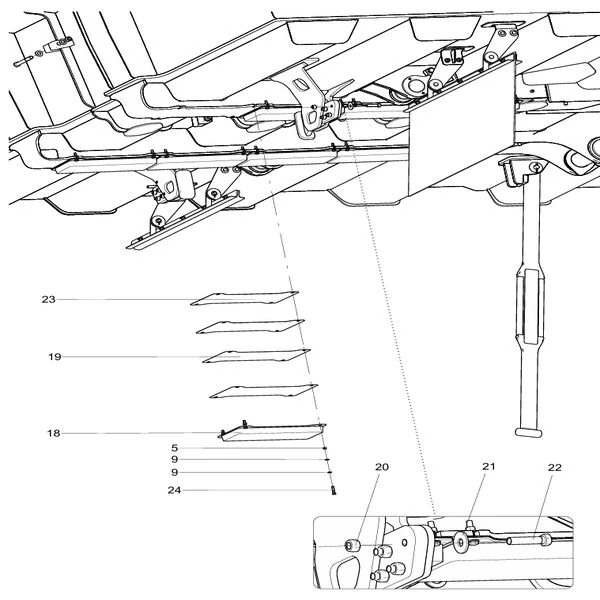

• Massive Shock Dampening: Dropping a 130-ton steel bed onto a rigid frame causes immense structural stress. This kit includes dozens of specialized rubber Shock Pads and Cushions (Indexes 12, 18, 19, 23, 33-35) that absorb the kinetic impact when the bed is lowered, protecting the main chassis from cracking.

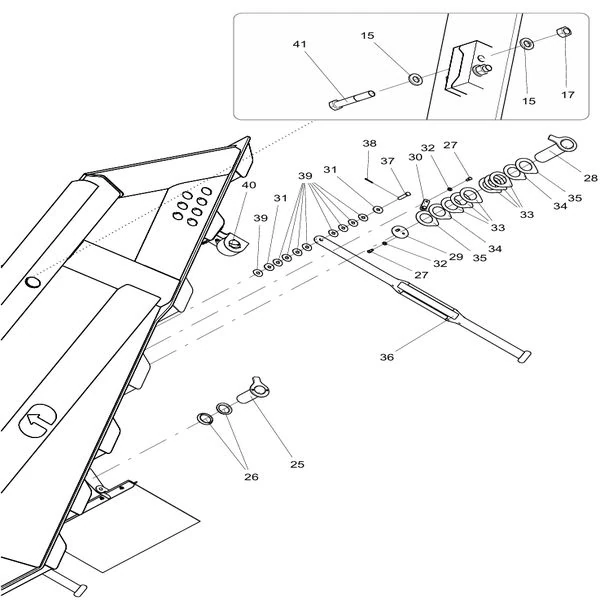

• Heavy-Duty Pivot Hardware: Features massive, heavy-duty Hinge Pin Shaft Assemblies (Indexes 25 & 28) designed to handle the extreme torsional sheer forces exerted during the tipping and dumping cycle.

Ordering & Logistics Guidelines

1. Select Individual Wear Parts: Given the massive physical scale and cost of a complete 130-ton dump bed, customers typically order specific sub-assemblies or wear parts. Please clearly specify if you need the entire welded body (Index 1), or just high-wear items (e.g., “Index 36: 330107185 Rock Ejectors” or “Index 25: 330105066 Hinge Pins”).
2. Provide Machine Serial Number: Exhaust port routing, mudguard mounting points, and hinge pin diameters can vary depending on the production year and specific payload configurations. Providing your XCMG XDE130 VIN guarantees 100% correct fitment.
3. Global Heavy Freight Shipping: A complete dump body is one of the largest manufactured structures on earth. We utilize specialized break-bulk / RoRo shipping, open-deck flat-racks, and custom sea-freight routing to ensure safe delivery directly to your regional port or mine site.

Submit your inquiry today detailing the specific items you need from the 330107127 group, along with required quantities and your destination port. Our B2B sales team will provide a detailed commercial quote and freight lead time within 1 business day.
