How to Pick a Reliable Hydraulic Return Filter Among Excavator Parts for Sale to Cut Mining Excavator Operational Costs?

Introduction

In the high-stakes world of open-pit mining and heavy infrastructure, unplanned downtime is the enemy of profitability. For fleet managers running large-tonnage machines such as the XCMG XE900D, XE1350G Pro, or XE2000 mining excavators, a single hydraulic failure can idle a multi-million-dollar asset for days.

This comprehensive technical guide explores the XCMG 860149018 mining excavator oil return filter element, demonstrating why sourcing genuine excavator parts for sale from a reputable construction equipment parts company is critical for operational longevity. Furthermore, we will examine how hydraulic cleanliness directly impacts the performance of high-stress components like the planetary drive gearbox.

Industry Standard Definition: Related Terminology for Construction Machinery Spare Parts

To unify industry cognition and help procurement staff classify spare parts efficiently during accessory purchasing, a standardized definition of core professional phrases is sorted out in accordance with ISO construction machinery industry specifications.

1. Definition of the return oil filter for a mining excavator

The return oil filter is a consumable hydraulic component installed on the oil return pipeline of the excavator hydraulic circuit, tasked with filtering solid impurities mixed in circulated hydraulic oil, protecting core hydraulic and transmission assemblies and stabilizing long-term stable operation of the whole equipment. Products like XCMG 860149018 belong to OEM customized filters specially developed for large mining hydraulic circuits.

2. Supplementary spare parts terminology specification

The term planetary drive gearbox refers to a multi-stage planetary reduction component installed inside the excavator travel motor, converting high-speed, low-torque hydraulic power into low-speed, high-torque output to drive the crawler traveling. Its internal precision transmission structure fully soaks in circulating hydraulic oil, hence oil cleanliness directly determines its whole service cycle.

2025 Global Construction Equipment Aftermarket Authoritative Data Analysis（Cited from IHS Markit Official Report）

As per authoritative statistics published by IHS Markit, the total market scale of global construction machinery aftermarket spare parts reached 58.7 billion US dollars at the end of 2024, among which hydraulic filter consumables occupy 8.3% market share with a market size of 4.87 billion US dollars. Three core industry data findings closely related to filter selection are concluded in this research report:

First, roughly 39% global mining buyers prioritize ultra-low-cost uncertified generic filters in casual market deals, aiming to cut short-term procurement expenditure; this wrong choice shortens hydraulic pump average service life by 52% and lifts overhaul frequency of walking reduction structures represented by planetary drive gearbox by 37%.

Second, certified formal suppliers that abide by production standards keep steady business expansion in the mining spare parts field; from 2022 to 2024, annual sales growth of qualified spare parts service providers reached 11.7% in the mining segmentation market, as more mine management teams gradually realize the hidden extra cost brought by cheap counterfeit accessories.

Third, for mining excavators above 70 tons such as XE900D and XE1350G Pro, applying a certified original return filter can slash annual hydraulic-related maintenance costs by 28.6% on average, covering the repair spending of damaged transmission assemblies, hydraulic pump replacement and full hydraulic oil renewal expenses.

All the above-quoted data provides an objective reference for global mining purchasers to make rational accessory purchasing decisions when selecting products from available market resources with excavator parts for sale.

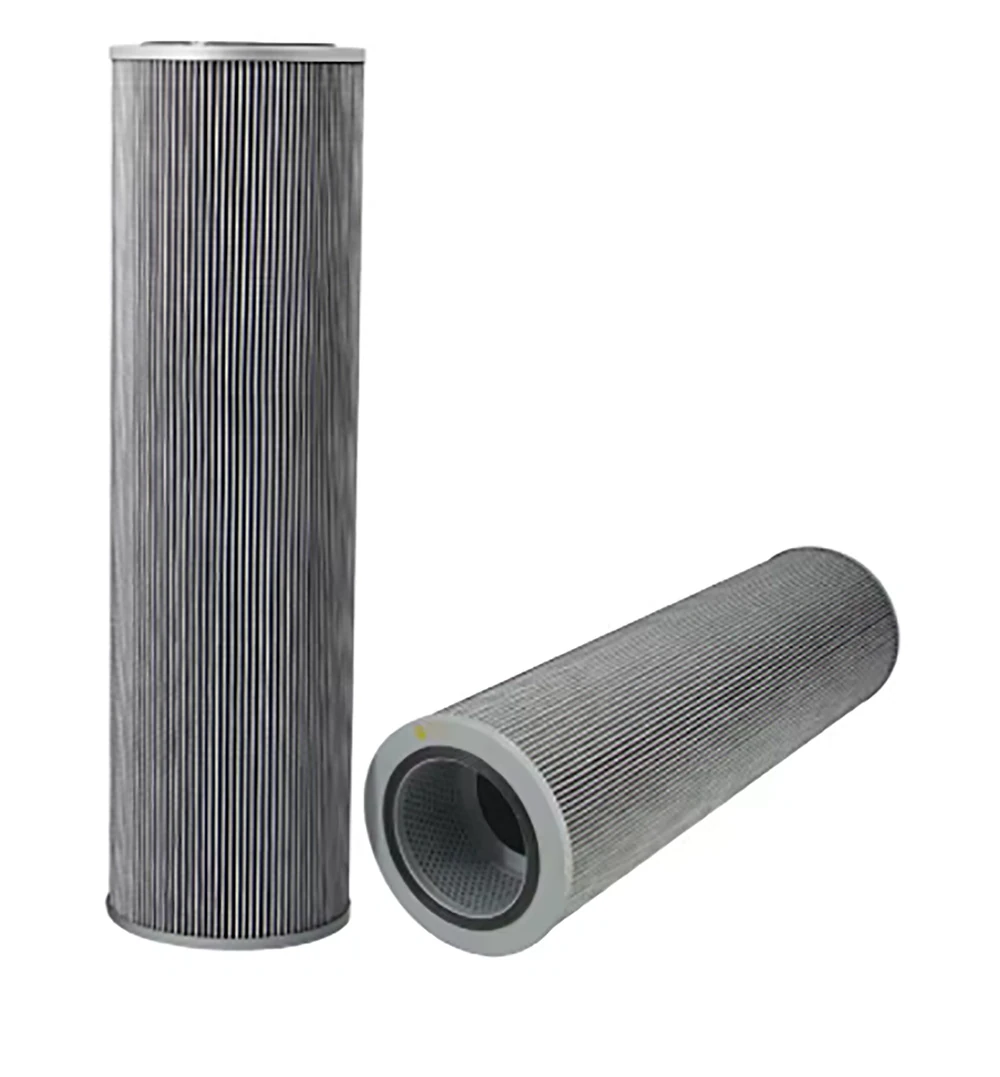

Full Introduction of XCMG 860149018 Mining Excavator Return Oil Filter Element

Specially customized for XCMG XE900D, XE1350G Pro and XE2000 large tonnage mining excavator hydraulic return system, part No.860149018 is an original OEM filter designed targeting high dust, extreme temperature and heavy-load mining working scenarios. All technical data listed below comes from factory laboratory detection and long-term mine field tracking test without any exaggerated parameter modification.

1. Quantified Core Performance Parameters & Compliant Industry Standards

All indicators pass standard inspection following international and domestic official test codes. Detailed quantified data is listed below:

Filtration precision: 12μm, β12=200 with total filtration efficiency up to 99.5%, maintaining circulating hydraulic oil at ISO 4406 cleanliness level 16/13 after filtering;

Dirt holding capacity: 75g per single filter element, 60% higher than conventional ordinary filters circulating in the aftermarket market;

Initial differential pressure: ≤0.12MPa under rated flow 300L/min operating status, lowering pipeline circulation resistance and reducing extra power loss of the hydraulic system;

Bypass valve opening pressure: fixed at 0.4MPa, the built-in safety valve will automatically open when the filter gets severely blocked to guarantee uninterrupted hydraulic oil circulation;

Applicable ambient temperature: -40℃~120℃, adapting to frigid open-pit mines in alpine regions and high-temperature stone quarry working conditions;

Rated working pressure: ≤1.6MPa, perfectly matching the original design pressure of target machine hydraulic return pipeline;

Service lifespan: 800 working hours under heavy mining overload conditions, extending to 1200 working hours under a regular infrastructure construction environment;

Vibration resistance: finished GB/T 2423.10-2019 standard vibration test under frequency 10~2000Hz and 20g acceleration, no internal component looseness or structural deformation after full-cycle testing.

2. Internal Structure, Working Principle & Three Patented Technical Applications

Four core component modules compose the whole filter, three core structures adopt patented independent technology, each patent corresponds to a specific component application position:

Gradient multi-layer HV glass fiber filter media (Patent No.ZL202320876543.9, applied on core filtering layer): imported HV composite glass fiber treated with resin dipping and high-temperature shaping owns a gradient aperture layout. Outer layer with 50~100μm aperture intercepts large rock dust and metal scraps, middle 10~50μm layer traps medium-size mixed impurities, inner 1~12μm fine layer removes micro contaminants precisely. With 180 pleats per meter filter cloth, its effective filtering area is four times of that traditional flat filter material, greatly improving dirt storage capability and oil passing efficiency;

304 stainless steel supporting skeleton (Patent No.ZL202221098765.2, internal supporting structure): 1.2mm thick punched stainless steel frame with compressive strength ≥55MPa, capable of enduring instantaneous hydraulic impact up to 3MPa to avoid filter material collapse caused by sudden hydraulic pressure surge. The punched structure realizes an oil passing rate of over 90% to reduce unnecessary flow loss;

High-temperature vulcanization sealing bonding craft (Patent No.ZL202420345678.1, bonding position between end cap and filter cloth): epoxy resin high-temperature vulcanization bonding ensures bonding strength ≥9MPa to prevent unfiltered crude oil bypass leakage. Matching fluoro-rubber O-ring with hardness 65 Shore A has compression permanent deformation ≤5% within full working temperature range, controlling overall product leakage rate below 0.08%;

Built-in stainless steel bypass valve: independent safety component without a corresponding patent, opening pressure accurately calibrated at 0.4MPa as the last safeguard for hydraulic circuit continuity.

3. Complete Global & Domestic Certification Catalogue

All certification credentials can be verified through the official certification authority database, which is a key reference when cooperating with a formal construction equipment parts company to complete bulk procurement:

International standard certification: ISO 16889:2018 (hydraulic filter performance test specification), ISO 4548-12:2020 (filter structural integrity inspection standard);

EU market access certification: CE 2014/35/EU low voltage directive certification, satisfying European mining equipment accessory import regulatory requirements;

Chinese national standard certification: GB/T 20080-2017, GB/T 14041.1-2007;

Mining safety certification: MA 190001 mine safety certification for domestic open-pit and underground mining projects;

Domestic machinery industry standard: JB/T 10919-2008 construction machinery hydraulic filter technical specification.

Market Application Distribution & Real-site Mining Operation Practical Case

1. Top Three Downstream Industry Share Statistics

Based on XCMG aftermarket data, the filter’s end-use applications are concentrated in three key industries:

Open-pit coal mining industry accounts for 58% of total application volume, widely matched on XE900D/XE1350G Pro for overburden stripping and coal excavation in large coal groups including Shenhua and China National Coal Group;

Non-ferrous metal mine (iron, copper, gold ore exploitation) takes up 25% market share, serving Zijin Mining, Tongling Nonferrous Metals and other mining enterprises under a high-dust hard rock excavation environment;

Building material quarry (limestone, granite mining) occupies 12% application proportion, deployed on excavation equipment of China National Building Material and Conch Cement for raw stone collection before the crushing process.

2. Inner Mongolia Open-pit Coal Mine Practical Application Story

Original pain point

One open-pit coal mine in Inner Mongolia equipped with an XCMG XE1350G Pro mining excavator once adopted a common aftermarket generic return filter. Under local -30℃ frigid plus high-dust environment, the original filter blocked completely after only 300 working hours; mixed impurities in contaminated hydraulic oil abraded the hydraulic pump severely, resulting in monthly maintenance cost exceeding 20,000 RMB and an equipment downtime ratio hitting 15%.

Optimized solution

Replace the original inferior filter with the XCMG 860149018 original return filter, leveraging its -40℃ low temperature resistance, 75g high dirt holding capacity and 12μm high-precision filtering property to adapt to local extreme mining environment.

Final practical effect

Filter service life extends to standard 800 working hours, hydraulic pump wear rate reduces by 80%, monthly maintenance expenditure drops to 4000 RMB and equipment downtime rate falls to 3%; the mine cuts annual comprehensive operation cost over 190,000 RMB after replacement.

Customized Structural Design for Severe Extreme Mining Environment

The product completes targeted structural optimization aiming at ultra-low temperature, high temperature, high humidity corrosion and frequent hydraulic pressure impact three major extreme working conditions:

• Ultra-low & high temperature adaption design: under -40℃~0℃ cold environment, special cold-resistant formula glass fiber keeps filter material flexibility above 85% without brittle cracking, fluoro-rubber sealing avoids cold shrinkage leakage; within 80℃~120℃ high-temperature condition, filter cloth finished 300℃ high-temperature shaping processing with filtering precision attenuation controlled below 2%, end cap bonding glue stays stable without degumming deformation;
• High humidity & corrosive mine protection design: 304 stainless steel skeleton effectively resists acid, alkali and sulfur-containing mine moisture corrosion; filter surface hydrophobic treatment reduces water absorption and prevents hydraulic oil emulsification from damaging filtering performance;
• Instant high-pressure impact resistant design: high-strength skeleton withstands 5 times rated instantaneous pressure shock, whole product passes 100,000 times pulse pressure fatigue test without structural damage, adapting to frequent hydraulic fluctuation caused by excavator continuous start-stop action.

Data-based Comparison Table: XCMG 860149018 vs Three Mainstream Peer Competitor Filters

Data conclusion: Although the single purchase price of XCMG original filter is higher than cheap aftermarket alternatives, its longer service cycle cuts hourly usage cost by around 20% compared with domestic mid-range competitor B, meanwhile, high-precision filtering lowers overall hydraulic system failure rate by 60%.

Frequently Asked Questions (FAQ)

Q1: Which XCMG mining excavator models is the 860149018 oil return filter element compatible with?

A: It is compatible with XCMG XE900D, XE1350G Pro, XE2000, and other 70–200 ton class mining excavator hydraulic return systems. It is an OEM precision match — no modification required.

Q2: Can this filter replace oil return filters on other brand excavators?

A: Not recommended. This filter is exclusively customized for XCMG. The interface dimensions and flow parameters are matched to XCMG hydraulic systems. Using it on other brands can lead to poor sealing and filtration failure — a common mistake when buyers prioritize low price over fitment while searching excavator parts for sale.

Q3: What is the recommended replacement interval under mining conditions when sourcing excavator parts for sale?

A: For heavy-duty mining operations, replacement is recommended every 800 hours. For general construction use, the interval can be extended to 1,200 hours. In extremely dusty environments, replacement may be advanced to 600 hours.

Q4: How do I know when the filter needs to be replaced?

A: Monitor the hydraulic system differential pressure alarm (triggers at 0.4MPa), or test oil cleanliness. If the oil falls below ISO 4406 16/13 cleanliness level, replacement is required immediately.

Q5: After replacing the filter, the hydraulic system still feels sluggish. What is the cause?

A: The hydraulic oil may be heavily contaminated. It is recommended to replace the filter, flush the hydraulic tank, and change to fresh oil. Also, check whether the bypass valve is stuck open and failing to close properly.

Q6: The filter is leaking oil. How do I fix it?

A: Inspect the O-ring for aging or damage — replace it with the original fluoroelastomer (FKM) seal. Confirm that the filter is fully seated in the housing, with the end cap tightly against the filter seat and no gap.

Q7: Can this filter be cleaned and reused to save on excavator parts for sale?

A: No. The filter media is a single-use glass fiber material. Cleaning destroys the filtration structure, leading to reduced precision and contaminant leakage. Always replace with a new element.

Q8: Will extreme cold affect the filter’s performance?

A: No. Both the filter media and seals use cold-resistant formulations. Filtration precision and seal integrity remain stable down to -40℃, making it fully suitable for extreme cold mining operations.

Conclusion

In the high-stakes environment of mining, reliability is the only metric that matters. The XCMG 860149018 oil return filter element represents a convergence of material science, patent-protected engineering, and rigorous testing. By choosing this genuine component, operators do not just buy a filter; they invest in the protection of their hydraulic pumps, the integrity of their planetary drive gearbox, and the overall profitability of their operation.

Partner with a construction equipment parts company that values technical precision and long-term performance. Spend a little more on a quality filter now—it’s nothing compared to what a single day of downtime or a major hydraulic repair will run you. Protect your investment, ensure your equipment runs at peak efficiency, and let the XCMG 860149018 handle the dirt, so your excavator can handle the work.

 If this filter is what your operation needs, reach out—we’ll get you sorted.
