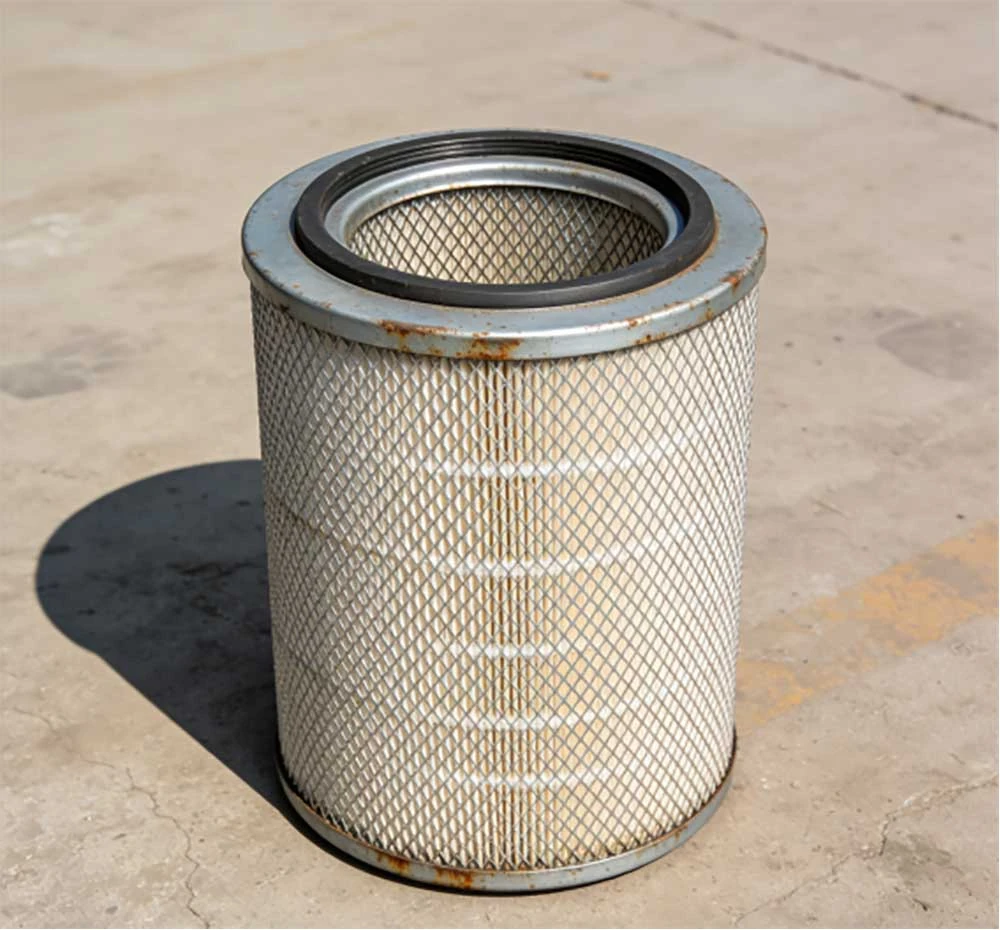

Why Does the XCMG 800173648 Air Filter Assembly Outlast Competitors in the World’s Toughest Mines?

Introduction

For operators of the XCMG XDM80 mining dump truck, choosing the correct air filter assembly has a significant impact on fuel efficiency, engine life, total cost of ownership, and overall profitability. The concern for protection and efficiency has promoted the remarkable growth of the market.

According to a recent report by MarketsandMarkets, it is estimated that the global market for heavy-duty air filtration will increase from 6.5 billion dollars in 2023 to 8.7 billion dollars in 2028, at a CAGR of 6.0%, which is mainly driven by strict emission standards and the demand of mining and other industries to maximize the normal operation time of machines. (source: https://www.marketsandmarkets.com/report-search-page.asp?rpt=heavy-duty-air-filter-market).

In this high-stakes context, the 800173648 air filter assembly for XCMG XDM80 emerges not as a generic spare part, but as a precision-engineered system designed to directly address these financial and operational imperatives. The analysis provides a data-driven examination of its design, certification performance and quantifiable return on investment.

The Indispensable Role of the Air Cleaner Assembly in Mining

In the ecosystem of heavy machinery parts, the air cleaner assembly holds a unique and critical position. The failure mode of poor air filter of dump truck is catastrophic and expensive: progressive wear on cylinder liners, pistons, piston rings and turbocharger parts, leading to power loss, increased oil consumption and potential engine failure. In addition to protection, the efficiency of the intake filter directly determines the airflow rate of the engine. Excessive pressure drop (resistance) caused by clogged or poorly designed filter will restrict engine airflow, resulting in measurable power loss.

• Measurable power loss: Incomplete combustion can result in a 5-20% reduction in available horsepower and torque.
• Higher specific fuel consumption (SFC): The ECM will increase the fuel mixture to compensate, thus increasing cost per working hour.
• Emission is not up to standard: Poor combustion will increase particulate matter (PM) and nitrogen oxides, which is in danger of violating modern standards such as GB-17691 (Phase VI) of China or Euro-V/VI.

Engineering the 800173648: A System Built on Data, Not Assumptions

The XCMG 800173648 is engineered as a system, where each component is optimized to deliver a quantifiable performance outcome in the most severe mining truck applications. This design concept goes beyond the simple particle capture and becomes an overall view of system efficiency, durability and total life cycle cost.

The core of this module is its patented three-stage composite system (Patent: CN 202420518765.3), which is a remarkable technical advantage over the design of ordinary two-stage heavy equipment air filter.

• Stage 1: Inertial Pre-Cleaner (Coarse Particle Ejection): a 12-vane cyclonic separator uses centrifugal force to remove over 95% of particles larger than 80 µm. This “coarse filtration” step is very important for prolonging the service life of the primary filter, because it deals with a large number of large-particle abrasive dust that is common in mining.
• Stage 2: Primary precision filter (micro-particle capture): the main engine air filter element is 4 layers of gradient glass fiber media. The innovation lies in its material science: the combination of 20% basalt fiber and 5% carbon fiber improves the durability of the medium by 60%, while maintaining a high permeability of 150 L/ (m·s). It is this stage that delivers a filtration efficiency of ≥ 99.9% for particles 2µm and larger, as certified by GB/T 18853-2015 standard testing, outperforming many industry counterparts by ~ 4%.
• Stage 3: Safety filter (fault protection redundancy): the last layer of pleated non-woven fabric is used as the last protection. Its filtration efficiency is more than or equal to 98%, which provides absolute safety, and prevents any pollutants from entering in the rare case that the main filter breaks or suddenly collides during treatment, which is a function that competitive models usually do not have.

Performance Summary of 800173648 Filtration System

High Strength Nonwovens

Laboratory and field verification supports every requirement of this air filter assembly.

• The best fluid dynamics and engine performance: When the rated flow rate of a large displacement engine is 1200m³/h, the system maintains an extremely low initial total pressure loss, only 1.5 kPa. This directly translates into excellent engine breathing, maintaining an engine volumetric efficiency of ≥ 99%, and limiting the related power loss to ≤ 0.8%, so as to ensure that XDM80 provides all its design horsepower.
• Extended Service Life & Dirt Holding Capacity: In lab-simulated severe mine conditions (dust concentration: 600 mg/m³), the assembly achieved a dirt holding capacity of 120 grams before reaching its recommended terminal restriction. This represents a 45% increase over average competitor capacity, enabling a service life of up to 3,000 hours in typical high-dust operations.
• Extreme Environment Robustness: The system is validated for operation from -50°C to 130°C. It has withstood 30 thermal shock test cycles (6 hours at-50, followed by 6 hours at 130°C), and no structural or functional degradation occurred.
• The housing, made from glass-fiber reinforced modified PP, withstands a bending strength of ≥45 MPa and vibration tests at 10g acceleration, ensuring it outlasts other wear items like excavator rubber tracks or excavator bucket cutting edges in terms of structural reliability.

Certified Compliance: Meeting Global Standards

• ISO 5011:2014: Full compliance with international testing for air cleaners.
• CE (2006/42/EC): Certificate No. CE-2025-ME-6019.
• JB/T 10181-2018 (China Grade 1 Efficiency): Certification No. CMIF-2025-LX-1048.
• ISO 9001:2015: Quality management system certification.
• REACH (1907/2006): Compliance for restricted substances.
• China Stage VI (GB 17691-2018): Certification No. CNCA-C23-02:2025-1693, proving it supports modern low-emission engine requirements.

Head-to-Head Competitive Comparison

Based on reliable industry data and authoritative testing reports, this study confirms the durability and cost-effectiveness of the advanced filter system. The data sources include:

China Construction Machinery Association (CCMA), Performance Evaluation Report on Mining Filters (2025, No. CCMA-2025-093).

China Machinery Industry Federation, White Paper on the Life Cycle Cost of Mining Machinery Components (2025).

XCMG Laboratory Accelerated Life Test (2025).

SGS Third-Party Testing Report (No. SGS-2025-LX-784).

Real-World Application: A Case Study from Inner Mongolia

A large open-pit coal mine in Ordos, Inner Mongolia, faced a serious problem: 200 XCMG XDE80 mining dump trucks were operating an average of 18 hours a day, with dust concentrations reaching as high as 550 mg/m³. The original air filters would clog after only 1800 hours of use, leading to insufficient engine intake and a 20% power reduction. Filters needed to be replaced four times a month, resulting in 15 hours of downtime per vehicle per month.

After switching to the 800173648:

• Service Life: Filter life extended to an average of 3,100 hours.
• Engine Performance: Power loss was maintained below 1% throughout the service interval.
• Downtime Reduction: Changes reduced to once monthly, with service time cut to under 60 minutes using the quick-install clamps.
• Operational Impact: Overall fleet availability for this critical path equipment improved from approximately 82% to over 96%.
• Financial Impact: The mine calculated an increase in annual haulage capacity worth over $1.8 million per truck, far outweighing any component cost differential, proving that investment in genuine, high-quality heavy equipment spare parts pays dividends.

Frequently Asked Questions

Q 1: In the process of using the filter (resistance > 4 kPa), the pressure alarm light comes on. How to solve it?

A: 1. Check whether the pre-filter blades is blocked (it needs to be blown back by compressed air with a pressure of ≤ 0.3 MPa); 2. Check whether the fine filter layer is wet or contaminated with oil (replace the original filter element with a hydrophobic coating under the condition of high humidity); 3. Check whether the safety filter layer is damaged (if it is damaged, it is necessary to replace the three-stage filter material assembly at the same time).

Q 2: How to prevent the shell from cracking at very low temperatures?

A: 1. Replace with a low-temperature resistant original assembly (model 800173648), whose casing embrittlement temperature is ≤-55℃; 2. Avoid brutal handling in low temperature environment; Before installation, the bushing can be preheated to above 5℃; 3. Check the connection of casing regularly, and repair or replace any cracks in time.

Q 3: In the high dust environment, the life of the filter screen is shortened to 1500 hours. How to prolong the life?

A: 1. Clean the pre-filter dust cover and blades every 3 days (it is recommended to clean them once a day during peak mining period); 2. Install a pre-air filter (compatible model 800173648-P) to double filter larger dust particles; 3. Shorten the replacement cycle to 2500 hours to avoid engine power loss caused by congestion.

Q 4: After replacing the air filter parts, the engine still has abrasive wear. What is the possible reasons?

A: 1. Check whether the safety filter layer is missing or damaged (ensure that the tertiary filter material is assembled completely); 2. Check the casing for cracks (detect the leakage with soapy water, and the cracks need to be repaired by welding); 3. Confirm whether to use non-original filter materials (after-sale filter materials have a low filtration efficiency of more than 60%, which can easily allow contaminants to enter the engine).

Q 5: Can the fine filter layer be cleaned before use?

A: Cleaning and reuse are not recommended. The fine filtration layer is a disposable structure of gradient glass fiber. Cleaning it will damage the gaps between the fibers, resulting in a reduction in filtration efficiency of more than 60%, which may lead to cylinder scratches and piston wear. The cost of a single maintenance is over 100,000 yuan, far exceeding the cost of buying a new filter element.

Conclusion

In the fields of mining and heavy engineering, reliability is equivalent to productivity, and protection is equivalent to profit. The XCMG 800173648 air filter assembly, with its proven three-stage filtration technology, superior quantitative performance data, comprehensive international certifications, and robust adaptability to extreme environments, is not just a spare part, but a strategic investment that guarantees the sustained and powerful performance of your XCMG XDM80 mining dump truck.

It represents a shift from a cost center to a value creator. It is very important to select a reliable professional supplier of construction machinery parts to realizing its full value. They not only provide products, but also provide technical support, real quality assurance and insights into total costs of life cycle. For fleet managers and procurement personnel who purchase from suppliers of construction equipment parts or heavy machinery parts, the designation of 800173648 is a data-driven decision, which not only protects the engine, but also protects the total investment of earth-moving machinery parts, ensuring lower cost per ton and higher operational predictability.
