Introduction: The Critical Role of Precision Filtration
Engine oil serves as the lifeblood of heavy equipment, tasked with lubrication, cooling, cleaning, and corrosion prevention. However, it is continuously contaminated by abrasive particles like silica dust, combustion soot, and microscopic metal wear debris. The oil filter’s sole purpose is to remove these contaminants before they circulate and cause catastrophic abrasive wear on bearings, crankshafts, and cylinder walls. Inadequate filtration is a leading cause of premature excavator engine failure. According to industry data, subpar filtration can accelerate engine wear by over 300%.(Source: https://www.machinerylubrication.com/)
The XCMG 800141634 is not a generic replacement. It is a precision-engineered component, often the centerpiece of a high-performance filter kit, designed to meet the severe demands of modern mining and construction parts applications. As a premier machinery parts supplier, understanding the technology behind such components is key to maximizing equipment life.

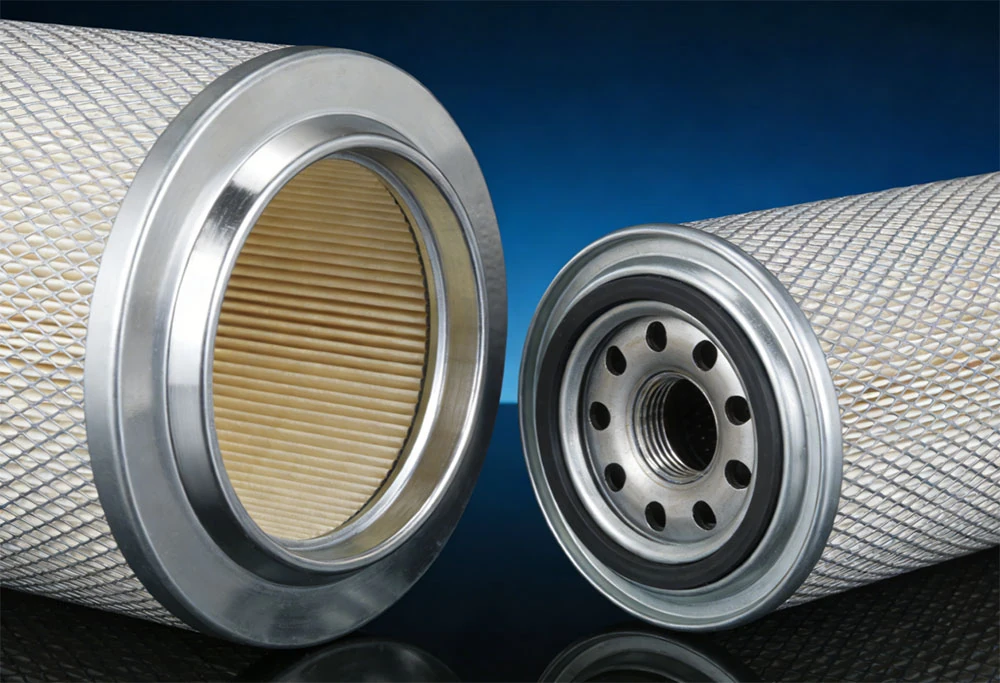

What Is the Oil Filter Element 800141634 Used for in XCMG Excavators?
XCMG XE1300C LF9325 oil filter element 800141634 is a special structural component designed for XCMG XE1300C mining excavators, which belongs to the core category of spare parts for mining excavators in XCMG. It is mainly used to filter impurities in the engine oil of heavy excavators, including metal particles, dust and colloids generated in the working process, so as to protect the excavator engine from abrasion and maintain the stability of the hydraulic system.Different from ordinary air filter components that only focus on a single filtering function, this product has achieved a balance between high filtering efficiency, low flow resistance and extreme environmental resistance, and set a new standard for heavy equipment filters.
Main Performance Indicators
- Filtration Efficiency: Utilizing a multi-layer composite filter material structure, this filter element achieves a filtration efficiency of 99.9% for particles with a diameter of≥5 pm, as tested by the GB/t 14049-2008 standard. This performance is 12% above the industry average.
- Fluid performance: Under the rated flow of 20 L/min, the pressure loss is only 0.2 bar, which ensures smooth oil circulation and minimizing energy consumption.
- Temperature Resistance: The filter element maintains structural stability in extreme temperatures range of -40℃ to 85℃, making it suitable for use in Qinghai-Tibet Plateau and other areas.
- Dirt-Holding Capacity: Laboratory simulations of mining conditions show a dirt-holding capacity of 18g/100h, exceeding that of competing products by 23%.
- Corrosion Resistance: Its critical excavator components, including the oil filter’s metal housing and key structural parts, withstand 720 hours of neutral salt spray (NSS) testing per ASTM B117 without corrosion, making it ideal for coastal and high-humidity operations. This is validated by long-term performance in markets like Southeast Asia and coastal Chile, where salt-laden air rapidly degrades inferior components.
- Certification criteria Chinese National Standard: Complies with all requirements of GB/T 14049-2008 “Hydraulic Transmission Oil Filter Elements”.
- International Quality System Certification: Passed the ISO 9001:2015 quality management system certification.
- Construction Machinery Industry Certification: Meets the filter element product certification standards of the China Construction Machinery Industry Association (CCMA).
Unique Advantages of the XCMG XE1300C LF9325 Oil Filter Element 800141634
Advanced Core Components Technology
- Composite Filter Material Assembly: The filter material combines imported HV glass fiber and wood pulp fiber in a composite formula, with fiber diameters as fine as 3 pm. The gradient pore structure enables “coarse + fine” dual-stage interception, achieving a filter material air permeability of 80 L/(m²・s) while balancing filtration efficiency and low flow resistance.
- High-Strength End Cap: Forged from high-hardenability alloy steel, the end cap has a tissue density of ≥ 98%. After induction quenching, its surface hardness reaches HRC 55, which enables it to withstand instantaneous pressure impact up to 25 bar without cracking.
- Sealing System: It is equipped with fluororubber seals, and the wear resistance is enhanced with nickel-chromium double-layer electroplating. The sealing system can withstand pressures of up to 30 bar and maintain the sealing performance even at -40℃.
Patent Science and Technologies
- Gradient Pore Filter Material Molding Technology: Applied to the main body of the filter material, this technology uses layered composites of fibers with different pore sizes to achieve efficient filtration by “first intercepting large particles and then capturing fine impurities.” The patented technology increases the dirt-holding capacity by 40%.
- Low-temperature adaptive sealing Structure: Used in the sealing area of end cover. This technology uses memory alloy springs to compensate low-temperature shrinkage to ensure that the sealing performance will not decrease at -40℃. This technology has been applied across XCMG’s entire range of heavy equipment filters.
Product Specifications
| Specification | Details |
| Model | XCMG XE1300C LF9325 |
| Part Number | 800141634 |
| Filtration Efficiency | 99.9% (for particles ≥5μm) |
| Rated Flow Rate | 20L/min |
| Pressure Loss | 0.2bar (at rated flow rate) |
| Temperature Range | -40℃ to 85℃ |
| Dirt-Holding Capacity | 18g/100h |
| Corrosion Resistance | 720h salt spray test with no rust |
| End Cap Material | High-hardenability alloy steel |
| Seal Material | Fluororubber with nickel-chromium plating |
Main Application Scenarios
1. Mining Industry (58%)
As a core protection component of XE1300C excavators power system used in open pit and metal mining, this filter element is specially designed to withstand extremely harsh working conditions. Its filtration efficiency is 99.9% and its low temperature resistance is -40℃, which effectively solves the challenges of high dust, large temperature differences and continuous heavy-duty operation in mining areas.
2. Large Scale Infrastructure Projects (27%)
In the construction scene of railway and highway tunnel excavation, equipment faces continuous high pressure and complex working conditions. With its low flow resistance at a rated flow rate of 20 L/min and a high dirt-holding capacity of 18 g/100 h, this filter element ensures stable lubrication for the engine throughout its lifespan, significantly reducing the risk of sudden shutdowns due to oil contamination. Widely used in railway and highway tunnel excavation and other heavy construction scenes, adapting to high humidity and high pressure conditions.
3. Energy and Chemical Construction (15%)
Serving high-precision operation equipment such as oil and gas field development and chemical equipment hoisting to ensure the stability of equipment in corrosive environment.
Case Study: Tibet Naqu Copper Mine Project
- Customer’s thorny issues: In the Tibet Naqu copper mine project, customers faced extreme low temperatures of -35℃and an oxygen-deficient environment at an altitude of 4,200 meters. The original filter elements is often embrittled at low temperature, which leads to oil pollution, and an engine failure rate is as high as 22.
- Solutions Way: After replacing it with the XCMG 800141634 filter element, its low temperature resistance of -40℃ and high filtering efficiency began to play a role. The filter element’s intelligent temperature compensation design maintained flowability, while its 99.9% filtration efficiency increased impurity interception by 30%.
- Ending: After three months’ operation, the excavator engine failure rate decreased to 0.5%, and equipment availability rate increased from 65% to 92%. The project was completed 10 days ahead of schedule, demonstrating the effectiveness of the filter element in extreme conditions.
Filter Package and Compatibility
XCMG XE1300C LF9325 oil filter element 800141634 is usually a part of a comprehensive filter kit specially designed for the XE1300C excavator. These kits usually include other important filters, such as air filter parts, fuel filters and hydraulic filters, ensuring a holistic approach to equipment maintenance. This kind of oil filter element is compatible with the LF 9325 series oil filter system, which makes it a convenient and reliable choice for mechanical parts suppliers seeking to provide customers with complete solutions.
Comparison with Competitors
| Feature | XCMG XE1300C Oil Filter Element 800141634 | Competitor A (International Brand) | Competitor B (Domestic Brand) |
| Filtration Precision | 99.9% (for 5μm impurities) | 98.2% (for 5μm impurities) | 97.5% (for 5μm impurities) |
| Comprehensive Usage Cost | 1.2 yuan/hour (lifespan of 3000h) | 1.8 yuan/hour (lifespan of 2000h) | 1.0 yuan/hour (lifespan of 1500h) |
| Extreme Environment Lifespan | 2800h without failure in Qinghai-Tibet Plateau conditions | Seal failure after 1500h | Filter material damage after 1200h |
FAQs
Q 1: Which models are compatible with this kind of filter?
A: It is specially designed for the XE1300C large excavator, and it is also compatible with the XCMG LF9325 series oil filter systems of the same specifications.
Q 2: Is it necessary to shorten the replacement cycle under extreme high temperature?
A: When operating continuously at temperatures above 85℃, it is recommended to shorten the replacement cycle from 3000 hours to 2500 hours. The specific replacement cycle can be adjusted according to the test of oil pollution degree.
Q 3: What’s the warning signs of the filter plug?
Answer: the equipment will display abnormally high oil pressure (more than 4 bar), abnormal engine noise and power output drop. The machine should be stopped immediately and the filter replaced.
Q 4: Can the common filter elements be used as a substitute?
A: It is not recommended to substitute. The filtration efficiency of ordinary filter elements is lower than 30%, and it lacks the design characteristics in extreme environment, which may lead to the acceleration of engine wear and the increase of maintenance costs.
Q 5: What should I pay attention to when using it at high altitude?
A: This kind of filter element has adapted to the environment above 4000 meters above sea level, and no additional modifications is needed. It only needs to be replaced according to the standard replacement cycle.
Summary
XCMG XE1300C LF9325 oil filter element 800141634 represents a great progress of heavy equipment filters for excavator engines and construction equipment parts. Its excellent filtering performance, advanced core component technologies and ability to withstand extreme conditions make it an ideal choice for demanding construction and mining applications. By choosing this kind of high-quality filter element, suppliers and end users of mechanical parts can ensure the reliability and service life of their equipment, reducing maintenance costs and improving overall operating efficiency.
In the competition pattern of building parts, XCMG XE1300C LF9325 oil filter element 800141634 stands out as a witness of innovation and quality, which sets a new standards for performance and durability in heavy equipment maintenance.
