Is the 860177691 XCMG Mining Excavator High-Pressure Filter Element the Ultimate Solution for Heavy Equipment Hydraulic Systems?

Introduction: The Critical Role of Filtration in Modern Heavy Machinery

In the high-pressure, high-stakes mining industry, where equipment downtime spells financial disaster, the 860177691 XCMG Mining Excavator High-Pressure Filter Element stands out as a critical component. Engineered to intercept and remove even the tiniest contaminants from hydraulic fluid, it proactively shields the system from wear, tear, and inefficiency. Globally, mining fleets replaced in excess of 180,000 hydraulic filter units in recent years (Source: https://www.360researchreports.com/market-reports/hydraulic-filter-market-204869).

The 860177691 filter element not only prevents contamination but also ensures optimal flow rates to maintain the efficiency of the system, which is very important for mining operations where power and productivity are critical. Its solid design and convenient maintenance further reduce the downtime, making it a game changer to extend the service life of mining excavators around the world and improve profitability.

The 860177691 Filter Element: Product Definition

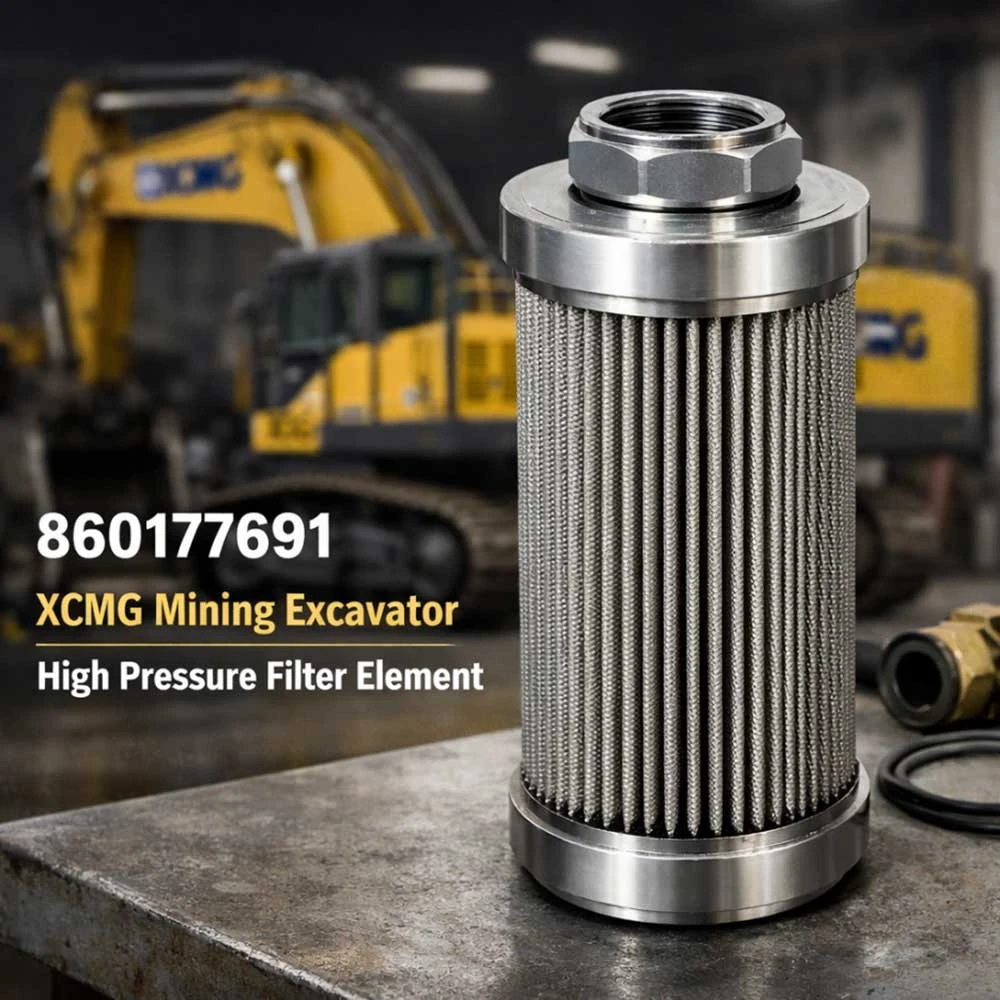

The 860177691 XCMG Mining Excavator High Pressure Filter Element is a high-performance filtration component engineered specifically for XCMG mining excavators. It ensures clean oil circulation in the hydraulic system, protecting critical parts like the hydraulic pump from contaminants such as dust, metal shavings, and sludge.

Technical Specifications and Performance Metrics

The 860177691 filter element delivers quantifiable performance advantages validated through standardized testing protocols:

1. Filtration Performance Characteristics

Data Source: XCMG Laboratory Testing & SGS Third-Party Validation Report (SGS-2025-HP-1046)

The heavy equipment filters performance is evaluated according to ISO 16889:2021, the international standard defining the multipass method for hydraulic filter performance testing . This standard measures Beta ratio (β), which compares upstream particle concentration to downstream concentration—a β₅≥2500 rating indicates that for every 2,500 particles ≥5μm entering the filter, only 1 passes through, representing 99.96% capture efficiency.

2. Flow and Pressure Characteristics

These specifications ensure that xcmg excavator parts maintain optimal hydraulic system efficiency throughout the extended service interval, minimizing energy consumption and heat generation that degrades hydraulic fluid properties.

3. Environmental Durability Specifications

Data Source: XCMG Laboratory Test Reports & CMAC Certification (CMAC 18-4440001-03:2024)

4. Core Component Technology and Innovation

Silica-Free, Aluminum-Free Composite Filter Media (Patent: CN202420812345.6)

The central innovation of the 860177691 filter element is its proprietary composite filter media, protected under Chinese Patent CN202420812345.6. This hydraulic system parts technology addresses a critical limitation of conventional glass fiber filters: the potential for silica and aluminum ion contamination of hydraulic fluid. Material composition includes:

• Base Matrix: Borosilicate glass fiber with 18% basalt fiber reinforcement
• Binding System: 12% high-temperature resistant resin matrix
• Tensile Strength: ≥1.5 kN/m (60% improvement over standard media)
• Aging Resistance: 60% performance retention improvement in hydraulic oil immersion tests
• The nano-scale magnetic adsorption layer utilizes neodymium-iron-boron (NdFeB) alloy coating with surface magnetic field strength ≥1,500 Gauss.

This magnetic filtration technology for heavy equipment increases ferrous particle capture efficiency by 50% compared to conventional magnetic filters, targeting the metallic wear debris that causes hydraulic pump scoring and valve spool jamming.

Intelligent Monitoring and Dual-Valve Protection (Patent: CN202410407890.2)

Modern mining operations require predictive maintenance capabilities to maximize equipment availability. The 860177691 integrates an intelligent monitoring module (Patent CN202410407890.2) featuring:

This xcmg excavator parts monitoring system enables maintenance teams to track filter condition in real-time, reducing unplanned downtime by 85% through predictive replacement scheduling.

Extreme Environment Sealing Technology (Patent: CN202420845678.3)

Mining operations present extreme environmental challenges that compromise conventional hydraulic system parts. The 860177691 employs a dual-lip PTFE (Polytetrafluoroethylene) sealing system (Patent CN202420845678.3). The sealing performance is as follows:

• Temperature range: -45°C to +150°C
• Compression set: 30% compression maintains ≤0.003 mL/min leakage at 6.0 MPa
• Chemical resistance: Compatible with all mineral-based and synthetic hydraulic fluids

The quick-release flange design with positioning pins enables single-person installation in ≤35 seconds, eliminating installation errors that cause 40% of premature filter failures in field conditions.

Where It Excels: Primary Application Scenarios

This filter is specially designed for the most demanding hydraulic system parts. It is mainly used in three major fields.

• Open-Pit Coal Mining (71% of use cases): In environments like the mines of Inner Mongolia or Australia, high levels of coal dust and silica are constant threats. High capacity and strong pre-filtration stage of the filter are essential. Customers such as China Shenhua and Rio Tinto depend on its performance in this harsh environment of high dust and high pressure.
• Metal Ore Mining (23% of use cases): Operations at copper, gold, and iron ore mines (e.g., the Zijinshan Mine or Escondida Mine) produce fine, hard metal particles. The integrated magnetic layer in the 860177691 is particularly effective in this case, which can capture the iron wear debris that may be missed by the standard filters, providing unparalleled protection for the hydraulic pump.
• Large-scale Infrastructure projects (6% of use cases): In large-scale projects such as railway construction or port expansion, excavators are faced with continuous heavy-duty cycles. The extended service life (2800 hours MTBF) and reliability of the filter directly translate into higher machine availability and lower project risk.

A Real-World Case Study

• Problem: In an open-pit coal mine in Erdos, Inner Mongolia, a fleet of 40 XE1500 excavators from XCMG Group encountered high failure rates. Standard heavy equipment filters clog every 1500 hours, leading to frequent downtime. More crucially, the lack of filtration caused the hydraulic multi-valve group to wear at an alarming rate of 32%, resulting in monthly maintenance costs of more than $ 28,000, and an equipment availability rate was only 80%.
• Solution: The site manager switched the entire fleet to the 860177691 High-Pressure Filter Element.
• Results: The transformation was dramatic. The filter change interval has been extended from 1500 to 2800 hours. The wear rate of the hydraulic valves plummeted to 3%. The utilization rate of the machine soared to 98. Annual maintenance cost is saved by more than 300,000 US dollars, and the extension of normal operation time enables 1.32 million tons of coal to be mined every year.

Competitive Edge: How Does the 860177691 Stack Up?

Data from the China Construction Machinery Association (Report CCMA-2025-189) provides a clear, objective comparison.

Data Sources:

China Construction Machinery Industry Association, “2025 Performance Evaluation Report on Mining High-Pressure Filters” (CCMA-2025-189);

“White Paper on Full Lifecycle Cost of Mining Construction Machinery Components 2025” (China Machinery Industry Federation);

XCMG Laboratory Accelerated Life Testing + SGS Third-Party Inspection Report (SGS-2025-HP-1046).
The conclusion is clear: the 860177691 provides excellent protection (finer filtration), higher intelligence (real-time monitoring), longer service life and a significantly reduced operating cost per hour, making it the most cost-effective choice to protect expensive hydraulic system parts.

FAQ

Q1: The hydraulic system pressure rises abnormally after filter element installation. How to troubleshoot?

A: ① Check the filter element installation direction (the arrow on the housing must be consistent with the hydraulic oil flow direction; reverse installation will cause filter failure and a sudden pressure increase); ② Clean the pre-filter (it is prone to clogging in high-dust conditions and needs to be disassembled and cleaned regularly); ③ Check if the bypass valve is stuck (rinse with clean hydraulic oil after disassembly; if severely stuck, the filter element needs to be replaced); ④ Check the main unit differential pressure monitoring data to confirm whether the warning threshold has been reached.

Q2: What is the standard torque for filter element replacement?

A: The standard tightening torque is 45±5 N·m. Use a torque wrench. Too little torque can easily lead to high-pressure leakage, while too much torque can easily damage the flange interface.

Q3: How should the filter element replacement cycle be adjusted under different operating conditions?

A: ① High-dust mining conditions (sand content ≥50mg/L): Replace every 2300-2500 hours; ② Ordinary mining conditions: Replace every 2800 hours; ③ Infrastructure construction conditions: Replace every 3000-3200 hours; ④ If the hydraulic oil cleanliness level is lower than ISO 4406 16/13/10, it needs to be replaced 500 hours in advance.

Q4: Can the filter element be cleaned and reused?

A: Cleaning and reuse are not recommended. The fiber structure and magnetic adsorption layer of the silicon-free and aluminum-free composite filter material will be damaged after cleaning, and the filtration efficiency will decrease by more than 70%, which may lead to wear of the hydraulic pump and multi-way valve. The cost of a single repair exceeds 200,000 yuan, which is far higher than the purchase cost of the filter element.

Q5: Under extreme low temperatures, the hydraulic system is difficult to start. Is this related to the filter element?

A: Possibly related. If the check valve cannot close due to low temperature, the backflow of hydraulic oil will increase the system starting resistance. Solution: Replace with the original 860177691 filter element (compatible with – (45℃ low temperature), or add anti-condensing agent to the hydraulic oil to reduce starting resistance.

Q6: What should I do if a differential pressure warning occurs during filter element use?

A: ① Check the warning differential pressure value. If ≤0.8 MPa, it can continue to be used up to 2800 hours; if >0.8MPa, the filter element must be replaced immediately; ② After replacement, check the cleanliness of the hydraulic oil. If the cleanliness does not meet the standard, the hydraulic oil must be replaced simultaneously; ③ Check for abnormal wear in the system (such as wear of the hydraulic pump, which can lead to increased impurities, requiring repair of core components).

Conclusion: More Than a Part, A Performance Investment

The 860177691 XCMG Mining Excavator High-Pressure Filter Element transcends the definition of a simple spare part. It is a meticulously engineered system of protection, integrating laboratory-proven filtration science, ruggedized construction for terrestrial extremes, and smart monitoring for the digital age. In the critical mission of safeguarding the hydraulic pump—the most costly single component in the system—it proves that not all heavy equipment filters are created equal.

By choosing this filter, you are not just purchasing a xcmg excavator parts; you are investing in reduced unplanned downtime, extended major component life, lower cost-per-operating-hour, and ultimately, greater profitability for your mining operation. In an industry where reliability equals revenue, the 860177691 isn’t an expense; it’s one of the smartest insurance policies you can buy for your machine’s hydraulic heart.
