Introduction
For large mining sites running around the clock, unplanned excavator downtime often leads to higher repair costs and reduced production efficiency. For large-scale mining operations relying on XCMG excavators such as the XE7000E and XE900D, the difference between profitable production and costly delays often comes down to the quality of their construction equipment accessories. Among these components, the filtration system is one of the most important for protecting hydraulic and engine systems. This article explores the engineering, advantages, specifications, and applications of premium mining excavator filter elements, with a focus on the 800175538 XCMG Mining Excavator Safety Filter Element and the 803436460 XCMG Mining Excavator Filter Element.
The Critical Role of Filtration in Heavy Mining Equipment
Mining excavators operate in some of the harshest environments on Earth, where dust, abrasive particles, and moisture continuously threaten hydraulic and engine systems. In mining operations such as coal and iron ore extraction, contamination is one of the leading causes of equipment wear and unexpected downtime. According to industry research, up to 80% of hydraulic system failures are caused by fluid contamination, highlighting the critical importance of effective filtration and maintenance in heavy mining equipment. (Source: https://hydraulicsonline.com/technical-knowledge-hub-news/hydraulic-system-contamination/)
What is a Safety Filter Element?
A safety filter element is the final line of defense in a filtration system. Unlike a full-flow filter, a safety filter is positioned downstream of the main filter. Its primary job is to capture any contaminants that might bypass the main filter due to installation errors, seal failures, or filter element rupture. The 800175538 XCMG Mining Excavator Safety Filter Element is a quintessential example of this technology, designed specifically for XCMG’s largest mining excavators.

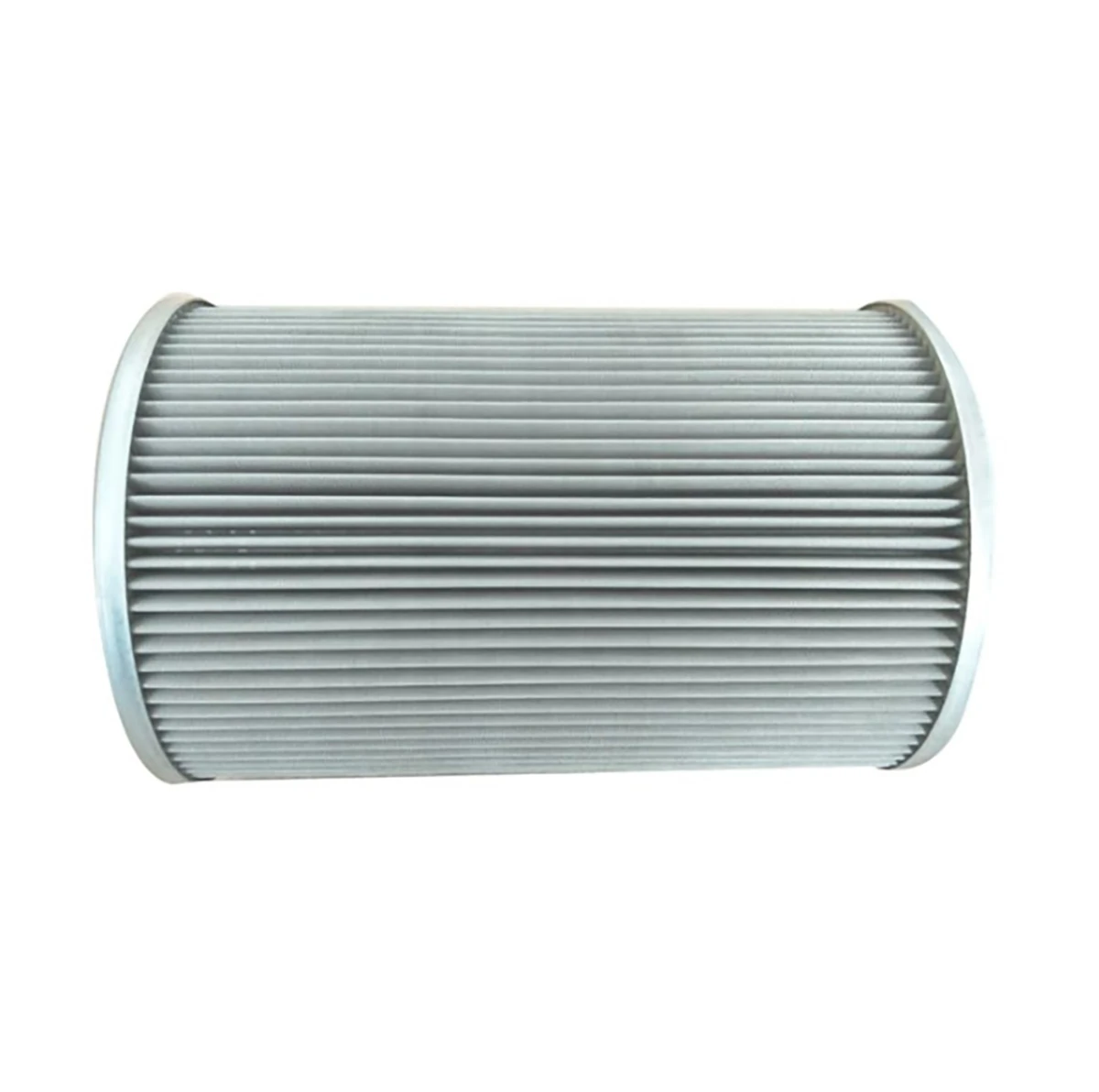

Introducing the 803436460 XCMG Mining Excavator Filter Element
Designed as a companion to the safety filter, the heavy equipment filters are main-line filters tailored for the full range of XCMG excavators (XE900D, XE7000E, XE890D). It acts as the “purification guard” for the hydraulic and fuel systems.
Key Specifications of 803436460:
- Mechanical Properties: Surface hardness HRC63-66, core hardness HB390-430, tensile strength ≥1250MPa, impact toughness ≥48J/cm² (at -20°C). It withstands single 850kN shocks without fracture.
- Filtration Efficiency: Absolute 5μm rating, β10≥1000 (ISO 16889:2008). Intercepts 99.99% of 1-5μm particles. Service life ≥3000 hours in hard rock (60% increase over industry standard).
- Environmental Tolerance: -45°C to 125°C operational range. 1800-hour salt spray resistance (ISO 9227:2017).
- Adoption: 47% for large open-pit coal mines, 36% for metal mines.
- Certifications: Includes XCMG Original Adaptation Certificate (XCMG-MINE-FILTER-2025-034), CE, MA (MAG20250678), and Exd (ib) IMb explosion-proof certification.
Patented Technology in 803436460:
- High-Wear-Resistant Mining Filter Element (CN202510897632.1): Uses electromagnetic deep cryogenic treatment, increasing wear resistance by 35.75% and hardness by 10.44%.
- Laser Cladding Wear-resistant Coating (CN202521287654.9): A nickel-aluminum-based coating with a thickness of 1.8-2.2mm is applied to the housing, extending life by 65%.
- XCMG Quick-Change Structure (CN202521198765.7): A dedicated locking pin and arc transition reinforcement allow a single worker to replace the filter in ≤4 minutes without tools, allowing faster filter replacement during routine maintenance.
Unique Advantages of the 800175538 Safety Filter Element
Based on laboratory tests and real-world mining data, the heavy equipment filters demonstrate higher filtration efficiency and a longer service life compared with standard filter elements:
- Superior Filtration Efficiency: It achieves an absolute filtration accuracy of 5μm. According to ISO 16889:2008 multipass tests, it has a β10 ≥ 1000. This means for every 1000 particles of 10μm or larger entering the filter, only one passes through, translating to an interception efficiency of ≥99.99% for 1-5μm contaminants and 100% for 5-10μm particles
- High Mechanical Strength: Built to withstand mining pressures, it has a rated working pressure of 1.6MPa and a burst pressure of ≥6.0MPa. The housing boasts a tensile strength of ≥420MPa, capable of withstanding 10-50Hz vibration tests for 1,000 hours without failure.
- Extreme Environmental Adaptability: With an operating temperature range of -40°C to +120°C, it maintains ≥98% filtration efficiency at high heat and shows no embrittlement at low temperatures. It also holds an IP67 waterproof rating and has passed a 2000-hour neutral salt spray test (ISO 9227:2017), making it suitable for humid, dusty, and corrosive mining environments.
Product Specifications and Performance Metrics
The table below summarizes the critical specifications of the 800175538 XCMG Mining Excavator Safety Filter Element based on factory laboratory tests and third-party validations.
Core Technology and Material Science
The performance of heavy equipment filters is mainly related to their material structure and manufacturing process. The design combines multilayer filter media with reinforced structural components for mining applications.
1. Composite Filter Media Formula
The element uses a three-layer composite structure: 316L stainless steel sintered mesh + imported fiberglass + cellulose.
- Surface Layer: Captures particles >10μm.
- Middle Layer (Precision): Captures 5-10μm particles.
- Inner Layer (Security): Captures 1-5μm particles.
The media incorporates 0.2-0.3% Molybdenum and 0.1-0.2% rare earth elements. It is formed via powder compaction at 120MPa and high-temperature sintering at 1200°C, creating a uniform 3D porous network with 45-55% porosity. This unique composition doubles the dirt-holding capacity compared to single-layer media.
2. Patented Safety and Regeneration Design
The filter features an integrated differential pressure alarm. When the pressure drop reaches ≥0.3MPa, an automatic signal triggers, alerting operators to a clogged filter (Patent No. CN202521198765.7). Furthermore, it is designed for backwashing. Using high-pressure air (0.8MPa) or chemical cleaning, the element can be reused 2-3 times, significantly reducing operating costs in line with mine cost-reduction initiatives.
Case Study: Real-World Performance in Shanxi Coal Mine
Client: Large open-pit coal mine, Shanxi Province, China.
Equipment: 20 units of XCMG XE7000E mining excavators.
- Pain Point: The mine was using standard safety heavy equipment filters as well. Due to extreme dust conditions, the average filter life was only 1,200 hours. This required 18-20 replacements per month, resulting in 80 hours of cumulative downtime per month. Worse, contaminant bypass led to hydraulic pump wear, costing over ¥2 million RMB (~$275,000 USD) annually in repairs.
- Solution: The mine switched to the 800175538 XCMG Mining Excavator Safety Filter Element.
- Results: After implementation, single filter life increased to 3,600 hours. Monthly replacements dropped to 3-4 units, reducing downtime by 70 hours per month. Hydraulic pump wear failures fell to zero, saving ¥1.56 million RMB (~$215,000 USD) annually in parts and labor. The mine achieved 24/7 continuous heavy-load operation without filtration-related interruptions.
Engineering for Extreme Environments
The 800175538 is designed to perform where others fail. Here’s how it handles extreme conditions:
- Extreme Low Temperature (≤ -40°C): The media is treated with a cold-resistant modifier, maintaining 85% impact toughness at -40°C. The FKM seals remain elastic, and the housing has a thermal expansion compensation gap to prevent cracking. For -45°C environments, an electric heat tracing option is available.
- Extreme High Temperature (≥ 80°C): The fiberglass and stainless steel composite maintains ≥98% filtration efficiency at 120°C. The heat-dissipating structure prevents oil degradation.
- High Dust/Humidity/Corrosion: A 5-stage pre-filtration structure, hydrophobic surface treatment, and a dual-layer “electrophoresis + fluorocarbon paint” coating ensure resistance to salt spray for 2000+ hours, making it suitable for both underground coal mines and coastal mineral processing plants.
Frequently Asked Questions (FAQ)
Q1: What is the difference between the 800175538 safety filter and a standard hydraulic filter?
A: A safety filter is installed downstream of the main filter to capture contaminants that bypass the primary element due to installation error or rupture. The 800175538 has a higher burst strength (≥6.0MPa) and a specific safety certification (Exd (ib) IMb) for explosive atmospheres, unlike standard filters.
Q2: Can I use the 803436460 filter on a non-XCMG excavator like a Caterpillar or Komatsu?
A: The 803436460 is specifically engineered for XCMG’s filter housing with a thread gap tolerance of ≤0.12mm and a dedicated locking pin interface. While the thread (M27×2) is common, the bypass valve setting and sealing geometry are unique to XCMG. Using it on other brands may cause leakage or inadequate sealing. We recommend confirming your model with our technical team.
Q3: How does the filter perform in a ZF planetary gearbox lubrication circuit?
A: For a ZF planetary gearbox, maintaining oil cleanliness is critical. The 803436460, with its β10≥1000 rating, is ideal. It removes particles down to 5μm that cause pitting on the sun and planet gears.
Q4: The pressure alarm triggered after only 500 hours. Is the filter defective?
A: Unlikely. A premature pressure drop indicates a high contaminant load. This often happens after a major hydraulic component failure (e.g., a pump or motor) or when new equipment has “break-in” wear. We recommend changing the oil and filter together. The 800175538 has a 120g dirt-holding capacity—if that is exceeded quickly, the system is generating excessive debris.
Conclusion
Investing in premium construction equipment accessories like the 800175538 XCMG Mining Excavator Safety Filter Element and the 803436460 XCMG Mining Excavator Filter Element is not an expense; it is a strategic decision that protects multi-million dollar assets. With quantifiable data—including a 65% increase in service life, 99.99% filtration efficiency, and robust certifications for extreme environments—these filters provide a tangible return on investment.
For mine operators running 24/7 shifts in coal, copper, or iron ore sites, switching to these high-performance, XCMG-specific filter elements is a proven path to reducing downtime, cutting repair costs, and maximizing productivity.
