ODT009806698 Oil System Sany SAT40C Dump Truck Parts
ODT009806698 Oil System — engineered for the Sany SAT40C articulated dump truck. Functioning as the primary fuel storage and delivery module, this comprehensive 15-part assembly includes the main OIL BOX (fuel tank – ODT009806696), Liquid Level Sensor (140504000302A), fuel hoses, adapters, and a complete set of heavy-duty mounting hardware. Designed to provide secure fluid storage and accurate fuel monitoring in severe off-road conditions. Genuine OEM and high-quality aftermarket options available.
Product Details:
ODT009806698 Oil System (Fuel Delivery Group) for Sany SAT40C
The ODT009806698 Oil System is the primary fluid storage and delivery network designed for the Sany SAT40C Articulated Dump Truck (ADT). Although designated as an “Oil System” in the factory parts catalog, this assembly functions as the truck’s main fuel tank and fuel delivery group. It is responsible for safely storing diesel fuel, continuously monitoring fluid volume, and routing fuel to the engine’s primary injection system.
This comprehensive 15-part master group contains everything required to replace or overhaul the fuel storage system. It includes the heavy-duty main tank (“OIL BOX”), the highly sensitive electronic Liquid Level Sensor, specialized fuel hoses, fitting adapters, and all required anti-vibration mounting hardware. We supply both the complete ODT009806698 group and its individual sub-components to support targeted fleet maintenance. Genuine Sany OEM parts and premium aftermarket alternatives are available for global dispatch.
General Assembly Specifications
| Attribute | Specification Details |
|---|---|
| Group Part Number | ODT009806698 |
| Group Name | Oil System (Fuel Tank & Delivery Assembly) |
| Compatible Brand | Sany |
| Applicable Machine | SAT40C Articulated Dump Truck |
| Component Type | Chassis Components / Fuel Storage & Routing |

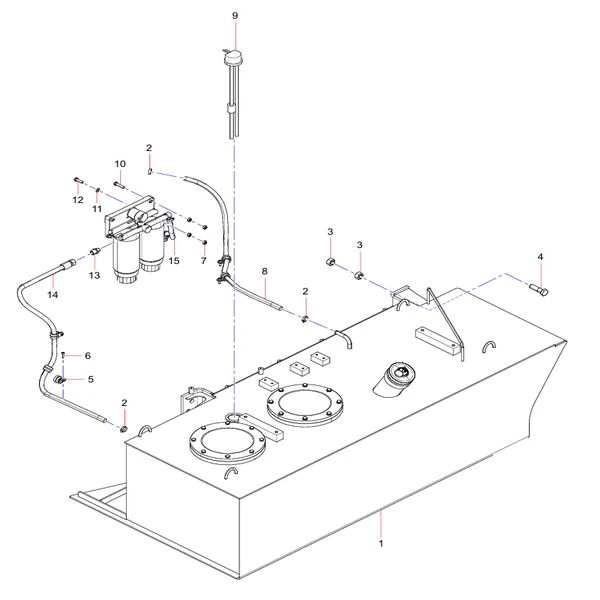

ODT009806698 Component Parts List (Master Table)
Below is the detailed 15-part breakdown of this fluid system according to the official Sany SAT40C parts catalog. You can order the entire system or request specific individual part numbers:
| Index | Part Number | Description | Qty |
|---|---|---|---|
| 1 | ODT009806696 | OIL BOX (Main Fuel Tank) | 1 |
| 2 | A210855000066 | Hole-shaped Clamp | 5 |
| 3 | A210307000029 | Nut | 24 |
| 4 | A210110000172 | Bolt | 12 |
| 5 | A229900006641 | Tube Clamp | 6 |
| 6 | A210204000132 | Screw | 6 |
| 7 | A210307000017 | Nut | 8 |
| 8 | ODT009119372 | Pipe | 1 |
| 9 | 140504000302A | Liquid Level Sensor (Fuel Level Sender) | 1 |
| 10 | A210111000120 | Bolt | 2 |
| 11 | A210405000011 | Washer | 2 |
| 12 | A210111000026 | Bolt | 2 |
| 13 | A229900002499 | Fitting, Adapter | 1 |
| 14 | ODT008762502 | Fuel Hose | 1 |
| 15 | ODT005922458 | Fuel Hose | 1 |
Features & Benefits of Our Sany Fuel Storage Components
- Impact-Resistant Reservoir: The ODT009806696 OIL BOX is fabricated to resist punctures, rust, and the violent vibrations encountered by the chassis during off-road hauling, ensuring your fuel supply remains secure and uncontaminated.
- Precision Electronic Monitoring: The included 140504000302A Liquid Level Sensor provides highly accurate, real-time fluid volume data to the operator’s cabin dashboard, preventing unexpected equipment stalling due to fuel starvation.
- Severe-Duty Hose Routing: Includes OEM-grade fuel hoses (Indexes 14 and 15) and an extensive array of tube clamps designed to keep fluid lines tightly secured against the chassis, eliminating the risk of chafing or line blowouts.
Ordering & Inquiry Guidelines
- Select Individual Part Numbers: You can order the entire system or specify exact internal part numbers you need from the table above (e.g., if you only need a replacement sensor, specify “Index 9: 140504000302A Liquid Level Sensor”).
- Verify the Part Number: Confirm the assembly or individual part numbers match your Sany equipment data plate or parts manual before placing your order.
- Provide Machine Serial Number: Tank capacities and sensor wiring harnesses can occasionally vary by production run. Providing your Sany SAT40C VIN ensures our technicians supply the 100% correct components.
Submit your inquiry today detailing the specific items you need from the ODT009806698 group, along with required quantities and your destination country. Our B2B sales team will provide a detailed quote and lead time within 1 business day.
