ODT009806696 OIL BOX Fuel Tank Assembly Sany SAT40C Dump Truck Parts
ODT009806696 OIL BOX (Fuel Tank Assembly) — engineered for the Sany SAT40C articulated dump truck. This comprehensive diesel storage module serves as the primary fuel reservoir for the chassis. The complete 12-part kit includes the bare heavy-duty tank (ODT009806697), a secure Fuel Tank Lock Cover (60234834), an internal primary Fuel Filter (60310040), cleaning caps for safe draining, and all required sealing O-rings and hardware. Genuine OEM and high-quality aftermarket options available for fleet collision repairs or overhauls.
Product Details:
ODT009806696 OIL BOX Fuel Tank Assembly for Sany SAT40C
The ODT009806696 OIL BOX (professionally recognized as the Main Fuel Tank Assembly) is a critical chassis component designed specifically for the Sany SAT40C Articulated Dump Truck (ADT). Engineered for severe off-road environments, this heavy-duty reservoir safely stores the diesel fuel required for long hauling shifts while protecting it from external contamination.
This master assembly is more than just a bare tank. It is a complete fluid management system that includes a lockable fuel cap to prevent fuel theft, an integrated primary fuel filter/strainer to catch large debris before it enters the fuel lines, and dedicated cleaning caps (inspection/drain ports) for routine tank flushing. We supply the complete ODT009806696 module as well as its individual sub-components (such as replacement lock covers or O-rings). Genuine Sany OEM parts and premium aftermarket alternatives are available for global dispatch.
General Assembly Specifications
| Attribute | Specification Details |
|---|---|
| Assembly Part Number | ODT009806696 |
| Assembly Name | OIL BOX (Main Fuel Tank Assembly) |
| Compatible Brand | Sany |
| Applicable Machine | SAT40C Articulated Dump Truck |
| Component Type | Chassis Components / Fuel Storage |

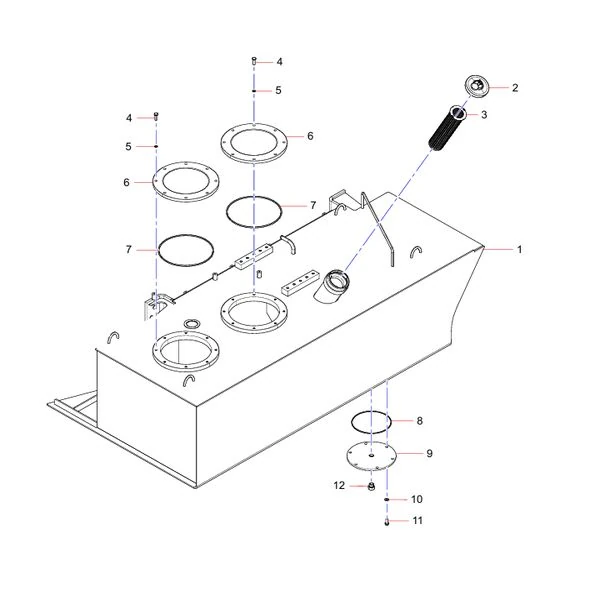

ODT009806696 Component Parts List (Master Table)
Below is the detailed 12-part breakdown of the fuel tank assembly according to the official Sany SAT40C parts catalog. You can order the entire tank unit or request specific individual part numbers:
| Index | Part Number | Description | Qty |
|---|---|---|---|
| 1 | ODT009806697 | Oil Box (Bare Fuel Tank) | 1 |
| 2 | 60234834 | Fuel Tank Lock Cover (Lockable Fuel Cap) | 1 |
| 3 | 60310040 | Fuel Filter (Internal Primary Strainer) | 1 |
| 4 | 24000527 | Bolt | 16 |
| 5 | 24000609 | Spring Washer | 16 |
| 6 | 11526420 | Cleaning Cap (Drain/Inspection Port Cover) | 2 |
| 7 | 60002606 | O-ring | 2 |
| 8 | A210609000016 | O-ring | 1 |
| 9 | 10704464 | Cover Plate | 1 |
| 10 | 24000637 | Washer | 6 |
| 11 | A210111000197 | Bolt | 6 |
| 12 | 21012175 | Plug | 1 |
Features & Benefits of Our Sany Fuel Tanks
- Impact & Corrosion Resistant: The main bare tank (ODT009806697) is manufactured from heavy-gauge materials treated with anti-corrosion coatings to resist rust and withstand impacts from rocks and mining debris.
- First-Line Fuel Defense: The integrated 60310040 Fuel Filter ensures that dirt, rust, and large contaminants introduced during field-refueling are trapped before they can enter the fuel lines and damage sensitive injectors.
- Service-Friendly Design: Features two 11526420 Cleaning Caps with corresponding O-rings (60002606), allowing mechanics to safely drain condensation and flush the tank of settled sludge without removing the entire assembly from the chassis.
Ordering & Logistics Guidelines
- Select Individual Part Numbers: You can order the entire tank assembly or specify exact internal part numbers you need from the table above (e.g., if you only need the locking cap, specify “Index 2: 60234834”).
- Mandatory O-Ring Replacement: Whenever cleaning caps or cover plates are removed for tank flushing, it is highly recommended to replace the sealing O-Rings (Indexes 7 and 8) to prevent diesel fuel weeping.
- Global Heavy Freight Shipping: Due to the large physical volume of the fuel tank assembly, we provide custom wooden framing and specialized palletized sea/air freight options to ensure the tank arrives without dents or structural damage.
Submit your inquiry today detailing the specific items you need from the ODT009806696 group, along with required quantities and your destination country. Our B2B sales team will provide a detailed commercial quote and lead time within 1 business day.
