ODT009800288 Transmission System Assembly Sany SAT40C Dump Truck Parts

ODT009800288 Transmission System Assembly for Sany SAT40C

The ODT009800288 Transmission System Assembly serves as the core drivetrain architecture for the Sany SAT40C Articulated Dump Truck (ADT). Designed to handle immense torque outputs and severe payloads, this master group receives power from the engine and intelligently distributes it to the front and rear axles, allowing the truck to navigate treacherous mining and construction terrain.

This master combination group is a complete drivetrain solution. It incorporates the primary gearbox, the drop box (transfer case), the connecting propeller shaft, and the vital thermal management assemblies required to keep the transmission fluids cool under extreme operational stress. We supply the complete ODT009800288 assembly group, as well as individual major components (such as ordering only the transfer case or oil cooler). Genuine Sany OEM assemblies and tested aftermarket units are available for global dispatch.

General Assembly Specifications

ODT009800288 Component Parts List (Master Table)

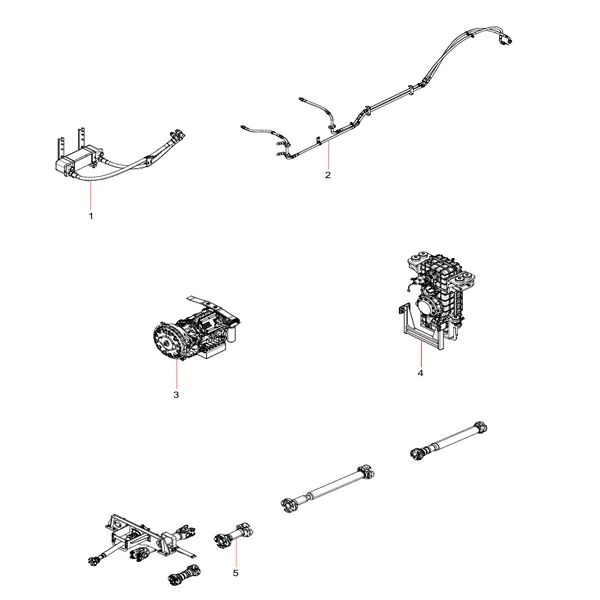

Below is the detailed 5-part breakdown of this transmission system group according to the official Sany SAT40C parts catalog. You can request pricing for the entire system or specify individual major assemblies:

Features & Benefits of Our Sany Drivetrain Components

• Maximum Torque Transfer: The primary Transmission Assy (ODT009313857) and Transfer Case (ODT009304235) are engineered with heavy-duty planetary gearing to ensure smooth shifting and relentless power delivery to the articulating axles without gear slip.
• Advanced Thermal Management: Heavy hauling generates immense fluid heat. This system includes dedicated cooling modules (Indexes 1 & 2) that prevent transmission and transfer case fluids from breaking down, significantly extending clutch pack and bearing life.
• Perfect Spline Engagement: The included ODT009337988 Driveshaft features precision-machined yokes and splines, ensuring a vibration-free connection between the gearbox and the transfer case.

Ordering & Logistics Guidelines

1. Select Individual Major Assemblies: Given the massive scale and cost of this system, customers typically order specific sub-assemblies. Please clearly specify if you need the entire system, or just an individual unit (e.g., “Index 4: ODT009304235 Transfer Case Assembly”).
2. Provide Machine Serial Number: Transmission gear ratios, shift control modules, and mounting flanges frequently vary depending on the production year and engine pairing. Providing your Sany SAT40C VIN guarantees 100% correct fitment.
3. Global Heavy Freight Shipping: Because transmissions and transfer cases are extremely heavy cast-iron assemblies, we utilize robust wooden crating and specialized palletized sea/air freight routing to ensure safe, damage-free delivery directly to your repair facility or mine site.

Submit your inquiry today detailing the specific items you need from the ODT009800288 group, along with required quantities and your destination port. Our B2B sales team will provide a detailed commercial quote and freight lead time within 1 business day.
