ODT009792261 Electrical System Assembly Sany SAT40C Articulated Dump Truck Spare Parts

ODT009792261 Main Electrical System & Wiring Harness Group for Sany SAT40C

The ODT009792261 Electrical System Assembly represents the complete central electrical power distribution, wire routing, and harness integration system for the Sany SAT40C articulated dump truck. Articulated dump trucks operate under continuous, heavy loads, generating constant structural vibrations while exposed to wet grounds, corrosive mine waters, and fine abrasive silica dust. A highly secure, heavily insulated electrical system is paramount to prevent short circuits, sensor signal drops, and potential electrical fires. This group serves as the central nervous system of the dump truck, connecting all main chassis and cabin components cleanly.

This primary assembly contains the high-amperage battery Power Line Assembly (ODT009298862) connecting the alternator, starter motor, and main fuses, the main trailer-and-tractor Body Harness (ODT009792177), and the complete interior Cab Electrical System (ODT009298889) loom. It includes an installation hardware pack containing heavy-duty connectors, terminals, heat-shrink tubing, and protective zip ties (item 5, cataloged as “ingredients”), along with the official Electrical Schematic Diagram (ODT005930876) for maintenance. We supply the fully integrated ODT009792261 electrical system group as well as individual battery cables, body wiring harnesses, cab electrical kits, and mounting accessories. Both genuine Sany OEM kits and highly reliable aftermarket options are in stock for rapid international shipping.

General Assembly Specifications

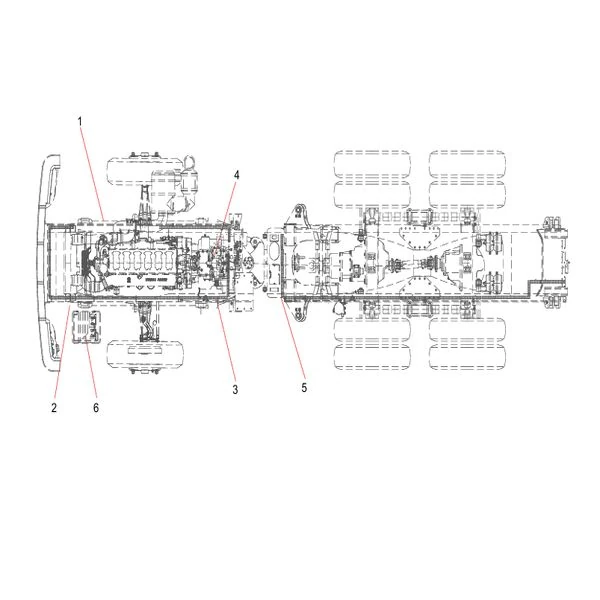

ODT009792261 Assembly Component Parts List

Below is the detailed parts catalog breakdown of the electrical system assembly as referenced in the Sany SAT40C technical manual. All listed major harnesses and electrical components are orderable separately:

Features & Benefits of Our Electrical System Assembly

• Heavy-Gauge Power Line Routing: The primary Power Line Assembly (ODT009298862) uses thick copper-core battery cables with heavy insulated outer sheaths, designed to deliver high cranking amperage from batteries to the starting motor without voltage drops.
• Engineered Mining-Grade Harness Shielding: Both the Body Harness (ODT009792177) and cab systems (ODT009298889) are wrapped in flame-retardant corrugated conduit tubing, designed to resist oil swelling, water splash, and environmental heat.
• Sealed Waterproof Connectors: Fitted with industrial-grade, sealed multi-pin plugs (IP67 or equivalent) to keep out moisture, mine mud, and fine dust, ensuring continuous signal contacts.
• Complete Installation Kit: Packaged with an accessories kit (item 5, containing joint sleeves, clips, and ties) and the official schematic diagram (item 1) to support clean routing and simple troubleshooting.

Ordering & Technical Maintenance Guidelines

1. Verify Engine and Transmission Emisssion Tiers: Wire harness layouts, sensor plugs, and computer pins differ slightly depending on engine configurations (such as Weichai Tier 3 vs. Tier 4 engine options). Please provide your Sany SAT40C articulated dump truck’s chassis serial prefix so our technical team can verify the exact wiring model.
2. Ensure Secure Harness Routing: When replacing or re-routing the body harness (item 3), always use heavy-duty, insulated rubber-lined metal p-clips and high-tensile zip ties. Never allow harnesses to hang loose or rub against sharp structural frame joints, which can lead to wire chafing and short circuits.
3. Inspect Silicone Waterproof Seals: Before snapping multi-pin plugs into frame sensors, verify that the silicone weather seals inside each connector are intact and free of dirt to prevent sensor signaling faults.

Contact our B2B sales department today with part number ODT009792261, your desired quantities, and delivery port to receive a formal commercial quotation within 1 business day.
