ODT009340137 Air-operated System Assembly Sany SAT40C Articulated Dump Truck Spare Parts

ODT009340137 Main Pneumatic Air-operated System Assembly for Sany SAT40C

The ODT009340137 Air-operated System Assembly (Pneumatic System Group) is the primary air distribution, filtration, and storage network designed for the chassis of the Sany SAT40C articulated dump truck. Articulated dump trucks operate continuously in demanding mining and earthmoving zones, where heavy pneumatic systems power the vehicle service brakes, emergency parking brakes, transmission interlocks, and cabin suspension leveling. Clean, dry, and regulated compressed air is vital to ensure that pneumatic control valves do not freeze, clog, or corrode from internal moisture.

This integrated system features a high-performance **Air Dryer** (152599000292A) with an exhaust **Muffler** (60284040) to filter out moisture and oil vapors from the air compressor output. To dissipate the extreme heat of compressed air before it enters the dryer, Sany utilizes a **Cooling Steel Tube Assembly** (ODT009194363) supported by rigid brackets. Air is stored in a 15-litre **Air Tank** (152504060026A) equipped with a manual/automatic **Drain Valve** (60222880) and a high-integrity **Safety Valve** (152599000297A) to prevent over-pressurization. For quick maintenance checks, the system includes a dedicated **Testing Connector** (151208000103A) pressure port. We supply the fully integrated ODT009340137 pneumatic assembly, replacement air dryers, air tanks, cooling tubes, high-temperature hoses, and complete nylon tubing installation kits. Both genuine Sany OEM kits and highly reliable aftermarket options are in stock for rapid international shipping.

General Assembly Specifications

ODT009340137 Assembly Component Master Parts List

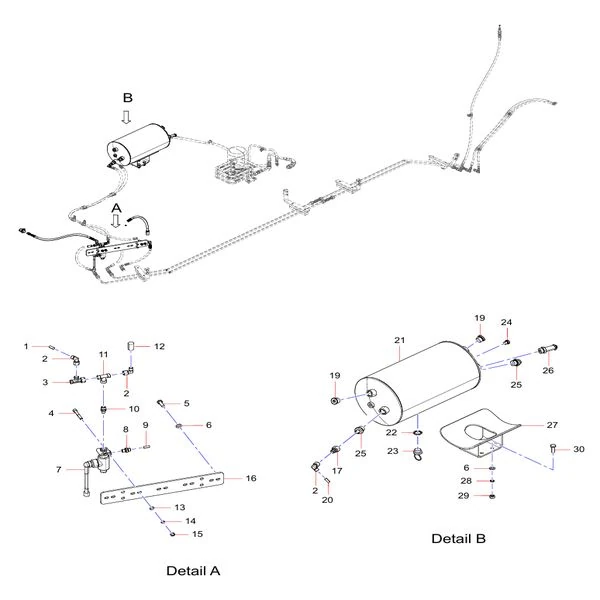

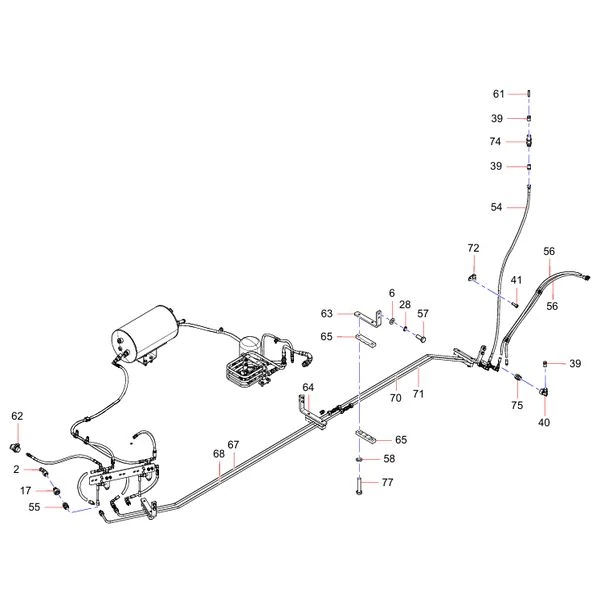

Below is the consolidated, non-redundant parts catalog breakdown of the air-operated system assembly across sheets 1/3, 2/3, and 3/3 in Sany’s technical manual. All listed components can be ordered individually for targeted field repairs or routine maintenance overhauls:

Note: Minor item index gaps exist in Sany’s original parts catalog (for example, index 18 is skipped). These gaps have been preserved below for strict catalog precision.

Features & Benefits of Our Air-Operated System

• Continuous Moisture Extraction: Houses the heavy-duty desiccant Air Dryer (152599000292A) and integrated exhaust muffler (60284040) to continuously extract water vapor and oil carry-over from the air lines, protecting downstream solenoid control valves from freezing or corroding.
• High-Temperature Heat Dissipation: Uses a dedicated, pre-bent Cooling Steel Tube Assembly (ODT009194363) supported by rigid brackets to cool down hot compressed air coming out of the compressor before it enters the air dryer, maximizing condensation separation.
• Pressurized Reserve Storage: Includes a high-durability 15-litre steel Air Tank (152504060026A) reservoir to store immediate air volume for brake actuation, complete with a manual Drain Valve (60222880) to bleed off condensed water.
• Integrated Pressure Diagnostics: Features a dedicated Testing Connector (151208000103A) port so field technicians can easily connect pressure gauges to verify circuit operation and troubleshoot line pressure drops.
• Vibration-Isolated Harness and Hose Routing: Utilizes specialized, heavy-duty line clamps (A230200000166) and pipe clamps (ODT009204760) to keep the massive nylon tube network secured against main frames, preventing friction chafing and line failures on rough mining terrains.

Ordering & Technical Maintenance Guidelines

1. Establish Routine Air Dryer Service: Articulated dump truck pneumatic systems are subject to continuous operation. Replace the desiccant cartridge inside the air dryer (item 34) according to Sany’s recommended service hours to preserve the life of your brake and suspension valves.
2. Bleed Air Reservoirs Daily: Open the drain valve (item 23) on the 15L air tank daily to purge out accumulated water. Excess moisture bypasses the dryer and will rust out internal valve spools.
3. Verify Chassis Layout Configurations: Pneumatic routing geometries, hose lengths, and bracket shapes can differ based on engine emission packages. Please provide your Sany SAT40C’s chassis serial prefix so our technical team can verify the exact hose curves and fitting threads before ordering.

Contact our B2B sales department today with part number ODT009340137, your desired quantities, and delivery port to receive a formal commercial quotation within 1 business day.
