ODT009340130 Brake Fluid System Assembly Sany SAT40C Articulated Dump Truck Spare Parts

ODT009340130 Hydraulic Wet-Disc Brake Fluid System for Sany SAT40C

The ODT009340130 Brake Fluid System Assembly is the complete high-pressure hydraulic braking and accumulator charge circuit designed for the Sany SAT40C articulated dump truck. Articulated haulers transport loads up to 40 tons down steep, slippery mining grades. Standard air or mechanical brake systems do not provide the safety margin required for these operations; therefore, Sany utilizes a fully hydraulic, dual-circuit wet-disc brake system. This group manages the generation of hydraulic power, high-pressure reserve accumulation, operator brake-pedal modulation, and fluid filtration.

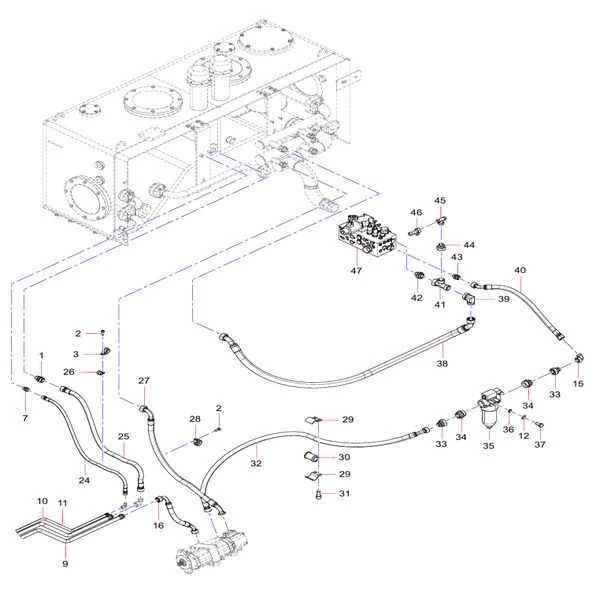

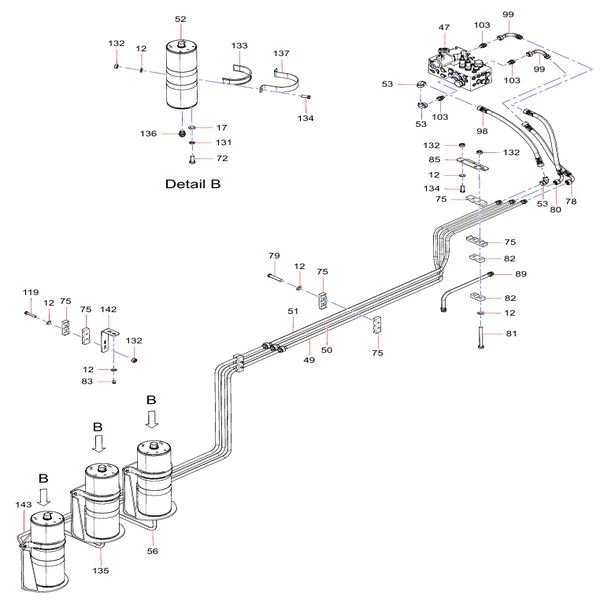

This system is powered by an engine-driven Triple Gear Pump Set (150107020054A) [1] that feeds high-pressure fluid directly through an inline High Pressure Filter (151501000022A) [1] to the central Brake Valve Block (152301000374A) [1]. To ensure immediate, failsafe braking even if the engine dies or the main pumps fail, the circuit integrates three nitrogen-charged Piston-type Accumulators (60308391) [1] secured by heavy-duty accumulator clamps (12877468). These accumulators store reserve hydraulic energy, providing multiple full-pressure emergency brake applications. We supply the fully integrated ODT009340130 brake fluid assembly, replacement gear pumps, accumulators, brake valve blocks, shuttle valves, steel tubes, and high-pressure hose assemblies. Both genuine Sany OEM components and high-integrity aftermarket alternatives are ready for B2B export shipment globally.

General Assembly Specifications

ODT009340130 Assembly Component Master Parts List

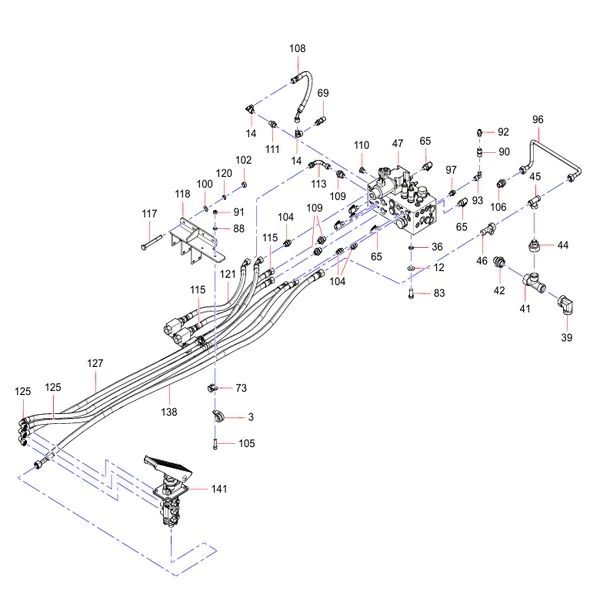

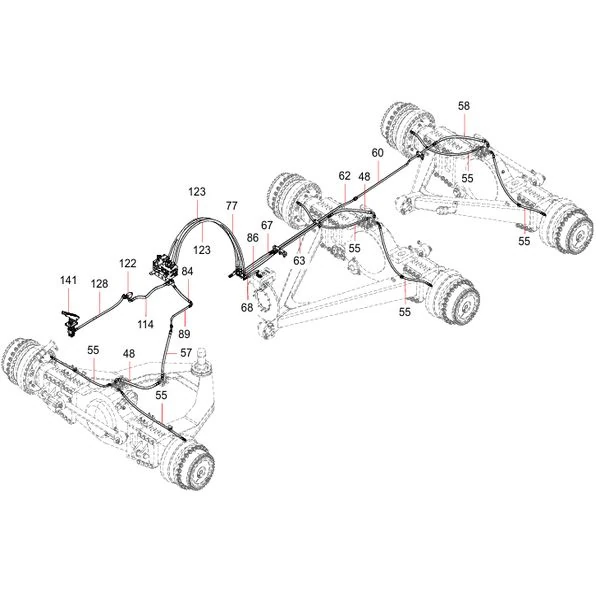

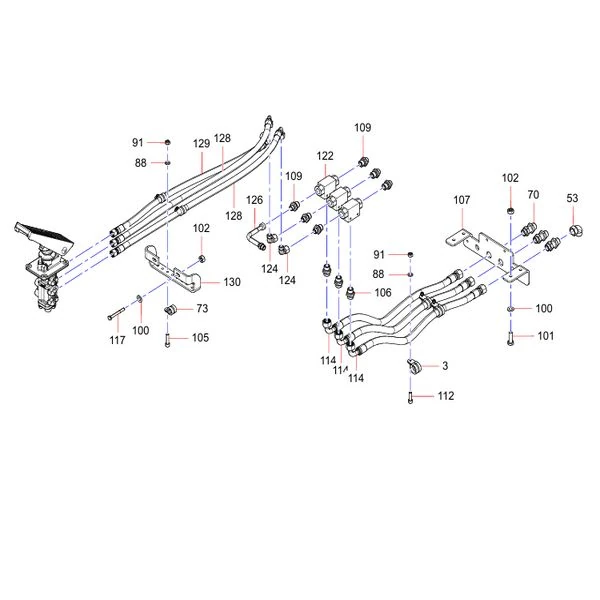

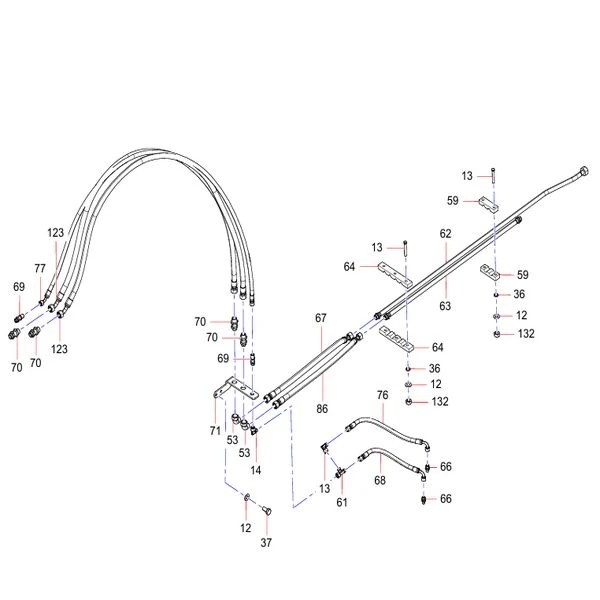

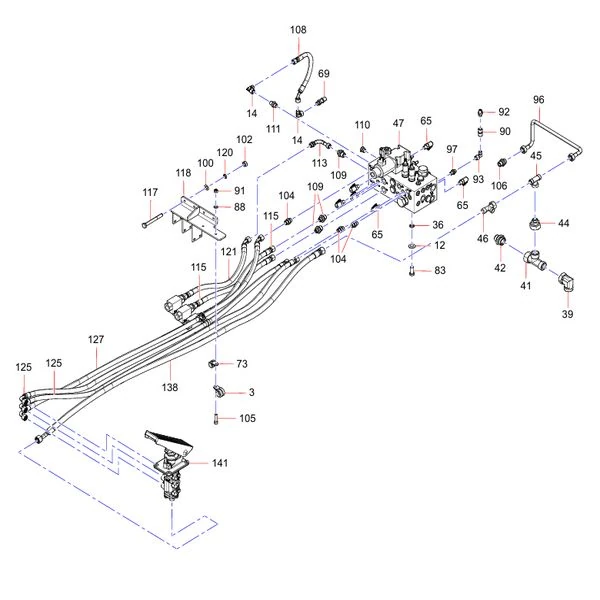

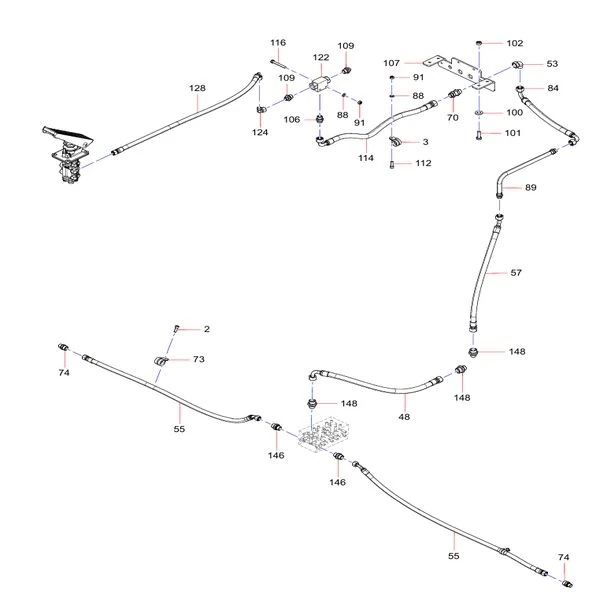

Below is the consolidated, non-redundant parts catalog breakdown of the brake fluid piping and valve group across sheets 1/10 through 5/10 in Sany’s technical manual. All listed components can be ordered individually for targeted field repairs or routine maintenance overhauls:

Note: Minor item index gaps exist in Sany’s original parts catalog. These gaps have been preserved below for strict catalog precision.
