ODT009313857 Transmission Assy Sany SAT40C Dump Truck Parts
ODT009313857 Transmission Assy — engineered for the Sany SAT40C articulated dump truck. This core drivetrain master assembly is responsible for transferring engine power to the drive axles. The complete 20-part kit features the main Transmission (130202000212A), Power Take-off (60319676), auxiliary support reinforcement plates, guard boards, and all heavy-duty mounting hardware. Genuine OEM and high-quality aftermarket options available for major drivetrain replacements.
Product Details:
ODT009313857 Transmission Assy for Sany SAT40C
The ODT009313857 Transmission Assy is the central drivetrain hub for the Sany SAT40C Articulated Dump Truck (ADT). Tasked with managing massive torque outputs from the diesel engine, this heavy-duty gearbox shifts smoothly under extreme payloads to deliver optimal traction and speed across treacherous mining and construction terrain.
This comprehensive 20-part master group includes not only the primary transmission but also the integrated Power Take-off (PTO) unit, structural auxiliary support leaf springs, guard boards to protect the casing from debris, and critical anti-vibration mounting plates. We supply the complete ODT009313857 transmission group as well as individual drivetrain sub-components to support targeted repairs. Genuine Sany OEM assemblies and tested aftermarket units are available for global dispatch.
General Assembly Specifications
| Attribute | Specification Details |
|---|---|
| Assembly Part Number | ODT009313857 |
| Assembly Name | Transmission Assy (Main Gearbox & PTO Group) |
| Compatible Brand | Sany |
| Applicable Machine | SAT40C Articulated Dump Truck |
| Component Type | Drivetrain / Transmission & Aux Power |

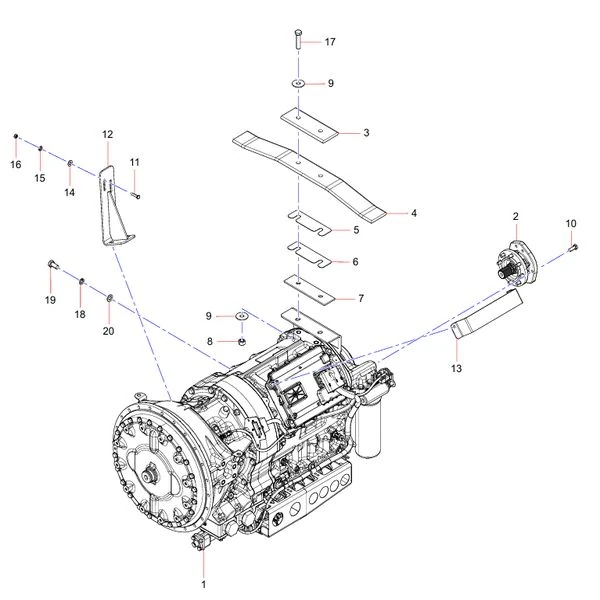

ODT009313857 Component Parts List (Master Table)
Below is the detailed 20-part breakdown of this transmission assembly according to the official Sany SAT40C parts catalog. You can request pricing for the entire system or specify individual major components:
| Index | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 130202000212A | Transmission (Main Gearbox) | 1 |
| 2 | 60319676 | Power Take-off (PTO Unit) | 1 |
| 3 | 131699000133A | Transmission Auxiliary Support Reinforcement Plate | 1 |
| 4 | 131699000132A | Transmission Auxiliary Support Leaf Spring | 1 |
| 5 | ODT006773148 | Plate (Mounting Plate) | 4 |
| 6 | ODT007315113 | Plate (Mounting Plate) | 1 |
| 7 | ODT007228592 | Plate (Mounting Plate) | 1 |
| 8 | A210307000040 | Nut | 2 |
| 9 | A210404000008 | Washer | 4 |
| 10 | A210111000038 | Bolt | 2 |
| 11 | 24002303 | Bolt | 4 |
| 12 | ODT009494826 | Mounting Bracket | 1 |
| 13 | ODT009933203 | Guard Board (Skid Plate/Shield) | 1 |
| 14 | 24000633 | Washer | 4 |
| 15 | A210401000017 | Spring Washer | 4 |
| 16 | A210307000055 | Nut | 4 |
| 17 | A210111000282 | Bolt | 2 |
| 18 | 24000514 | Spring Washer | 2 |
| 19 | A210111000263 | Bolt | 2 |
| 20 | A210405000003 | Washer | 2 |
Features & Benefits of Our Sany Drivetrain Components
- Massive Torque Capacity: The main 130202000212A Transmission is engineered with heavy-duty planetary gear sets designed to withstand the brutal cyclic loading of off-road articulation and hauling.
- Integrated Auxiliary Power: Features the pre-mounted 60319676 Power Take-off (PTO) unit, allowing seamless mechanical power transfer to the truck’s hydraulic implement pumps to power the dump bed.
- Vibration & Impact Armor: The inclusion of the Auxiliary Support Leaf Spring (131699000132A), Reinforcement Plates (131699000133A), and the rugged Guard Board (ODT009933203) ensures the transmission casing is isolated from chassis twisting and protected from bottom-out rock strikes.
Ordering & Logistics Guidelines
- Select Individual Major Assemblies: Given the scale of this system, customers typically order specific sub-assemblies. Please clearly specify if you need the entire group, or just an individual unit (e.g., “Index 1: 130202000212A Transmission” or “Index 2: 60319676 Power Take-off”).
- Provide Machine Serial Number: Transmission shift control modules, bell housings, and PTO splines can vary by production run. Providing your Sany SAT40C VIN or machine serial number guarantees 100% correct fitment.
- Global Heavy Freight Shipping: Because complete transmissions are extremely heavy cast-iron assemblies, we utilize robust wooden crating and specialized palletized sea/air freight routing to ensure safe, damage-free delivery directly to your repair facility.
Submit your inquiry today detailing the specific items you need from the ODT009313857 group, along with required quantities and your destination port. Our B2B sales team will provide a detailed commercial quote and freight lead time within 1 business day.
