ODT009312554 Left Platform Assembly Sany SAT40C Articulated Dump Truck Spare Parts
ODT009312554 Left Platform Assembly (Left Operating Catwalk & Utility Group) — compatible with Sany SAT40C articulated dump truck. This comprehensive structural deck group integrates the main Left Walking Plate Welded Component (ODT009200367), the built-in Battery Box Assembly (ODT009200716) with rubber vibration-damping backup plates, a fire Extinguisher Assembly (ODT009312491), the Left Rearview Leaf Mirror Assembly (ODT009201306), structural safety handrails, and splash-guard fenders. Engineered to ensure reliable operator cab access, tool storage, and safety. Genuine Sany OEM and quality aftermarket options are available.
Product Details:
ODT009312554 Left-Hand Operator Catwalk, Battery Box & Safety Platform Assembly for Sany SAT40C
The ODT009312554 Left Platform Assembly is a primary structural, safety, and utility deck system designed for the left-hand side of the tractor unit on the Sany SAT40C articulated dump truck. Articulated dump trucks operate under continuous, heavy loads in highly abrasive, wet, and dusty open-pit mines. To ensure operator safety during cabin access, machine pre-checks, and maintenance, Sany utilizes this comprehensive left-hand platform group. It provides a wide, slip-resistant walking deck, multiple safety grab handrails, the main left-hand rearview mirror, and several essential utility compartments.
This group integrates the robust steel Welded Component (ODT009200367) platform deck and an integrated heavy-duty Battery Box Assembly (ODT009200716) to house the truck’s high-capacity 24V starting batteries. To prevent these heavy batteries from cracking or failing due to severe chassis vibrations, the box contains specialized **Rubber Backup Plates** (ODT009199797 & ODT009195768). For safety and maintenance, the assembly is pre-equipped with an **Extinguisher Assembly** (ODT009312491) bracket, a **Switch Box Assembly** (ODT009200653) for power isolation, and a **Leaf Mirror Assembly** (ODT009201306). We supply the fully integrated ODT009312554 left platform group, replacement battery boxes, handrails, mirrors, rubber mudguards, and non-slip footplates. Both genuine Sany OEM kits and highly reliable aftermarket options are in stock for rapid international shipping.
General Assembly Specifications
| Attribute | Specification Details |
|---|---|
| Assembly Part Number | ODT009312554 |
| Assembly Name | Left Platform Assembly (Left Catwalk & Utility Group) |
| Compatible Brand | Sany |
| Applicable Machine | SAT40C Articulated Dump Truck |
| Category | Sany Articulated Dump Truck Frame & Chassis Structural Parts |

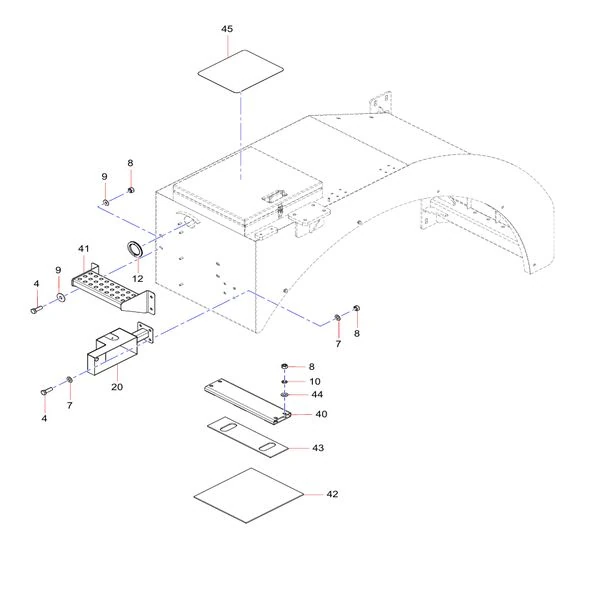

ODT009312554 Assembly Component Master Parts List
Below is the consolidated, non-redundant parts catalog breakdown of the left platform assembly across both sheets in Sany’s technical manual. All listed components can be ordered individually for targeted field repairs or routine maintenance overhauls:
Note: Minor item index gaps exist in Sany’s original parts catalog (for example, index 35 is skipped on Page 2 but mapped on Page 1). These gaps have been preserved below for strict catalog precision.
| Index | Part Number | Description / English Part Name | Qty |
|---|---|---|---|
| 1 | A210111000023 | Bolt | 6 |
| 2 | A210405000003 | Washer | 14 |
| 3 | A210111000100 | Bolt | 5 |
| 4 | A210111000039 | Bolt | 38 |
| 5 | 11180307 | Rubber Pad | 1 |
| 6 | 12950124 | Limit Plate | 1 |
| 7 | A210405000001 | Washer | 23 |
| 8 | A210307000001 | Nut | 66 |
| 9 | A210404000004 | Washer | 80 |
| 10 | 24000513 | Spring Washer | 4 |
| 11 | A210404000003 | Washer | 2 |
| 12 | 11740159 | Rubber bar (Rubber Seal Bar) | 1 |
| 13 | ODT009200367 | Welded component (Main Catwalk Deck Plate) | 1 |
| 14 | ODT009200716 | Battery Box Assembly (enclosure box) | 1 |
| 15 | ODT007725983 | fender (Main Steel Mudguard) | 1 |
| 16 | A210307000040 | Nut | 4 |
| 17 | ODT008028656 | Bracket (Support Bracket) | 1 |
| 18 | A210405000007 | Washer | 16 |
| 19 | A210307000012 | Nut | 8 |
| 20 | ODT009200653 | Switch box assembly (Electrical Switch Housing) | 1 |
| 21 | ODT009187178 | Footplate (Anti-slip Step Plate) | 2 |
| 22 | ODT009187140 | Footplate (Anti-slip Step Plate) | 1 |
| 23 | ODT009463002 | Handrail (Safety Grab Rail A) | 1 |
| 24 | 21008068 | Bolt | 4 |
| 25 | ODT009188603 | Rubber fender (Flexible Mud Flap) | 1 |
| 26 | ODT007724826 | Footplate assembly (Integrated Step Plate Assembly) | 1 |
| 27 | ODT008028649 | Plate (Clamping Plate) | 2 |
| 28 | ODT007161297 | plate (Joint Plate) | 4 |
| 29 | ODT009587947 | Connecting Plate | 2 |
| 30 | A210111000040 | Bolt | 8 |
| 31 | A210111000198 | Bolt | 8 |
| 32 | ODT009187069 | Footplate (Anti-slip Step Plate) | 1 |
| 33 | A210111000091 | Bolt | 8 |
| 34 | ODT009200340 | Handrail (Safety Grab Rail B) | 1 |
| 35 | ODT009312491 | Extinguisher assembly (Fire Extinguisher bracket) | 1 |
| 36 | ODT009201306 | Leaf mirror assembly (Left Rearview Mirror Assembly) | 1 |
| 37 | A210307000028 | Nut | 14 |
| 38 | A210111000243 | Bolt | 12 |
| 39 | 120107050031A | Washer | 24 |
| 40 | ODT009200464 | plate assemble (Mounting Plate Assembly) | 1 |
| 41 | ODT009200206 | Footplate (Anti-slip Step Plate) | 1 |
| 42 | ODT009199797 | Rubber backup plate of battery (Vibration Damping Plate A) | 1 |
| 43 | ODT009195768 | Rubber backup plate of battery (Vibration Damping Plate B) | 1 |
| 44 | 24000639 | Washer | 4 |
| 45 | 11507050 | Antiskid paste (Non-slip Tread Tape) | 1 |
| 46 | A210111000054 | Bolt | 4 |
Features & Benefits of Our Left-Hand Operating Platform
- Heavy-Duty Welded Platform Base: The primary Left Walking Plate Welded Component (ODT009200367) is constructed from robust structural steel plate to provide a solid, non-yielding deck floor for operators and technicians.
- Protected Battery Containment: Features an integrated Battery Box Assembly (ODT009200716) that sits securely under the deck. It incorporates dual rubber backup damping plates (ODT009199797 and ODT009195768) to cradle heavy starting batteries, isolating them from severe engine and frame vibrations.
- Safety Handrails and Catwalk Access: Includes multiple grab handrails (ODT009463002 and ODT009200340) to provide secure three-point contact for operators accessing the cab or servicing the engine.
- Vibration-Isolated Rearview Mirror: The heavy-duty Left Rearview Leaf Mirror Assembly (ODT009201306) is engineered to withstand extreme terrain shocks while providing clear side visibility for safe hauling.
- Double-Layer Splash Mudguards: Integrates a rigid steel mudguard Fender (ODT007725983) and a flexible Rubber Fender (ODT009188603) flap to prevent tyres from slinging water, clay, and abrasive mining stones onto the operator platform.
Ordering & Technical Maintenance Guidelines
- Verify Chassis Layout and Cabin Series: Left platform brackets, handrail bend shapes, and battery box dimensions can vary depending on engine emissions levels and cabin styles. Please provide your Sany SAT40C’s chassis serial prefix so our technical team can verify the exact dimensions before shipping.
- Inspect Battery Damping Plates: Over time, the internal rubber battery backup plates (items 42 & 43) can harden or split due to constant compression and heat. Inspect these dampers during battery maintenance and replace them to prevent physical battery casing cracks.
- Replace Worn Mud Flaps and Grip Tapes: The flexible rubber mudguard flap (item 25) and antiskid paste (item 45) are wearable items subject to friction and tearing. Replace them periodically to ensure continuous splash protection and secure operator footing.
Contact our B2B sales department today with part number ODT009312554, your desired quantities, and delivery port to receive a formal commercial quotation within 1 business day.
