ODT009286253 Hydraulic Hoisting System Sany SAT40C Dump Truck Parts
ODT009286253 Hydraulic Hoisting System — engineered for the Sany SAT40C articulated dump truck. This extensive master group powers the truck’s heavy-duty dump bed lift circuit. The comprehensive plumbing and valve assembly kit includes the open plunger pump, high-pressure filter, switching valve blocks, hydraulic control reversing valves, supporting oil cylinders, and an extensive network of steel tube assemblies and reinforced rubber hoses. Genuine OEM and high-quality aftermarket options available for major hydraulic overhauls.
Product Details:
ODT009286253 Hydraulic Hoisting System for Sany SAT40C
The ODT009286253 Hydraulic Hoisting System (referenced in the catalog as Hydraulic hoisting Hydraulic hoisting) is the core high-pressure lifting architecture designed for the Sany SAT40C Articulated Dump Truck (ADT). This master group controls the massive force required to elevate and empty fully loaded dump beds safely under severe off-road working conditions.
This master combination group encompasses the entire bed-lift circuit across 3 detailed catalog pages. It integrates the primary open plunger pump, high-pressure filtration units, lifting floating valve blocks, hydraulic control reversing valves, supporting lift cylinders, and a comprehensive network of specialized steel tubes and high-pressure hose assemblies. We supply individual replacement lines, valves, or the complete system components to support your fleet maintenance. Genuine Sany OEM parts and premium aftermarket alternatives are available for global dispatch.
General Assembly Specifications
| Attribute | Specification Details |
|---|---|
| Master Group Part Number | ODT009286253 |
| Group Name | Hydraulic Hoisting System (Dump Bed Lift Circuit) |
| Compatible Brand | Sany |
| Applicable Machine | SAT40C Articulated Dump Truck |
| Component Type | Chassis Hydraulics / Dump Bed Hoist System |

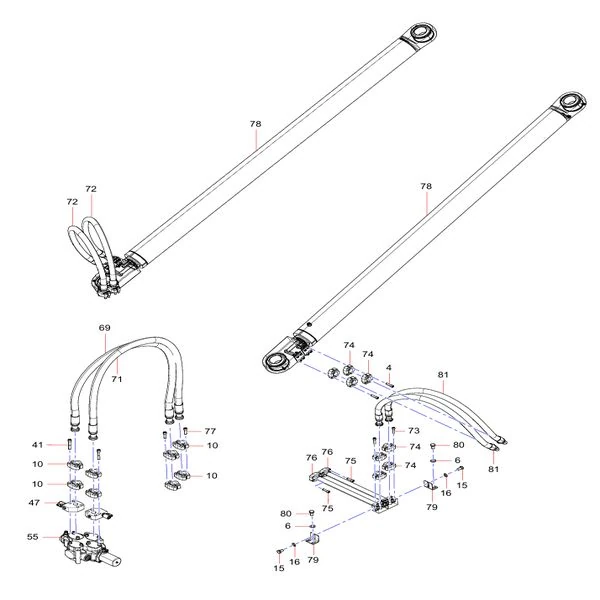

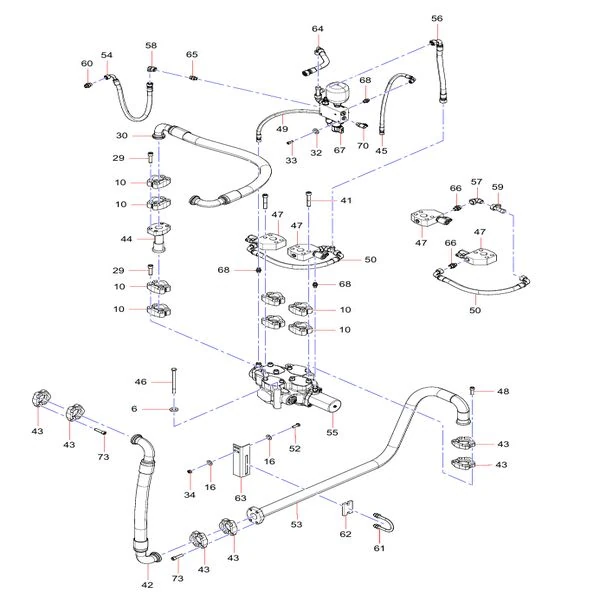

ODT009286253 Component Parts List (Master Table)
Below is the detailed master breakdown of the Hydraulic Hoisting System according to the official Sany SAT40C parts catalog (covering Pages 1 through 3 of the assembly group). You can request pricing for specific valves, cylinders, or individual line items:
| Index | Part Number | Description | Qty |
|---|---|---|---|
| 1 | A210855000014 | Throat Clamp | 4 |
| 2 | ODT007934357 | Suction Hose | 1 |
| 3 | ODT005551804 | Steel Tube Assembly | 1 |
| 4 | A210111000119 | Bolt | 16 |
| 5 | 60024155 | Split Flange | 2 |
| 6 | A210405000001 | Washer | 15 |
| 7 | A210111000204 | Bolt | 4 |
| 8 | 150101040032A | Open Plunger Pump (Hydraulic Pump) | 1 |
| 9 | B210780000107 | Fitting Adapter | 1 |
| 10 | B210780000693 | Flange Joint | 18 |
| 11 | A210204000349 | Screw | 4 |
| 12 | 151009211157A | Rubber Hose | 1 |
| 13 | 151007060025A | Hose Assembly | 1 |
| 14 | A229900002582 | Fitting Adapter | 1 |
| 15 | A210111000011 | Bolt | 6 |
| 16 | A210405000011 | Washer | 11 |
| 17 | A210204000144 | Bolt | 2 |
| 18 | 21008451 | Tube Clamp | 1 |
| 19 | ODT007678822 | Support | 1 |
| 20 | A210404000009 | Washer | 2 |
| 21 | A210307000016 | Nut | 2 |
| 22 | 60098752 | Fitting, Adapter | 2 |
| 23 | A210111000202 | Bolt | 4 |
| 24 | 151501000064A | High-pressure Filter | 1 |
| 25 | A210401000002 | Spring Washer | 4 |
| 26 | B210780000006 | Flange Joint | 4 |
| 27 | 152301000196A | Switching Valve Block | 1 |
| 28 | ODT007672853 | Steel Tube Assembly | 1 |
| 29 | A210204000353 | Screw | 16 |
| 30 | 151009211122A | Hose Assembly | 1 |
| 31 | ODT007690259 | Support | 1 |
| 32 | A210405000007 | Washer | 7 |
| 33 | A210204000147 | Screw | 7 |
| 34 | A210307000017 | Nut | 3 |
| 35 | ODT007678930 | Support | 1 |
| 36 | A210111000018 | Bolt | 1 |
| 37 | 60008274 | Tube Clamp | 1 |
| 38 | ODT007673212 | Steel Tube Assembly | 1 |
| 39 | 151009211272A | Rubber Hose | 1 |
| 41 | A210204000468 | Screw | 8 |
| 42 | 151010010277A | Hose Assembly | 1 |
| 43 | B210780000249 | Flange Joint | 6 |
| 44 | ODT007886697 | Steel Tube Assembly | 1 |
| 45 | 151002260173A | Hose Assembly | 1 |
| 46 | A210111000179 | Bolt | 3 |
| 47 | 152301000186A | Lifting Floating Valve Block | 2 |
| 48 | A210204000337 | Screw | 4 |
| 49 | 21022680 | Rubber Hose | 1 |
| 50 | 151005160322A | Hose Assembly | 1 |
| 52 | A210111000025 | Bolt | 2 |
| 53 | ODT007677128 | Steel Tube Assembly | 1 |
| 54 | 151004160037A | Rubber Hose | 1 |
| 55 | 150403050006A | Hydraulic Control Reversing Valve | 1 |
| 56 | B230103004808 | Hose | 1 |
| 57 | B210780000025 | 90° Combination Fitting | 2 |
| 58 | B210780000024 | Combination Fitting | 1 |
| 59 | B210780000017 | T-Joint | 2 |
| 60 | B210780000180 | Fitting Adapter | 1 |
| 61 | 60008276 | Tube Clamp | 1 |
| 62 | 180204000043A | Zip Tie | 3 |
| 63 | ODT007677784 | Support | 1 |
| 64 | B230103001956 | Hose | 1 |
| 65 | B210780000847 | End Straight Through Connector | 1 |
| 66 | B210780000042 | Adapter | 3 |
| 67 | 152301000144A | Pilot Oil Source Valve Block | 1 |
| 68 | B210780000176 | Fitting Adapter | 4 |
| 69 | 151009211061A | Hose Assembly | 1 |
| 70 | B210770000003 | Pressure Gauge Connector | 4 |
| 71 | 151009211062A | Hose Assembly | 1 |
| 72 | 23001566 | Hose | 2 |
| 73 | A210204000462 | Screw | 28 |
| 74 | B210780000004 | Flange Joint | 16 |
| 75 | A210204000338 | Screw | 16 |
| 76 | ODT009542830 | Steel Tube Assembly | 2 |
| 77 | A210204000454 | Screw | 12 |
| 78 | 150901042102A | Supporting Oil Cylinder (Hoist Lift Cylinder) | 2 |
| 79 | ODT007887281 | Support | 2 |
| 80 | A210111000036 | Bolt | 4 |
| 81 | B230103006348 | Rubber Hose | 2 |
Features & Benefits of Our Sany Hoisting Systems
- Uncompromising Lift Capacity: Features dual Supporting Oil Cylinders (150901042102A) and an Open Plunger Pump (150101040032A) engineered to quickly elevate maximum wet payloads with zero hydraulic sag.
- Precise Flow Control: Includes the 152301000186A Lifting Floating Valve Blocks and 150403050006A Hydraulic Control Reversing Valves, ensuring smooth, predictable bed-lowering and tipping control.
- Severe-Duty Plumbing Network: Built with multi-layer high-pressure hose assemblies and precision-formed steel tube assemblies designed to withstand continuous pressure spikes without weeping or bursting.
Ordering & Inquiry Guidelines
- Specify Component Requirements: Due to the extensive nature of this 63-item master hoisting schematic, please clearly specify whether you require major assemblies (such as the lift cylinders or hydraulic pump) or specific lines/fittings.
- Provide Machine Serial Number: Valve block routings and cylinder pin-to-pin dimensions can change based on production revisions. Providing your Sany SAT40C VIN ensures 100% correct component matching.
- Heavy Freight Logistics: Major components like hoist cylinders and valve manifolds require secure palletized shipping. Our logistics team handles global heavy freight forwarding to get your truck back in service fast.
Submit your inquiry today detailing the specific items you need from the ODT009286253 group, along with required quantities and your destination port. Our B2B sales team will provide a detailed quote and lead time within 1 business day.
