ODT009207650 Hydraulic Tank Mounting Assembly Sany SAT40C Dump Truck Parts
ODT009207650 Hydraulic Tank Mounting Assembly — engineered for the Sany SAT40C articulated dump truck. This massive structural and fluid-storage master group serves as the heart of the truck’s hydraulic architecture. The complete 29-part assembly includes the main Hydraulic Tank (ODT009207461), precision-bent steel tube assemblies, tank line supports, ball valves for system isolation, check valves, and all heavy-duty mounting hardware. Genuine OEM and high-quality aftermarket options available for major chassis overhauls.
Product Details:
ODT009207650 Hydraulic Tank Mounting Assembly for Sany SAT40C
The ODT009207650 Hydraulic Tank Mounting Assembly is a foundational fluid power component designed for the Sany SAT40C Articulated Dump Truck (ADT). In heavy earthmoving equipment, the primary hydraulic tank must securely store hundreds of gallons of hydraulic fluid, supplying the immense flow rates required by the steering articulation cylinders, the dump bed hoist mechanisms, and the suspension systems.
This comprehensive 29-part master combination group goes far beyond just a bare tank. It includes the heavy-duty reservoir, multiple steel tube assemblies for rigid fluid routing, essential check valves and ball valves for system maintenance, and an extensive array of vibration-isolating tube clamps and high-tensile hardware. We supply the complete ODT009207650 assembly as well as its individual plumbing and mounting components. Genuine Sany OEM parts and premium aftermarket alternatives are available for global dispatch.
General Assembly Specifications
| Attribute | Specification Details |
|---|---|
| Assembly Part Number | ODT009207650 |
| Assembly Name | Hydraulic Tank Mounting Assembly (Main Hydraulic Fluid Reservoir Group) |
| Compatible Brand | Sany |
| Applicable Machine | SAT40C Articulated Dump Truck |
| Component Type | Chassis Hydraulics / Fluid Storage & Routing |

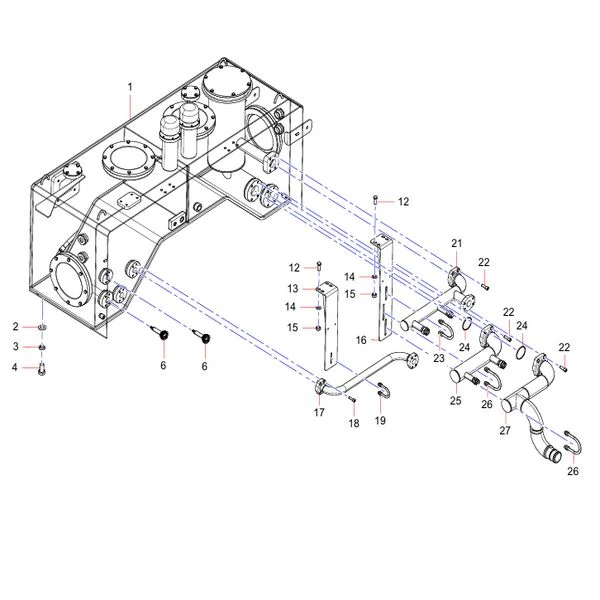

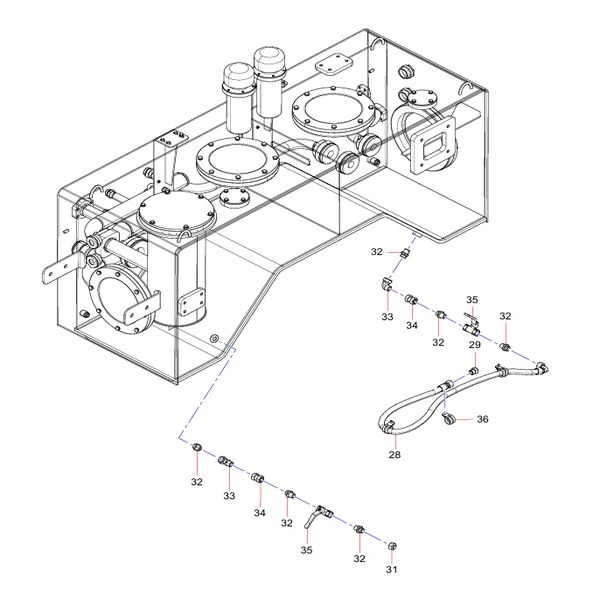

ODT009207650 Component Parts List (Master Table)
Below is the detailed 29-part breakdown of this hydraulic tank mounting group according to the official Sany SAT40C parts catalog. You can order the entire system or request specific individual part numbers:
| Index | Part Number | Description | Qty |
|---|---|---|---|
| 1 | ODT009207461 | Hydraulic Fuel Tank Assy (Hydraulic Fluid Reservoir) | 1 |
| 2 | 24000642 | Washer | 16 |
| 3 | 24000514 | Spring Washer | 16 |
| 4 | 24000312 | Bolt | 16 |
| 6 | 150407030077A | Check Valve | 2 |
| 12 | 24000275 | Bolt | 8 |
| 13 | ODT007809146 | Tank Line Support | 1 |
| 14 | 24000637 | Washer | 8 |
| 15 | 24000868 | Nut | 8 |
| 16 | ODT007809122 | Tank Line Support | 1 |
| 17 | ODT007822350 | Steel Tube Assembly | 1 |
| 18 | 24000433 | Screw | 4 |
| 19 | 60008274 | Tube Clamp | 1 |
| 21 | ODT007821883 | Steel Tube Assembly | 1 |
| 22 | 24000438 | Screw | 12 |
| 23 | 60008276 | Tube Clamp | 1 |
| 24 | B230101002072 | O-ring | 2 |
| 25 | ODT007820282 | Steel Tube Assembly | 1 |
| 26 | 60008277 | Tube Clamp | 2 |
| 27 | ODT007819819 | Steel Tube Assembly | 1 |
| 28 | B230103000284 | Rubber Hose | 1 |
| 29 | B210780000078 | Plug | 1 |
| 31 | 21017994 | Plug | 1 |
| 32 | 21002894 | Fitting Adapter | 6 |
| 33 | B210780000025 | 90° Combination Fitting | 2 |
| 34 | B210780000329 | Adapter | 2 |
| 35 | A220400000005 | Ball Valve (Isolation Service Valve) | 2 |
| 36 | A230200000167 | Line Clamp | 4 |
| 37 | 60219199 | Check Valve | 2 |
Features & Benefits of Our Sany Hydraulic Fluid Storage Components
- Secure Fluid Storage: The main ODT009207461 Hydraulic Tank is constructed from heavy-gauge, puncture-resistant materials, specifically designed to withstand the bouncing, twisting, and rock impacts generated by articulated off-road hauling.
- Service-Friendly Valving: The inclusion of heavy-duty Ball Valves (A220400000005) and Check Valves (150407030077A, 60219199) allows field mechanics to safely isolate and service specific hydraulic circuits (like a blown hoist cylinder hose) without draining the entire massive fluid reservoir.
- Vibration-Proof Routing: High-pressure hydraulic fluid generates severe line shock. This kit includes factory-bent steel tube assemblies, tank line supports, and multiple heavy-duty tube clamps to ensure lines remain rigidly secured against the chassis, eliminating the risk of metal-fatigue fractures.
Ordering & Logistics Guidelines
- Select Individual Parts: Given the massive scale of this 29-part master assembly, customers typically order specific sub-components. Please clearly specify if you need the entire tank system, or just individual plumbing components (e.g., “Index 17: ODT007822350 Steel Tube”).
- Translation Notice: In the Sany catalog, the main hydraulic reservoir (Index 1) is translated as a “Fuel Tank.” Rest assured, part number ODT009207461 is the correct OEM Hydraulic Fluid Reservoir for this assembly group.
- Global Heavy Freight Shipping: Because complete hydraulic tanks are bulky, heavy assemblies, we utilize robust wooden crating and specialized palletized sea/air freight routing to ensure safe, damage-free delivery directly to your repair facility or mine site.
Submit your inquiry today detailing the specific items you need from the ODT009207650 group, along with required quantities and your destination port. Our B2B sales team will provide a detailed commercial quote and freight lead time within 1 business day.
