ODT009189068 Radiator Installation Assembly Sany SAT40C Articulated Dump Truck Spare Parts
ODT009189068 Radiator Installation Assembly (Complete Engine Cooling Package) — compatible with Sany SAT40C articulated dump truck. This integrated front-end cooling group features the primary Radiator (160801030039A), secondary core Radiator (160801050032A), coolant Expansion Tank (HQ1300200QQ21), structural support brackets, shock absorbers, damping pull rods, molded return/intake pipes, and heavy-duty T-bolt spring clamps. Engineered to provide high-capacity thermal cooling and vibration-isolated chassis mounting under severe mining haulage. Genuine Sany OEM and quality aftermarket options are available.
Product Details:
ODT009189068 Radiator Mounting, Installation & Piping Group for Sany SAT40C
The ODT009189068 Radiator Installation Assembly represents the complete front-end engine cooling and heat exchange package for the Sany SAT40C articulated dump truck [1]. Articulated haulers generate immense thermal loads across their engine, torque converter, and hydraulic cylinders while traversing rugged mining roads and steep inclines. To maintain a safe operating temperature, this heavy-duty cooling package integrates two primary cooling cores: the main engine coolant Radiator (160801030039A) and an auxiliary core Radiator / Charge Air Cooler (160801050032A).
To prevent premature core cracking from intense off-road impacts and chassis torsional twists, Sany mounts the heavy radiator frame using specialized rubber Shock Absorbers (A229900003147), Damping Rods (ODT005921732), and adjustable Damping Pull Rods (131602000009B). This isolated mounting design absorbs mechanical shocks before they transfer to the aluminum cooling fins. The closed-loop system is regulated by a pressurized Expansion Tank (HQ1300200QQ21), managing fluid expansion and venting out trapped air pockets.
We supply the fully integrated ODT009189068 radiator installation group as well as individual core radiators, expansion tanks, molded hoses, brackets, and heavy-duty hose clamps. Both genuine Sany OEM parts and premium-grade aftermarket alternatives are ready for B2B export shipment globally.
General Assembly Specifications
| Attribute | Specification Details |
|---|---|
| Assembly Part Number | ODT009189068 |
| Assembly Name | Radiator Installation Assembly (Radiator Mounting Group) |
| Compatible Brand | Sany |
| Applicable Machine | SAT40C Articulated Dump Truck |
| Category | Sany Articulated Dump Truck Engine Cooling Parts |

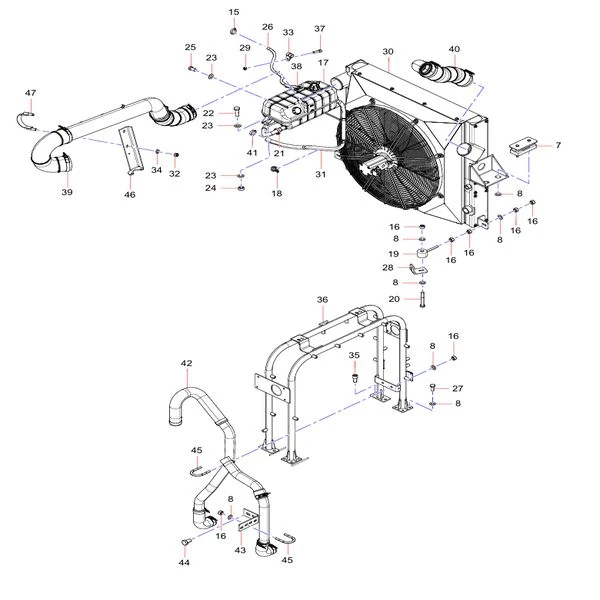

ODT009189068 Assembly Component Parts List (Master Table)
Below is the complete parts catalog breakdown of the radiator installation assembly across both sub-sections of the Sany SAT40C technical manual. All listed components can be ordered individually for targeted field repairs or overhaul maintenance:
| Index | Part Number | Description / English Part Name | Qty |
|---|---|---|---|
| 1 | 160801030039A | Radiator (Main Engine Coolant Radiator Core) | 1 |
| 2 | A210307000029 | Nut | 4 |
| 3 | 24000515 | Spring Washer | 4 |
| 4 | 10700960 | Gasket | 27 |
| 5 | A229900003147 | Shock Absorber (Rubber Damping Mount) | 4 |
| 6 | 10700947 | Sleeve (Spacer Sleeve) | 4 |
| 7 | ODT005921730 | Radiator and Pipe Installation (Plumbing Set) | 4 |
| 8 | A210405000001 | Washer | 27 |
| 9 | ODT005921732 | Damping Rod (Vibration Strut Rod) | 2 |
| 10 | A210307000028 | Nut | 8 |
| 11 | A210110000321 | Bolt | 4 |
| 12 | ODT005922017 | Return Pipe | 1 |
| 13 | 60250995 | T-type Spring Clamp | 2 |
| 14 | 60185863 | T-type Spring Clamp | 3 |
| 15 | A210855000003 | Throat Clamp (Hose Clamp) | 4 |
| 16 | A210307000001 | Nut | 16 |
| 17 | HQ1300200QQ21 | Expansion Tank (Deaeration / Surge Tank) | 1 |
| 18 | 60000422 | Clamp | 7 |
| 19 | 131602000009B | Damping Pull Rod (Adjustable Stay Rod) | 4 |
| 20 | A210110000013 | Bolt | 2 |
| 21 | A210855000020 | Hole-shaped Throat Clamp | 1 |
| 22 | A210111000023 | Bolt | 2 |
| 23 | A210405000011 | Washer | 6 |
| 24 | A210307000036 | Nut | 2 |
| 25 | A210111000125 | Bolt | 3 |
| 26 | ODT007887288 | Pipe (Coolant Hose) | 4 |
| 27 | A210111000037 | Bolt | 9 |
| 28 | ODT007887343 | Bracket (Support Bracket) | 2 |
| 29 | A210307000016 | Nut | 9 |
| 30 | 160801050032A | Radiator (Secondary core / Charge Air Cooler) | 1 |
| 31 | ODT009120749 | Pipe | 1 |
| 32 | A210307000040 | Nut | 2 |
| 33 | 60000420 | Tube Clamp | 1 |
| 34 | A210405000003 | Washer | 2 |
| 35 | A210204000032 | Screw | 4 |
| 36 | ODT009168494 | Bracket (Canister / Frame Bracket) | 2 |
| 37 | A210204000132 | Screw | 8 |
| 38 | ODT005922451 | Pipe | 1 |
| 39 | ODT007282268 | Intake Pipe | 16 |
| 40 | ODT007307731 | Intake Pipe | 1 |
| 41 | A210855000066 | Hole-shaped Clamp | 7 |
| 42 | ODT007282620 | Return Pipe | 4 |
| 43 | ODT005922435 | Bracket (Lower Support Bracket) | 6 |
| 44 | A210111000226 | Bolt | 4 |
| 45 | 21025050 | Bolt | 3 |
| 46 | ODT005922452 | Bracket | 2 |
| 47 | 14353673 | Clamp | 1 |
