ODT007886865 Transfer Case Cooling Sany SAT40C Dump Truck Parts
ODT007886865 Transfer Case Cooling — engineered for the Sany SAT40C articulated dump truck. This comprehensive fluid routing assembly ensures hot gear oil is effectively circulated from the transfer case (drop box) to the oil cooler. The massive 24-part kit includes heavy-duty welded steel tubes, high-temperature rubber hose assemblies, fitting adapters, pipe nipples, and vibration-dampening support brackets. Genuine OEM and high-quality aftermarket options available for drivetrain overhauls.
Product Details:
ODT007886865 Transfer Case Cooling Assembly for Sany SAT40C
The ODT007886865 Transfer Case Cooling assembly is a vital fluid-routing and thermal management network designed for the Sany SAT40C Articulated Dump Truck (ADT). The transfer case (or drop box) is subjected to immense torque and friction as it splits engine power between the front and rear axles. To prevent the gear oil from overheating and breaking down, this complex plumbing system routes the super-heated fluid to the cooling core and safely returns it to the gearbox.
Because these lines run along the chassis, they must withstand severe radiant heat, high internal fluid pressures, and constant external vibration. This complete 24-part assembly provides every steel tube, rubber hose, fitting adapter, and support bracket necessary to completely replumb your transfer case cooling circuit. We supply the complete ODT007886865 master group as well as individual hoses and fittings to support targeted leak repairs. Genuine Sany OEM parts and premium aftermarket alternatives are available for global dispatch.
General Assembly Specifications
| Attribute | Specification Details |
|---|---|
| Group Part Number | ODT007886865 |
| Group Name | Transfer Case Cooling (Fluid Plumbing & Hose Group) |
| Compatible Brand | Sany |
| Applicable Machine | SAT40C Articulated Dump Truck |
| Component Type | Drivetrain / Thermal Management Plumbing |

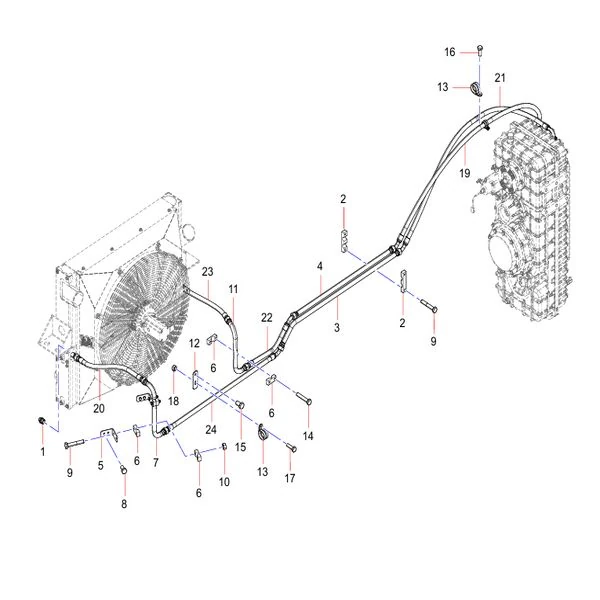

ODT007886865 Component Parts List (Master Table)
Below is the detailed 24-part breakdown of this transfer case cooling plumbing group according to the official Sany SAT40C parts catalog. You can order the entire system or request specific individual part numbers:
| Index | Part Number | Description | Qty |
|---|---|---|---|
| 1 | B210780000712 | Fitting Adapter | 4 |
| 2 | ODT005915996 | Pipe Nip (Pipe Nipple) | 4 |
| 3 | ODT007469032 | Steel Tube | 1 |
| 4 | ODT007885511 | Welding Steel Pipe | 1 |
| 5 | ODT007469105 | Bracket | 2 |
| 6 | ODT005915994 | Pipe Nip (Pipe Nipple) | 6 |
| 7 | ODT007468673 | Welding Steel Tube | 1 |
| 8 | A210111000011 | Bolt | 4 |
| 9 | A210110000267 | Bolt | 8 |
| 10 | A210307000017 | Nut | 4 |
| 11 | ODT007885338 | Welding Elbow | 1 |
| 12 | ODT007886634 | Rubber Hose Support | 1 |
| 13 | 60016762 | Clamp | 5 |
| 14 | A210111000030 | Bolt | 2 |
| 15 | A210111000036 | Bolt | 1 |
| 16 | A210111000079 | Bolt | 4 |
| 17 | A210111000080 | Bolt | 1 |
| 18 | A210307000016 | Nut | 1 |
| 19 | 151007060011A | Hose Assembly | 1 |
| 20 | 151007110085A | Rubber Hose | 1 |
| 21 | 151007060057A | Rubber Hose | 1 |
| 22 | 151007060061A | Rubber Hose | 1 |
| 23 | 151007060062A | Rubber Hose | 1 |
| 24 | 151007060058A | Rubber Hose | 1 |
Features & Benefits of Our Sany Drivetrain Plumbing
- Severe-Duty Tubing: The welded steel tubes (Indexes 3, 4, 7) are engineered to resist punctures from flying rocks and debris, ensuring critical cooling fluid always reaches the transfer case uninterrupted.
- High-Pressure Rubber Hoses: The synthetic rubber hose assemblies (Indexes 19-24) are formulated with multi-layer reinforcement to withstand intense gear oil heat and high internal flow pressures without ballooning or bursting.
- Vibration-Proof Routing: This kit includes the exact OEM rubber hose supports (12) and heavy-duty clamps (13) necessary to secure the plumbing firmly against the chassis, eliminating hose chafing and metal fatigue from off-road bouncing.
Ordering & Inquiry Guidelines
- Select Individual Part Numbers: You can order the entire 24-part cooling plumbing group for a complete drivetrain overhaul, or request specific hoses and fittings to fix an isolated leak (e.g., “Index 20: 151007110085A Rubber Hose”).
- Mandatory Hose Replacement: If one rubber hose in the cooling circuit has hardened or blown, OEM best practices dictate replacing all adjacent rubber hoses, as they have been subjected to the exact same thermal degradation.
- Provide Machine Serial Number: Hose lengths, pipe bends, and fitting threads can vary slightly depending on the specific transfer case paired with your truck’s chassis. Providing your Sany SAT40C VIN ensures 100% correct fitment.
Submit your inquiry today detailing the specific items you need from the ODT007886865 assembly, along with required quantities and your destination country. Our B2B sales team will provide a detailed quote and lead time within 1 business day.
