ODT007589833 Transition Box Assembly Sany SAT40C Articulated Dump Truck Spare Parts

ODT007589833 Drivetrain Hanger Bearing Transition Box for Sany SAT40C

The ODT007589833 Transition Box Assembly (commonly referred to in heavy machinery maintenance as the propshaft midship hanger bearing block) is a primary mechanical support and power transmission assembly designed for the drivetrain of the Sany SAT40C articulated dump truck. On articulated haul trucks, the distance from the transmission output to the middle and rear axle differentials is extremely long and must cross the vehicle’s central articulation pivot. Placing a single, long drive shaft would result in severe high-speed whipping, imbalance, and universal joint failure. To prevent this, Sany splits the drivetrain into multi-segmented propshafts. The transition box functions as the vital **midship support and bearing station**, anchoring the rotating shafts safely along the frame while absorbing heavy axial and radial loads.

This heavy-duty assembly features a rigid cast-steel Box Body (ODT007589338) housing an internal Shaft (ODT007558814) supported by two high-load rolling bearings (29000937). It utilizes a specialized Floating Oil Seal (60227257) to exclude abrasive mud, clay, and water in mining sites while keeping internal gear oils sealed. Adjustable gap shims are included to precisely calibrate bearing pre-load to eliminate driveline vibration harmonics. We supply the fully integrated ODT007589833 transition box as well as individual replacement shafts, bearings, and heavy-duty duo-cone seals. Both genuine Sany OEM kits and highly reliable aftermarket options are in stock for rapid international shipping.

General Assembly Specifications

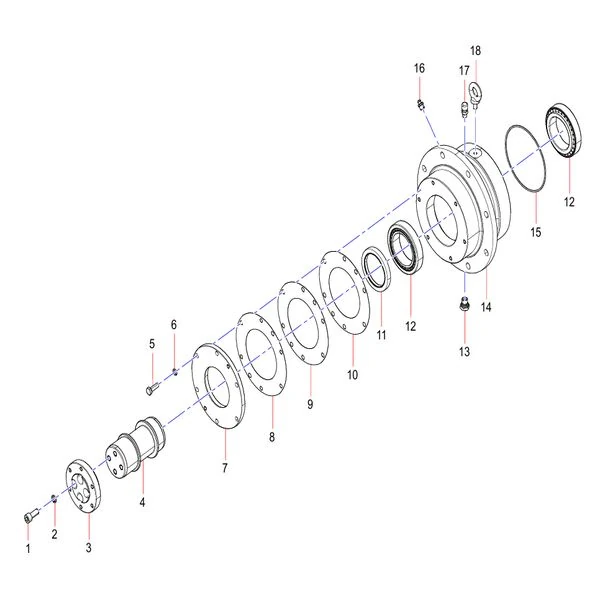

ODT007589833 Assembly Component Parts List

Below is the detailed parts catalog breakdown of the transition box assembly as referenced in the Sany SAT40C technical manual. All listed components can be ordered individually for targeted field repairs or rebuild maintenance:

Features & Benefits of Our Drivetrain Transition Box

• Rigid Cast-Iron Housing Protection: The Box Body casing (ODT007589338) is cast from premium structural-grade cast iron, designed to maintain exact internal shaft-to-bearing alignment under extreme drivetrain load fluctuations.
• Extreme Environment Duo-Cone Sealing: Equipped with a heavy-duty Floating Oil Seal (60227257). This metallic duo-cone face seal is engineered specifically for mining applications, preventing internal gear oil loss while keeping muddy site water, grit, and coal dust completely isolated from internal bearings.
• High-Capacity Tapered Roller Support: Features dual rolling bearings (29000937) designed to support the output shaft under continuous high axial and radial thrust loads generated by multi-angle propshaft drives.
• Accurate Bearing Pre-load Calibration: The package includes three specialized adjustable shims (items 8, 9, & 10) of varied thicknesses. These enable maintenance technicians to calibrate bearing play precisely, eliminating high-frequency driveline vibrations.

Ordering & Technical Maintenance Guidelines

1. Always Calibrate Bearing Pre-Load on Reassembly: When overhauling the transition box, the tapered roller bearings must be pre-loaded correctly. Utilizing the adjustable shim plates (items 8, 9, & 10) prevents bearing binding (if too tight) or excessive shaft play/vibration (if too loose).
2. Mandatory Sealing Gasket Replacement: Duo-cone floating face seals (item 11) and O-rings (item 15) must be replaced during any rebuild. Reusing compressed seals will compromise containment, leading to gear oil loss and bearing starvation.
3. Verify Chassis Drivetrain Compatibility: Drivetrain mounting brackets and spline configurations can undergo minor modifications based on production series. Please provide your Sany SAT40C’s chassis serial prefix so our technical team can verify exact part compatibility before shipping.

Contact us with part number ODT007589833, your desired quantities, and delivery destination to receive a detailed quote within 1 business day.
