ODT007224158 Oil Cooler Mounting Assembly Sany SAT40C Dump Truck Parts
ODT007224158 Oil Cooler Mounting Assembly — engineered for the Sany SAT40C articulated dump truck. This comprehensive 15-part structural kit securely mounts the transmission/hydraulic oil cooler to the chassis while isolating it from destructive off-road vibrations. The assembly includes heavy-duty oil cooler brackets (ODT007220776), bending plates, shock-absorbing rubber pads (ODT004701237, ODT004701226), and all required OEM mounting hardware. Protect your cooler core from metal fatigue and cracking today.
Product Details:
ODT007224158 Oil Cooler Mounting Assembly for Sany SAT40C
The ODT007224158 Oil Cooler Mounting Assembly is a critical structural and vibration-dampening system designed for the Sany SAT40C Articulated Dump Truck (ADT). Due to the violent bouncing, chassis flex, and engine harmonics experienced during off-road hauling, rigidly mounting an aluminum or alloy oil cooler directly to the frame will rapidly lead to metal fatigue, stress fractures, and catastrophic fluid leaks.
This 15-part master mounting kit is engineered to suspend the oil cooler securely while absorbing kinetic shock. It features rugged steel brackets, bending plates, and multiple elastomeric rubber pads that act as vibration isolators. We supply the complete ODT007224158 assembly to ensure your new or existing oil cooler is protected exactly as the Sany factory intended. Genuine OEM parts and high-durability aftermarket alternatives are available for global dispatch.
General Assembly Specifications
| Attribute | Specification Details |
|---|---|
| Assembly Part Number | ODT007224158 |
| Assembly Name | Oil Cooler Mounting Assembly (Vibration Isolation Kit) |
| Compatible Brand | Sany |
| Applicable Machine | SAT40C Articulated Dump Truck |
| Component Type | Chassis Hardware / Cooling System Mounts |

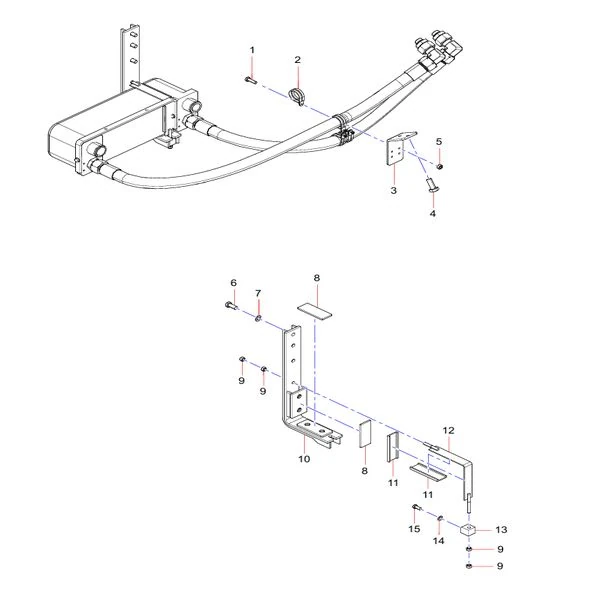

ODT007224158 Component Parts List (Master Table)
Below is the detailed 15-part breakdown of this cooler mounting assembly according to the official Sany SAT40C parts catalog. You can order the entire kit or request specific individual part numbers:
| Index | Part Number | Description | Qty |
|---|---|---|---|
| 1 | A210111000080 | Bolt | 4 |
| 2 | 60016764 | Clamp | 4 |
| 3 | ODT007220411 | Bracket | 1 |
| 4 | A210111000018 | Bolt | 2 |
| 5 | A210307000016 | Nut | 4 |
| 6 | A210111000212 | Bolt | 6 |
| 7 | A210405000003 | Washer | 6 |
| 8 | ODT004701237 | Rubber Pad (Vibration Isolator) | 4 |
| 9 | A210307000001 | Nut | 8 |
| 10 | ODT007220776 | Oil Cooler Bracket | 2 |
| 11 | ODT004701226 | Rubber Pad (Vibration Isolator) | 4 |
| 12 | ODT007220809 | Bending Plate Assembly | 2 |
| 13 | ODT004701250 | Block | 2 |
| 14 | 21001334 | Washer | 2 |
| 15 | A210111000101 | Bolt | 2 |
Features & Benefits of Our Sany Mounting Hardware
- Complete Vibration Isolation: This kit incorporates two sets of OEM-grade rubber pads (ODT004701237 and ODT004701226). These elastomers absorb high-frequency chassis vibrations, extending the life of your expensive oil cooler core.
- Heavy-Duty Structural Brackets: The main oil cooler brackets (ODT007220776) and bending plate assemblies (ODT007220809) are fabricated from thick-gauge steel to resist bending and deformation during severe articulation maneuvers.
- All-Inclusive Hardware: Supplying all 14 specialized bolts, 12 nuts, and assorted washers in one package means your mechanics won’t waste time hunting for exact-pitch metric hardware or re-using stretched, fatigued bolts.
Ordering & Logistics Guidelines
- Select Individual Part Numbers: You can order the entire 15-part mounting group or request specific components (e.g., if you only need to replace degraded rubber mounts, specify “Indexes 8 and 11”).
- Preventative Maintenance Notice: Rubber isolator pads naturally degrade, harden, and compress over time due to heat and ozone exposure. Whenever replacing an oil cooler, it is strongly recommended to install new rubber pads to protect your new investment.
- Provide Machine Serial Number: Cooler dimensions and bracket layouts can vary slightly depending on the specific transmission and cooler package optioned on your truck. Providing your Sany SAT40C VIN ensures 100% correct fitment.
Submit your inquiry today detailing the specific items you need from the ODT007224158 group, along with required quantities and your destination country. Our B2B sales team will provide a detailed quote and lead time within 1 business day.
