60319676 Power Take-Off Assembly Sany SAT40C Articulated Dump Truck Spare Parts
60319676 Power Take-Off Assembly (PTO Group) — compatible with Sany SAT40C articulated dump truck. This high-integrity mechanical drive assembly contains the Output Shaft Assembly (130401000045A008), heavy-duty cast housing (130401000045A004), high-performance oil seal (130401000001A003), engagement spring, clamping plate, and eight double-end studs with nuts. Engineered to safely transfer engine/transmission torque to auxiliary hydraulic pumps for body hoisting and steering. Genuine Sany OEM and quality aftermarket options are available.
Product Details:
60319676 Power Take-Off (PTO) Assembly for Sany SAT40C Articulated Dump Truck
The 60319676 Power Take-Off Assembly (commonly referred to in heavy equipment maintenance as the PTO Assembly) is a critical heavy-duty drivetrain component configured for the transmission system of the Sany SAT40C articulated dump truck. Mining haulers operate under severe conditions, requiring substantial hydraulic flows to power the truck’s massive body hoisting/tipping cylinders and high-capacity steering systems. The Power Take-Off acts as the primary mechanical link that taps high-torque rotational energy from the transmission and redirects it to run the auxiliary hydraulic pumps.
This assembly features a high-tensile splined Output Shaft Assembly (130401000045A008), a heavy-duty cast metal Housing (130401000045A004) designed to contain the gear oil bath and bearings, a wear-resistant rotary Oil Seal (130401000001A003), and an internal tensioning spring. The heavy casing is secured to the transmission/flywheel case utilizing eight high-strength Double Head Studs (130401000045A006) and matching mounting nuts. We supply the fully integrated 60319676 assembly as well as individual replacement shafts, housings, oil seals, gaskets, and mounting hardware. Both genuine Sany OEM kits and highly reliable aftermarket options are in stock for rapid international shipping.
General Assembly Specifications
| Attribute | Specification Details |
|---|---|
| Assembly Part Number | 60319676 |
| Assembly Name | Power Take-Off Assembly (PTO Assembly) |
| Compatible Brand | Sany |
| Applicable Machine | SAT40C Articulated Dump Truck |
| Category | Sany Articulated Dump Truck Transmission & Drivetrain Parts |

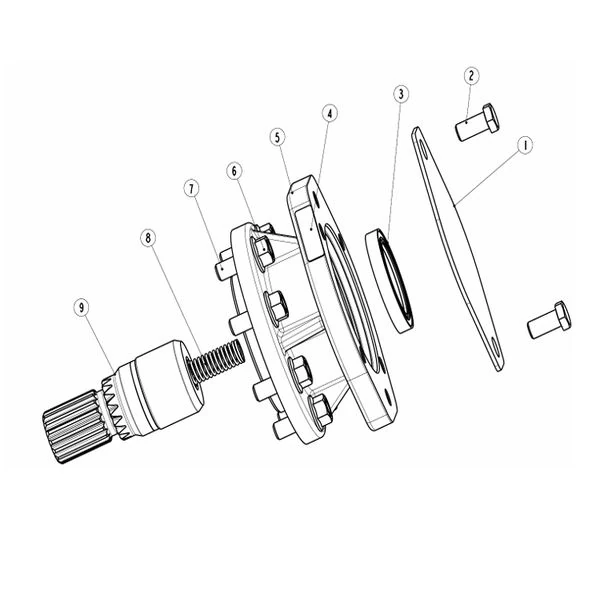

60319676 Assembly Component Parts List
Below is the detailed parts catalog breakdown of the PTO assembly as referenced in the Sany SAT40C technical manual. All listed components can be ordered individually for targeted field repairs or overhaul maintenance:
| Index | Part Number | Description / English Part Name | Qty |
|---|---|---|---|
| 1 | 130401000045A001 | Plate (Clamping / Cover Plate) | 1 |
| 2 | 130401000045A002 | Hexagon Head Bolt | 2 |
| 3 | 130401000001A003 | Oil Seal (Rotary Shaft Seal) | 1 |
| 4 | 130401000045A003 | Information Decal | 1 |
| 5 | 130401000045A004 | Housing (Main PTO Casing) | 1 |
| 6 | 130401000045A005 | Nut | 8 |
| 7 | 130401000045A006 | Double Head Stud (Double-End Mounting Stud) | 8 |
| 8 | 130401000045A007 | Spring (Engagement/Return Spring) | 1 |
| 9 | 130401000045A008 | Output Shaft Assembly (Splined Output Drive Shaft) | 1 |
Features & Benefits of Our Power Take-Off Assembly
- High-Torque Power Transmission: The precision-machined spline Output Shaft Assembly (130401000045A008) is forged from high-tensile alloy steel to handle intensive torsional force transfers under peak hydraulic pressures during body hoisting.
- Durable Oil Containment: Features a premium rotary shaft Oil Seal (130401000001A003) designed to prevent high-temperature gear oil from leaking past the spinning output shaft, protecting the system from low oil level failures.
- Rigid Cast Housing: The heavy-duty cast-iron Housing (130401000045A004) securely contains the internal bearings and gear oil bath, maintaining precise gear meshing tolerances.
- Vibration-Resistant Mounting: Utilizing eight high-strength double-head studs (130401000045A006) and nuts, this setup distributes mounting force evenly, resisting self-loosening from heavy chassis and drivetrain vibrations.
Ordering & Technical Maintenance Guidelines
- Verify Output Shaft Spline Profiles: Splined shafts are subjected to harsh shock loads during pump engagement. During transmission overhauls or pump service, inspect the spline profile of the Output Shaft (item 9) for wear or pitting. Worn shafts should be replaced immediately to prevent spline stripping.
- Always Install a New Oil Seal on Re-assembly: The rotary shaft oil seal (item 3) is a wear item subject to high friction and heat. Always replace this seal during any PTO service to prevent gear oil from leaking onto the chassis.
- Follow Tightening Torque Specs: When mounting the PTO housing to the transmission, torque the eight nuts (item 6) evenly in a cross-pattern to ensure the casing seats flat, preventing gear misalignment and oil leaks.
Contact our B2B sales department today with part number 60319676, your desired quantities, and delivery port to receive a formal commercial quotation within 1 business day.
