160102130004A073 Fuel Filter Group Sany SAT40C Articulated Dump Truck Spare Parts
160102130004A073 Fuel Filter Group — compatible with Sany SAT40C articulated dump truck. This complete multi-stage engine fuel filtration assembly features the fuel filter, fuel fine filter, and fuel coarse filter (water separator), along with support blocks, gasket blocks, and high-strength mounting hardware. Designed to protect precision common-rail fuel injection pumps and injectors from contaminants. Genuine Sany OEM and quality aftermarket options are available.
Product Details:
160102130004A073 Fuel Filter Group for Sany SAT40C Articulated Dump Truck
The 160102130004A073 Fuel Filter Group is an essential engine filtration assembly integrated into the fuel system of the Sany SAT40C articulated dump truck. Modern high-pressure common-rail fuel systems operate under extremely tight mechanical clearances. Even micro-fine particulates or water droplets in diesel fuel can cause catastrophic wear or failure to the high-pressure injection pump and common-rail fuel injectors. This multi-stage filter group progressively screens out raw impurities, moisture, and fine dust to safeguard the combustion system’s integrity.
We supply the fully integrated 160102130004A073 group assembly as well as individual replacement filters, mounting support blocks, gasket blocks, and double-end studs. Both genuine Sany OEM kits and highly reliable aftermarket options are in stock for rapid international shipping.
General Assembly Specifications
| Attribute | Specification Details |
|---|---|
| Assembly Part Number | 160102130004A073 |
| Assembly Name | Fuel Filter Group |
| Compatible Brand | Sany |
| Applicable Machine | SAT40C Articulated Dump Truck |
| Category | Sany Articulated Dump Truck Fuel System Parts |

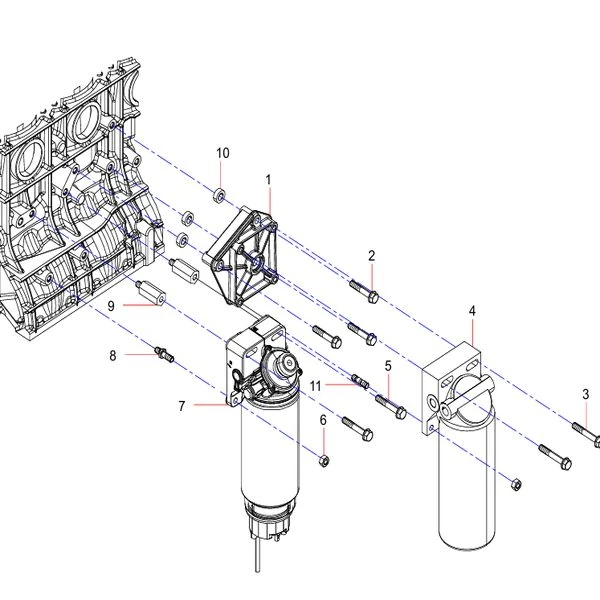

160102130004A073 Assembly Component Parts List
Below is the detailed parts catalog breakdown of the fuel filter group as referenced in the Sany SAT40C technical manual. All items, including individual filters and specialized mounting brackets, can be ordered separately:
| Index | Part Number | Description / English Part Name | Qty |
|---|---|---|---|
| 1 | 61000700 | Fuel Filter | 1 |
| 2 | 61000760 | Hex Head Bolt | 3 |
| 3 | 160102130003A111 | Hexagon Flange Bolt | 2 |
| 4 | 61019554 | Fuel Fine Filter | 1 |
| 5 | 60326595 | Hexagon Head Bolt | 2 |
| 6 | 60230461 | Nut | 2 |
| 7 | 160102130003A110 | Fuel Coarse Filter (Water Separator) | 1 |
| 8 | 168899004280A | Support Block | 1 |
| 9 | 168899004281A | Support Block | 2 |
| 10 | 160102130003A108 | Gasket Block | 3 |
| 11 | 160102130003A112 | Double End Stud | 1 |
Features & Benefits of Our Fuel Filtration System
- Multi-Stage Clean Filtration: Features progressive staging utilizing a Fuel Coarse Filter / Water Separator (160102130003A110) to separate water, followed by a primary Fuel Filter (61000700) and Fuel Fine Filter (61019554) to eliminate fine debris.
- Engineered Vibration Damping: Mining dump trucks face continuous, extreme structural vibrations. The heavy-duty support blocks (items 8 & 9) and gasket blocks (item 10) isolate the filter brackets, preventing fatigue cracking on filter housing ports.
- Robust Double-End Studs: High-strength mounting studs (item 11) and specialized flange bolts secure the entire filter bank firmly to the engine frame.
Ordering & Maintenance Guidelines
- Establish Routine Filter Service: High-pressure common-rail fuel systems require strict maintenance intervals. Always replace the fuel fine filter (item 4) and coarse filter (item 7) according to Sany’s recommended service hours to preserve injector lifespan.
- Provide Machine Serial Prefix: Engine fuel line layouts and mounting block geometries may differ based on production series. Please provide your SAT40C articulated dump truck’s serial number to confirm exact fitment.
- Individual Component Sourcing: If you are conducting routine filter maintenance, you can purchase the spin-on fuel filter cartridges separately rather than the entire structural group.
Contact us with part number 160102130004A073, your required quantity, and delivery destination to obtain a detailed quote within 1 business day.
