160102130004A072 Low Pressure Oil Pipe Combination Group Sany SAT40C Articulated Dump Truck Spare Parts
160102130004A072 Low Pressure Oil Pipe Combination Group — compatible with Sany SAT40C articulated dump truck. This comprehensive low-pressure fuel assembly includes multiple fuel inlet pipe assemblies, fuel return lines, pipe clamps, fittings, hollow bolts, and combined sealing rings. Designed to ensure stable, leak-free fuel transfer between fuel filters and the high-pressure injection pump. Genuine Sany OEM and quality aftermarket options are available.
Product Details:
160102130004A072 Low Pressure Oil Pipe Combination Group for Sany SAT40C
The 160102130004A072 Low Pressure Oil Pipe Combination Group acts as the primary arterial fuel transfer network for the engine fuel system on the Sany SAT40C articulated dump truck. Operating under low pressure, this combination group routes fuel from the main fuel tank through the primary coarse fuel filters, delivers filtered fuel to the high-pressure injection pump, and channels hot returned fuel back to the fuel tank via dedicated return pipes. Proper maintenance of this group is essential to prevent air locks, fuel pressure drops, and external fuel leaks, which can lead to starting difficulties, engine power loss, and fuel wastage.
We supply the fully integrated 160102130004A072 oil pipe group as well as individual replacement fuel hoses, banjo bolts, clamps, and combined seals. Both genuine Sany OEM parts and robust aftermarket replacement options are ready to ship globally.
General Assembly Specifications
| Attribute | Specification Details |
|---|---|
| Assembly Part Number | 160102130004A072 |
| Assembly Name | Low Pressure Oil Pipe Combination Group |
| Compatible Brand | Sany |
| Applicable Machine | SAT40C Articulated Dump Truck |
| Category | Sany Articulated Dump Truck Fuel System Parts |

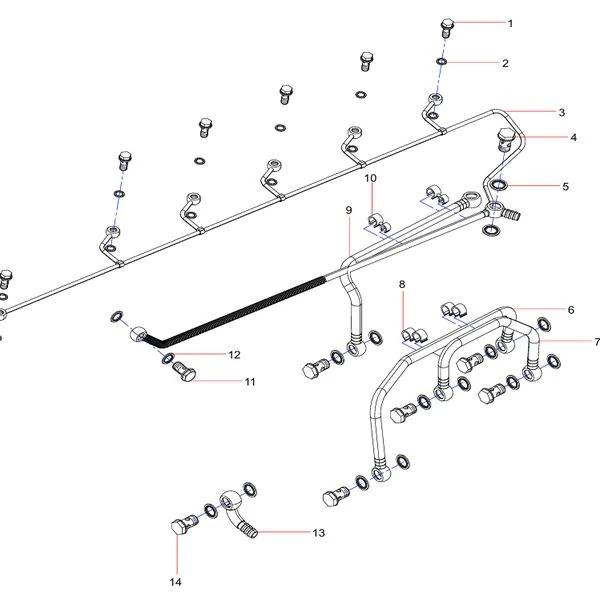

160102130004A072 Assembly Component Parts List
Below is the detailed parts breakdown of the low-pressure oil pipe combination group according to the official Sany SAT40C parts catalog. All components can be ordered individually or as a complete group:
| Index | Part Number | Description / English Part Name | Qty |
|---|---|---|---|
| 1 | 60272895 | Hollow Bolt (Banjo Bolt) | 6 |
| 2 | 61028525 | Combined Sealing Washer | 12 |
| 3 | 61000800 | Fuel Oil Return Pipe | 1 |
| 4 | 60106718 | Coarse Filter Hollow Bolt | 6 |
| 5 | 60106801 | Combined Sealing Ring | 16 |
| 6 | 160102130003A105 | Fuel Inlet Pipe Assembly | 1 |
| 7 | 160102130003A145 | Fuel Inlet Pipe Assembly | 1 |
| 8 | 160102130003A107 | Pipe Clamp Assembly | 2 |
| 9 | 160102130003A106 | Fuel Inlet Pipe Assembly | 1 |
| 10 | 60326458 | Pipe Clamp | 2 |
| 11 | 160102130003A104 | Bolt | 1 |
| 12 | 61028526 | Combined Sealing Washer | 2 |
| 13 | 60352082 | Fitting (Fuel Connector Fitting) | 1 |
| 14 | 160102120008A132 | Bolt | 1 |
Features & Benefits of Our Low Pressure Fuel Assemblies
- Vibration-Dampened Fuel Lines: Fuel inlet pipe assemblies (items 6, 7, and 9) are constructed with high-durability reinforced compounds designed to withstand the rapid chassis movements of dump trucks in mining zones.
- Secure Hose Routing: Included pipe clamps (items 8 & 10) keep the fluid lines strictly secured against engine brackets, preventing friction-induced hose chafing or thermal damage from hot engine manifolds.
- Reliable Joint Isolation: Premium elastomer combined sealing washers (items 2 & 12) and sealing rings (item 5) establish tight fluid retention at the filter and pump manifolds, eliminating diesel oil weepage.
Ordering & Technical Guidelines
- Verify Fuel Assembly Configurations: Fuel line geometry and coarse filter hollow bolts (60106718) are highly engine-specific. To ensure correct layout, please verify with your Sany SAT40C chassis or engine prefix.
- Always Renew Gaskets and Sealing Rings: Elastomeric washers and copper-faced sealing rings (60106801) are considered single-use components that crush to fit. Always replace them with new components when servicing fluid lines to prevent micro leaks.
- Targeted Maintenance Kits: If you are looking to service a specific line or filter, you can purchase individual fuel return pipes (61000800) or seal washer packs separately.
Contact us with part number 160102130004A072, required quantities, and your delivery destination to obtain a detailed quote within 1 business day.
