160102130004A057 Engine Oil Filter Assembly Group Sany SAT40C Dump Truck Parts
160102130004A057 Engine Oil Filter Assembly Group — engineered for the Sany SAT40C articulated dump truck. Widely known in the industry as the oil pickup tube and strainer assembly, this critical lower-engine component sits inside the oil pan and draws oil directly into the oil pump. The complete 8-part kit includes the engine oil pump suction pipe (160102130003A082), sump strainer (160102130003A078), essential sealing rings, and heavy-duty mounting hardware. Genuine OEM and high-quality aftermarket options available.
Product Details:
160102130004A057 Engine Oil Filter Assembly Group for Sany SAT40C
The 160102130004A057 Engine Oil Filter Assembly Group serves as the critical starting point for the engine lubrication system in the Sany SAT40C Articulated Dump Truck (ADT). Situated at the very bottom of the engine inside the oil pan, this assembly acts as the main pickup tube and primary filtration screen for the engine’s oil pump.
As the oil pump generates a vacuum, engine oil is drawn upward through the Sump Strainer, which blocks large metallic debris, sludge, and carbon deposits from entering and destroying the precision gears of the oil pump. This comprehensive combination group includes the suction pipe, the protective strainer, the sealing gaskets, and all required mounting flange bolts. We supply the complete 160102130004A057 assembly as well as individual sub-components to support your specific rebuild requirements.
General Assembly Specifications
| Attribute | Specification Details |
|---|---|
| Group Part Number | 160102130004A057 |
| Group Name | Engine Oil Filter Assembly Group (Oil Pickup Tube & Strainer) |
| Compatible Brand | Sany |
| Applicable Machine | SAT40C Articulated Dump Truck |
| Component Type | Engine Internals / Lubrication System |

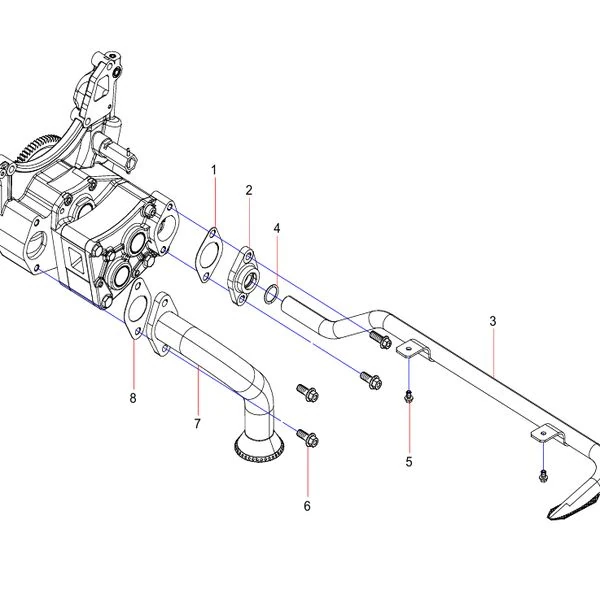

160102130004A057 Component Parts List
Below is the detailed 8-part breakdown of this engine oil pickup assembly according to the official Sany SAT40C parts catalog. You can order the entire system or request specific individual part numbers:
| Index | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 160102120008A068 | Filter Collector Gasket | 1 |
| 2 | 160102120008A069 | Filter Collector Flange | 1 |
| 3 | 160102130003A082 | Engine Oil Pump Suction Pipe | 1 |
| 4 | 60352123 | Sealing Ring | 1 |
| 5 | 160101090035B172 | Hexagon Flange Bolt | 2 |
| 6 | 168899000008 | Hexagon Flange Bolt | 4 |
| 7 | 160102130003A078 | Sump Strainer | 1 |
| 8 | 160102120008A071 | Spacer | 1 |
Features & Benefits of Our Sany Lubrication Components
- First-Line Contaminant Defense: The 160102130003A078 Sump Strainer utilizes a high-flow steel mesh to catch large debris before it can be sucked into the oil pump, safeguarding the engine’s entire lubrication network.
- Airtight Suction Integrity: The included 60352123 Sealing Ring and 160102120008A068 Filter Collector Gasket provide an impenetrable seal at the pump mounting flange. This prevents the oil pump from sucking in air, which leads to cavitation, fluctuating oil pressure, and bearing starvation.
- Vibration-Proof Tubing: The robust steel 160102130003A082 Suction Pipe is designed to withstand the violent vibrations and sloshing characteristic of articulated dump trucks operating on uneven mining terrain.
Ordering & Inquiry Guidelines
- Select Needed Components: You can order the entire combination group, or request individual parts (e.g., if you are simply doing an oil pan reseal and only need the Sealing Ring and Collector Gasket).
- Verify the Part Number: Confirm the assembly or individual part numbers match your Sany engine data plate or parts manual before placing your order.
- Provide Machine Serial Number: Oil pan depths and sump strainer clearance requirements can vary based on specific truck configurations. Providing your Sany SAT40C VIN or engine serial number ensures our technicians supply the 100% correct suction pipe length.
Submit your inquiry today detailing the specific items you need from the 160102130004A057 group, along with required quantities and your destination country. Our B2B sales team will provide a detailed quote and lead time within 1 business day.
