160102130004A054 Oil Pan Combination Group Sany SAT40C Dump Truck Parts
160102130004A054 Oil Pan Combination Group — engineered for the Sany SAT40C articulated dump truck. This complete lower engine crankcase kit includes the main oil pan assembly (160102130004A016), a heavy-duty sealing gasket (160102130003A049), torque-distribution support blocks, and all necessary flange bolts. Designed to securely contain engine oil, protect the oil pump pickup, and prevent leaks in extreme off-road conditions. Genuine OEM and quality aftermarket options available.
Product Details:
160102130004A054 Oil Pan Combination Group for Sany SAT40C
The 160102130004A054 Oil Pan Combination Group serves as the rugged lower enclosure for the engine block on the Sany SAT40C Articulated Dump Truck (ADT). Acting as the primary reservoir for engine lubricating oil, this assembly plays a vital role in cooling the oil and protecting internal rotating components from off-road hazards, dust, and moisture.
This comprehensive combination group includes the heavy-duty oil pan assembly, the leak-proof sealing gasket, and a complete set of support blocks and high-tensile mounting hardware. We supply the complete 160102130004A054 master group, as well as the individual sub-components to support targeted repairs like replacing a punctured pan or fixing a persistent gasket leak. Genuine Sany OEM parts and premium aftermarket alternatives are available.
General Assembly Specifications
| Attribute | Specification Details |
|---|---|
| Group Part Number | 160102130004A054 |
| Group Name | Oil Pan Combination Group (Engine Sump Kit) |
| Compatible Brand | Sany |
| Applicable Machine | SAT40C Articulated Dump Truck |
| Component Type | Engine Enclosures / Lubrication System |

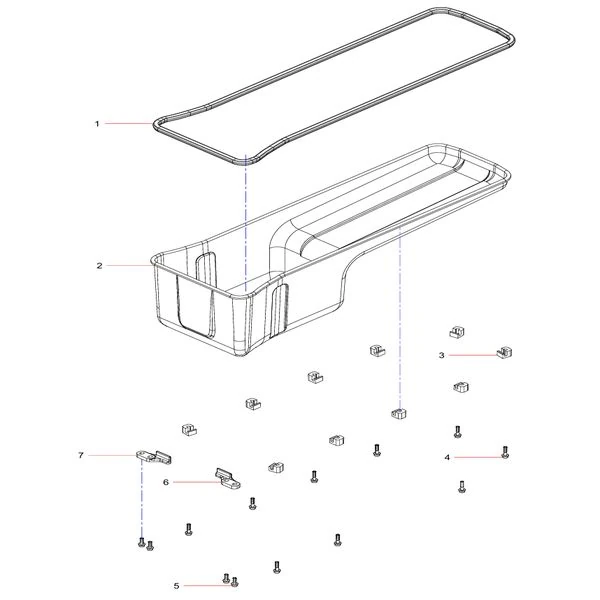

160102130004A054 Component Parts List
Below is the detailed 7-part breakdown of this oil pan combination group according to the official Sany SAT40C parts catalog. You can order the entire system or request specific individual part numbers:
| Index | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 160102130003A049 | Oil Pan Sealing Gasket | 1 |
| 2 | 160102130004A016 | Oil Pan Assembly | 1 |
| 3 | 60272589 | Oil Pan Support Block (Torque Distribution Plate) | 10 |
| 4 | 61000135 | Hexagon Flange Bolt Enlarged Series | 10 |
| 5 | 160102130003A052 | Hexagon Flange Bolt | 4 |
| 6 | 160102130003A050 | Oil Pan Support Block | 1 |
| 7 | 160102130003A051 | Oil Pan Support Block | 1 |
Features & Benefits of Our Sany Lower Engine Components
- Rugged Oil Pan Construction: The 160102130004A016 oil pan is constructed from heavy-gauge material to resist impacts from rocks and debris commonly encountered in articulated dump truck operations.
- Flange Distortion Prevention: The specialized Oil Pan Support Blocks (Indexes 3, 6, and 7) act as reinforcement load plates. They distribute the clamping force of the bolts evenly across the pan’s lip, preventing the flange from warping and causing permanent oil leaks.
- Premium Sealing: The included 160102130003A049 Sealing Gasket is manufactured from advanced elastomers engineered to withstand continuous exposure to hot synthetic engine oils and extreme crankcase pressures.
Ordering & Inquiry Guidelines
- Select Needed Components: You can order the entire combination group, or request individual parts (e.g., if you only need the gasket, specify “Index 1: 160102130003A049”).
- Verify the Part Number: Confirm the assembly or individual part numbers match your Sany engine data plate or parts manual before placing your order.
- Provide Machine Serial Number: Oil pan capacities and dipstick mounting locations can vary by production run. Providing your Sany SAT40C VIN or engine serial number ensures our technicians supply the 100% correct component profile.
Submit your inquiry today detailing the specific items you need from the 160102130004A054 group, along with required quantities and your destination country. Our B2B sales team will provide a detailed quote and lead time within 1 business day.
