160102130004A051 Gear Transmission Combination Group Sany SAT40C Dump Truck Parts

160102130004A051 Gear Transmission Combination Group for Sany SAT40C

The 160102130004A051 Gear Transmission Combination Group (commonly referred to as the Engine Timing Gear Train) is a highly critical mechanical system engineered for the Sany SAT40C Articulated Dump Truck (ADT). Located at the front or rear of the engine block, these precision-cut gears transmit rotational power from the crankshaft directly to the camshaft, guaranteeing perfect valve timing and optimal combustion efficiency.

This comprehensive 7-part group contains every heavy-duty component required to rebuild the engine’s timing gear interface. It features the primary camshaft timing gear, the intermediate (idler) gear assembly, the idling gear shaft, the thrust plate, and all required high-tensile hex head bolts. We supply the complete master group as well as individual sub-components to support your specific engine overhaul requirements.

General Assembly Specifications

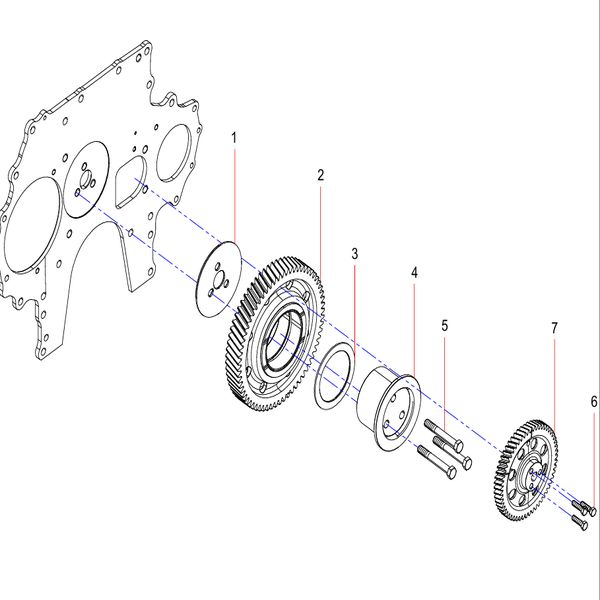

160102130004A051 Component Parts List

Below is the detailed 7-part breakdown of this gear transmission group according to the official Sany SAT40C parts catalog. You can order the entire system or request specific individual part numbers:

Features & Benefits of Our Sany Timing Gear Components

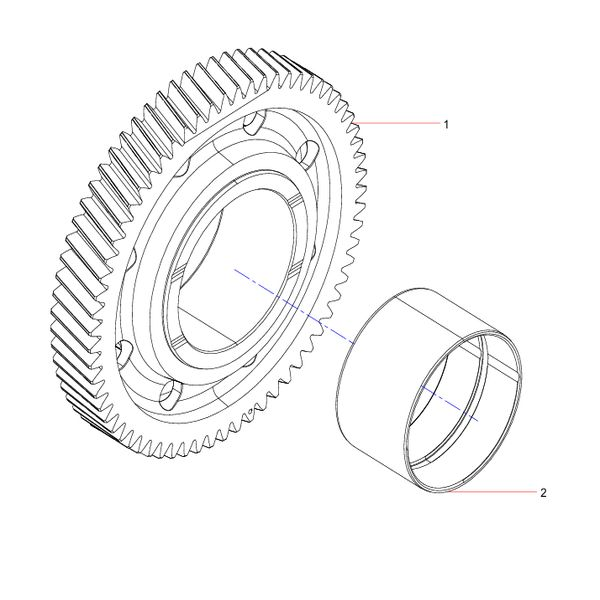

• Maximum Torque Transfer: Both the Camshaft Timing Gear (160102130003A040) and Intermediate Gear (160102130003A039) are forged from premium high-carbon steel and feature induction-hardened helical teeth to handle extreme rotational shear forces.
• Precise Synchronization: Manufactured to exact Sany OEM tolerances, these gears ensure flawless engine timing, eliminating the risk of catastrophic valve-to-piston contact during operation.
• Friction-Optimized Bearings: The included Idling Gear Shaft (169900000084A) and Thrust washer (169900000083A) are micro-polished to maintain a stable hydrodynamic oil film, drastically reducing gear whine and premature wear.

Ordering & Inquiry Guidelines

1. Specify Your Needs: Given the precision nature of the timing train, we highly recommend replacing the intermediate gear and camshaft gear simultaneously to ensure uniform tooth engagement. You can order the full kit or specific index numbers.
2. Verify the Part Number: Confirm the assembly or individual part numbers match your Sany engine data plate or parts manual before placing your order.
3. Provide Machine Serial Number: Timing gear ratios and mounting depths can experience mid-cycle production updates. Providing your Sany SAT40C VIN or engine serial number ensures our technicians supply the 100% correct component profile.

Submit your inquiry today detailing the specific items you need from the 160102130004A051 group, along with required quantities and your destination country. Our B2B sales team will provide a detailed quote and lead time within 1 business day.
