160102130004A028 Machine Achine Body Pre-assembly Sany SAT40C Dump Truck Parts
160102130004A028 Machine Achine Body Pre-assembly — compatible with the Sany SAT40C articulated dump truck. This primary engine block assembly includes the core cylinder body, crankcase, camshaft, main bearing bolts, and expansion plugs. We supply the complete pre-assembled unit as well as the individual internal components listed in the parts breakdown. Genuine OEM and high-quality aftermarket options are available.
Product Details:
160102130004A028 Machine Achine Body Pre-assembly for Sany SAT40C
The 160102130004A028 Machine Achine Body Pre-assembly (functionally operating as the core engine cylinder body and crankcase assembly) is a critical powertrain structure engineered for the Sany SAT40C Articulated Dump Truck (ADT). This robust pre-assembly houses the primary moving components of the engine, ensuring optimal compression, structural integrity, and long-term durability in harsh mining and earthmoving environments.
We supply both the complete 160102130004A028 assembly and the individual internal sub-components, such as the camshaft, cylinder block, and main bearing bolts. Both genuine Sany OEM parts and premium aftermarket alternatives are available for global dispatch.
General Assembly Specifications
| Attribute | Specification Details |
|---|---|
| Assembly Part Number | 160102130004A028 |
| Assembly Name | Machine Achine Body Pre-assembly (Engine Block Assembly) |
| Compatible Brand | Sany |
| Applicable Machine | SAT40C Articulated Dump Truck |
| Component Type | Powertrain / Engine Block Components |

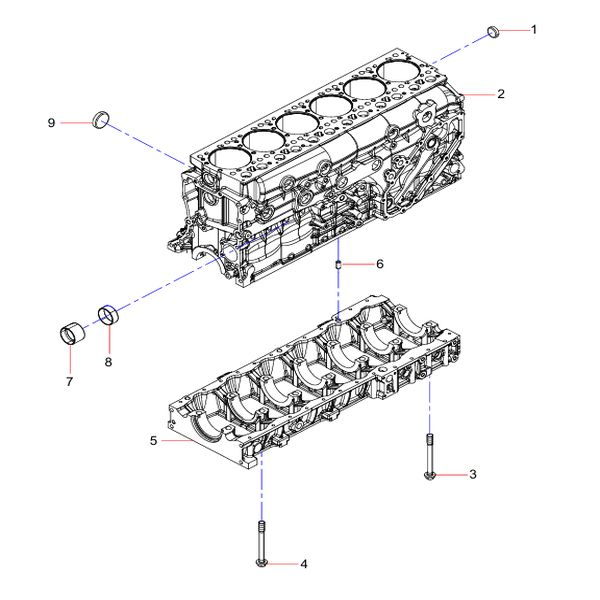

160102130004A028 Component Parts List (Master Table)
Below is the detailed parts breakdown of this pre-assembly according to the official Sany SAT40C parts catalog. Any of these components can be ordered individually or as a complete package:
| Index | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 61001585 | Plug, Expansion | 11 |
| 2 | 160102130004A029 | Cylinder Body | 1 |
| 3 | 61000084 | Main Bearing Bolt | 3 |
| 4 | 61000093 | Main Bearing Bolt | 11 |
| 5 | 160102130003A156 | Crankcase | 1 |
| 6 | 61000169 | Cylindrical Pin With Internal Thread | 3 |
| 7 | 61000091 | Camshaft | 1 |
| 8 | 60272558 | Bushing | 6 |
| 9 | 61001584 | Plug, Expansion | 6 |
Features & Benefits of Our Sany Engine Parts
- Precision Engineering: Critical engine components like the cylinder body (160102130004A029) and camshaft (61000091) are machined to exact Sany factory tolerances, ensuring perfect valve timing and compression sealing.
- High-Stress Reliability: Main bearing bolts (61000084, 61000093) are forged from high-tensile alloy steel to withstand the immense combustion pressures typical of articulated dump truck operations.
- Flexible Sourcing: Whether you are performing a complete engine rebuild requiring the entire pre-assembly or just replacing specific worn bushings (60272558) and expansion plugs, we adapt to your maintenance requirements.
Ordering & Inquiry Guidelines
- Verify the Part Number: Always match the assembly part number 160102130004A028 or individual component numbers against your Sany engine data plate or parts manual before purchasing.
- Provide Machine Serial Number: Engine configurations can update across production years. Including the VIN or engine serial number of your Sany SAT40C will help our technicians confirm 100% fitment.
- Specify Your Needs: Clearly indicate if you require the entire assembled block or just specific items from the index (e.g., “Index 5: Crankcase”).
Submit your inquiry today with part number 160102130004A028, required quantities, and your destination country. Our B2B sales team will provide a detailed quote and lead time within 1 business day.
