142906000053A Distribution Box Sany SAT40C Articulated Dump Truck Spare Parts

142906000053A High-Current Power Distribution Box for Sany SAT40C

The 142906000053A Distribution Box (Main Fuse Block / Power Distribution Block) is a critical high-current circuit protection system designed for the 24V electrical network of the Sany SAT40C articulated dump truck. Articulated dump trucks operate in severe, dusty mining environments under continuous mechanical vibrations. These harsh conditions can lead to wire insulation chafing, moisture ingress, or component failures that trigger high-current short circuits. The main distribution box acts as the primary barrier of electrical safety, hosting heavy-duty, high-amperage fuses designed to blow and isolate faults before expensive components like the ECU, starter, or alternator are damaged.

This assembly integrates a heavy-duty, dust-tight composite housing containing one 100A Fuse of Fuse Box (142904000079A007) and three 70A Fuses of Fuse Box (142904000079A006). The 100A fuse is typically utilized to protect the alternator charging output or engine preheating grids, while the 70A fuses protect major sub-circuits, including the hydraulic fan motor controller and the cab’s main power distribution board. We supply the fully integrated 142906000053A distribution box as well as individual replacement 100A and 70A bolt-on fuses. Both genuine Sany OEM kits and highly reliable aftermarket options are in stock for rapid international shipping.

General Assembly Specifications

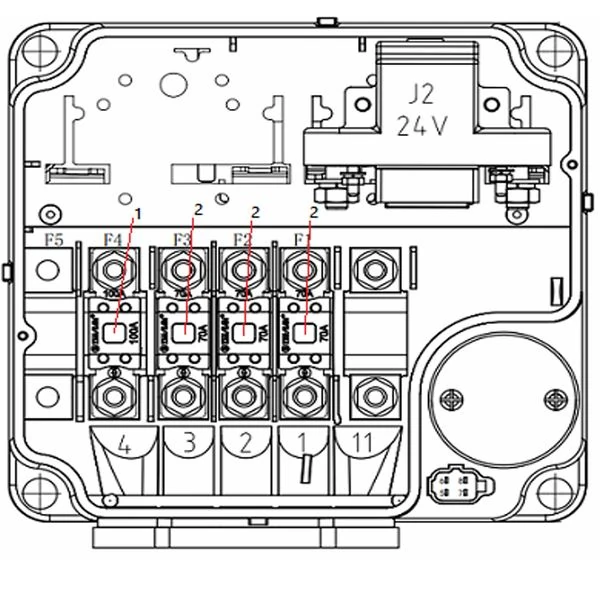

142906000053A Assembly Component Parts List

Below is the detailed parts catalog breakdown of the high-current distribution box assembly as referenced in the Sany SAT40C technical manual. All listed replacement fuses are orderable separately:

Features & Benefits of Our Main Distribution Box

• High-Amperage Overload Protection: Houses premium copper-alloy bolt-on fuses (items 1 & 2) with precise melting/breaking points to reliably isolate short circuits or current overloads.
• Threaded Bolt-on Terminal Design: Incorporates heavy-duty threaded stud terminals. These allow high-gauge battery ring lugs to be bolted directly and securely, ensuring a low-resistance connection that prevents melting or sparking under heavy mine vibrations.
• Dust and Splash-Proof Enclosure: Designed with a sealed, weather-resistant composite plastic cover that prevents coal dust, water splash, and oil vapors from fouling the electrical terminals.
• Direct Fit Sany Standard: Manufactured to match Sany mounting brackets on the left platform battery box assembly (ODT009298843), simplifying direct replacement.

Ordering & Technical Maintenance Guidelines

1. Always Use Matching Amperage Ratings: Never replace a blown fuse with one of a higher amperage rating or use bypass wires. Doing so will bypass the circuit safety limits and cause catastrophic damage to the wiring harness looms or vehicle controller modules. Use Sany original 100A (item 1) and 70A (item 2) replacement fuses.
2. Ensure Proper Terminal Torque: High-current terminal nuts must be torqued to specific engineering values. Loose connections introduce high electrical resistance, generating localized heat that can melt the distribution block housing.
3. Verify Chassis Model Sizing: Power distribution boxes can vary slightly in fuse layouts depending on engine emission ratings. Please provide your Sany SAT40C’s chassis serial prefix so our technical team can verify exact part compatibility before shipping.

Contact our B2B sales department today with part number 142906000053A, your desired quantities, and delivery port to receive a formal commercial quotation within 1 business day.
