130202000093A434 Hydraulic Torque Converter Assembly Sany SAT40C Dump Truck Parts
130202000093A434 Hydraulic Torque Converter Assembly — engineered for the Sany SAT40C articulated dump truck. This massive 39-part drivetrain master group multiplies engine torque and ensures smooth power delivery to the transmission. The complete assembly features the main turbine (130202000093A303), the torsional vibration absorber (130202000093A432), lock-up clutch friction discs, sprag clutch rollers, and all heavy-duty internal bearings and seals. Genuine OEM and high-quality aftermarket options available for major transmission overhauls.
Product Details:
130202000093A434 Hydraulic Torque Converter Assembly for Sany SAT40C
The 130202000093A434 Hydraulic Torque Converter Assembly is a highly sophisticated fluid coupling device engineered for the drivetrain of the Sany SAT40C Articulated Dump Truck (ADT). Situated between the diesel engine and the transmission, this assembly allows the engine to idle independently of the transmission while massively multiplying torque output during low-speed, high-load acceleration (such as crawling out of deep mining pits with a full payload).
This comprehensive 39-part master group contains everything required for a complete torque converter replacement or internal rebuild. It includes the heavy-duty outer shell, internal turbine, one-way stator sprag clutch components (rollers and springs), lock-up clutch packs (friction discs and steel plates), and the integrated torsional vibration absorber. We supply the complete pre-assembled 130202000093A434 unit, as well as individual internal repair parts for specialized transmission shops. Genuine Sany OEM assemblies and premium aftermarket alternatives are available for global dispatch.
General Assembly Specifications
| Attribute | Specification Details |
|---|---|
| Assembly Part Number | 130202000093A434 |
| Assembly Name | Hydraulic Torque Converter Assembly |
| Compatible Brand | Sany |
| Applicable Machine | SAT40C Articulated Dump Truck |
| Component Type | Drivetrain / Fluid Coupling & Transmission |

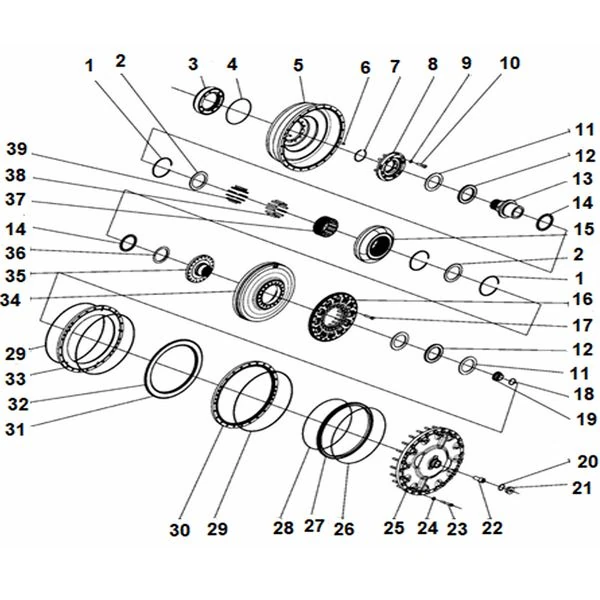

130202000093A434 Component Parts List (Master Table)
Below is the detailed 39-part breakdown of this torque converter assembly according to the official Sany SAT40C parts catalog. You can order the entire system or request pricing for specific internal rebuild components:
| Index | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 130202000093A272 | Snap Ring | 3 |
| 2 | 130202000093A273 | Side Plate | 2 |
| 3 | 130202000093A274 | Adaptor | 1 |
| 4 | 130202000093A275 | Seal Ring | 1 |
| 5 | 130202000093A276 | Wheel | 1 |
| 6 | 130202000093A277 | Pin | 2 |
| 7 | 130202000093A278 | Snap Ring | 1 |
| 8 | 130202000093A279 | Drum | 1 |
| 9 | 130202000093A280 | Washer | 8 |
| 10 | 130202000093A281 | Bolt | 8 |
| 11 | 130202000093A282 | Seat | 3 |
| 12 | 130202000093A283 | Bearing | 2 |
| 13 | 130202000093A284 | Bracket | 1 |
| 14 | 130202000093A285 | Bearing | 2 |
| 15 | 130202000093A286 | Idler | 1 |
| 16 | 130202000093A432 | Torsional Vibration Absorber Assembly | 1 |
| 17 | 130202000149A094 | Hex Head Bolt | 20 |
| 18 | 130202000093A288 | Seal Ring | 1 |
| 19 | 130202000093A289 | Washer | 1 |
| 20 | 130202000149A021 | O-ring | 1 |
| 21 | 130202000093A291 | Screw | 1 |
| 22 | 130202000093A292 | Bolt | 1 |
| 23 | 130202000093A293 | Bolt | 24 |
| 24 | 130202000093A038 | Washer | 24 |
| 25 | 130202000093A294 | Shell (Torque Converter Housing) | 1 |
| 26 | 130202000093A295 | Seal Ring | 1 |
| 27 | 130202000093A296 | Piston | 1 |
| 28 | 130202000093A297 | Seal Ring | 1 |
| 29 | 130202000093A298 | Seal Ring | 3 |
| 30 | 130202000093A299 | Teeth (Splined Hub / Drive Gear) | 1 |
| 31 | 130202000093A300 | Steel Piece (Lock-Up Clutch Separator Plate) | 2 |
| 32 | 130202000093A301 | Friction Disc (Lock-Up Clutch Friction Plate) | 2 |
| 33 | 130202000093A302 | Back Plate | 1 |
| 34 | 130202000093A303 | Turbine | 1 |
| 35 | 130202000093A304 | Drum | 1 |
| 36 | 130202000093A305 | Seat | 1 |
| 37 | 130202000093A306 | Seat | 1 |
| 38 | 130202000093A307 | Roller (Stator Sprag Clutch Roller) |
