130202000093A266 Oil Pan Assembly Sany SAT40C Articulated Dump Truck Spare Parts
130202000093A266 Oil Pan Assembly (Engine Oil Sump & Strainer Group) — compatible with Sany SAT40C articulated dump truck. This high-capacity lubrication group contains the heavy-duty cast/steel Oil Pan (130202000093A355), Oil Suction Filter Mesh (130202000093A026), Filter Screen Shell, Oil Filter Magnet, protection guard plate, molded sealing ring, drain plugs, and structural sealing O-rings. Engineered to ensure reliable oil storage and debris separation on steep mining grades. Genuine Sany OEM and quality aftermarket options are available.
Product Details:
130202000093A266 Engine Oil Pan Assembly for Sany SAT40C Dump Truck
The 130202000093A266 Oil Pan Assembly (alternatively categorized as the Engine Oil Sump & Pickup Screen Group) is a primary structural and lubrication component located at the base of the engine block on the Sany SAT40C articulated dump truck. Articulated haulers frequently operate on extreme mining inclines, ruts, and unstable terrains, creating intense engine vibration and severe risk of flying rock debris. The oil pan must carry and store the engine’s entire lubricating oil supply while ensuring that the internal pickup tube remains constantly submerged in oil to prevent bearing oil starvation. Additionally, a specialized protective guard shields the lower assembly from undercarriage rock impacts.
This complete Sany lubrication group integrates the rugged cast Oil Pan (130202000093A355), an Oil Suction Filter Mesh (130202000093A026) to strain coarse engine debris, an Oil Filter Magnet (130202000093A025) to collect fine metal wear particles, and a heavy-duty Protection Device (130202000093A190) guard plate. We supply the fully integrated 130202000093A266 assembly, its leak-proof molded sealing gaskets, and individual replacement components listed below. Both genuine Sany OEM kits and highly reliable aftermarket options are in stock for rapid international shipping.
General Assembly Specifications
| Attribute | Specification Details |
|---|---|
| Assembly Part Number | 130202000093A266 |
| Assembly Name | Oil Pan Assembly (Engine Oil Sump Group) |
| Compatible Brand | Sany |
| Applicable Machine | SAT40C Articulated Dump Truck |
| Category | Sany Articulated Dump Truck Engine Lubrication Parts |

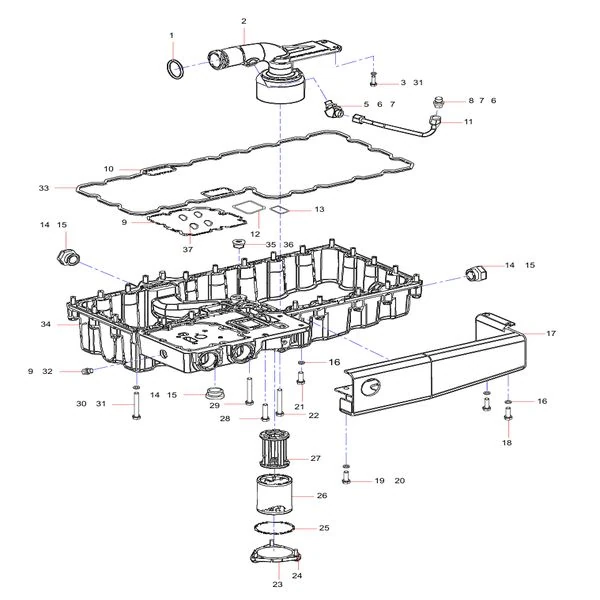

130202000093A266 Assembly Component Parts List
Below is the detailed parts catalog breakdown of the engine oil pan assembly as referenced in the Sany SAT40C technical manual. All listed components can be ordered individually for targeted field service or routine maintenance:
*(Note: Item index 4 is omitted in the source image table, jumping from 3 to 5. This has been meticulously accounted for to preserve precise catalog fidelity).*5. **Refine Terminology & Formatting**:
* Ensure all HTML tables are clean, using inline CSS for borders and collapsed lines to facilitate effortless copy-pasting into the WP source editor.
* Keep the overall tone humble, analytical, B2B-optimized, and strictly objective.Let’s generate the response.### 1. Product Name
“`text
130202000093A266 Oil Pan Assembly Sany SAT40C Articulated Dump Truck Spare Parts
| Index | Part Number | Description / English Part Name | Qty |
|---|---|---|---|
| 1 | 130202000093A179 | O-ring | 1 |
| 2 | 130202000093A180 | Filter Screen Shell | 1 |
| 3 | 130202000093A181 | Bolt | 2 |
| 5 | 130202000093A182 | Joint | 1 |
| 6 | 130202000093A338 | O-ring | 3 |
| 7 | 130202000093A183 | Mold Sealing Ring (Oil Pan Gasket) | 2 |
| 8 | 130202000093A184 | Fitting | 1 |
| 9 | 130202000093A205 | Sealing Ring | 1 |
| 10 | 130202000093A207 | O-ring | 2 |
| 11 | 130202000093A185 | Pipe Assembly (Oil Suction Pipe) | 1 |
| 12 | 130202000093A186 | O-ring | 1 |
| 13 | 130202000093A187 | O-ring | 1 |
| 14 | 130202000093A188 | Plug Screw | 3 |
| 15 | 130202000093A030 | O-ring | 3 |
| 16 | 130202000093A189 | Washer | 4 |
| 17 | 130202000093A190 | Protection Device (Skid Guard Plate) | 1 |
| 18 | 130202000093A191 | Hex Head Bolt | 2 |
| 19 | 130202000093A192 | Washer | 1 |
| 20 | 130202000093A193 | Hex Head Bolt | 1 |
| 21 | 130202000093A194 | Hex Head Bolt | 1 |
| 22 | 130202000093A195 | Hex Head Bolt | 1 |
| 23 | 130202000093A196 | Cover (Inspection Cover Plate) | 1 |
| 24 | 130202000093A197 | Hex Head Bolt | 3 |
| 25 | 130202000093A027 | O-ring | 1 |
| 26 | 130202000093A026 | Oil Suction Filter Mesh (Pickup Screen) | 1 |
| 27 | 130202000093A025 | Oil Filter Magnet (Magnetic Drain Plug Magnet) | 1 |
| 28 | 130202000093A198 | Hex Head Bolt | 1 |
| 29 | 130202000093A199 | Hex Head Bolt | 1 |
| 30 | 130202000093A200 | Hex Head Bolt | 24 |
| 31 | 130202000093A038 | Washer | 26 |
| 32 | 130202000093A201 | Plug Screw | 1 |
| 33 | 130202000093A206 | Sealing Ring | 1 |
| 34 | 130202000093A355 | Oil Pan (Cast / Steel Oil Pan) | 1 |
| 35 | 130202000093A203 | Plug Screw | 1 |
| 36 | 130202000093A204 | O-ring | 1 |
| 37 | 130202000093A022 | O-ring | 1 |
