803402428 Steering Column Assembly XCMG XDE130 Dump Truck Parts
803402428 Steering Column Assembly — engineered for the XCMG XDE130 electric driving dump truck. This comprehensive cabin control center provides the operator with precise directional handling and ergonomic switch access. The complete 11-part kit includes the main Steering Column Body (803496170), Steering Wheel (803496164), Universal Joint for the steering gear, the Combined Switch (Multifunction Stalk), and the Tilt Adjustment Lever. Genuine OEM and high-quality aftermarket options available for cabin restorations and electrical repairs.
Product Details:
803402428 Steering Column Assembly for XCMG XDE130
The 803402428 Steering Column Assembly is the central directional control and ergonomic command hub designed for the operator cabin of the XCMG XDE130 Electric Driving Dump Truck. This heavy-duty assembly translates the operator’s steering inputs through the cabin floor down to the hydraulic steering valve via a robust universal joint, ensuring precise articulation of the massive 130-ton chassis.
Beyond mechanical steering, this fully-loaded column acts as an electrical control center. It integrates the multifunction stalk switch (controlling lighting and wipers), the central horn assembly, and an adjustable tilt mechanism to ensure maximum comfort for operators of any size. We supply the complete 803402428 master assembly, as well as individual internal components such as replacement steering wheels, U-joints, and electronic switches. Genuine XCMG OEM parts and premium aftermarket alternatives are available for global dispatch.
General Assembly Specifications
| Attribute | Specification Details |
|---|---|
| Assembly Part Number | 803402428 |
| Assembly Name | Steering Column Assembly |
| Compatible Brand | XCMG |
| Applicable Machine | XDE130 Electric Driving Dump Truck |
| Component Type | Cabin Interior / Operator Controls & Steering |

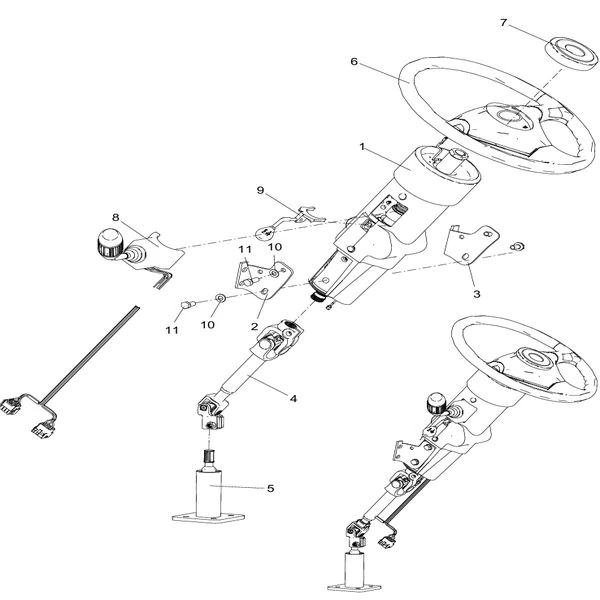

803402428 Component Parts List (Master Table)
Below is the detailed 11-part breakdown of this steering column assembly according to the official XCMG XDE130 parts catalog. You can order the entire completely trimmed column or request specific individual electronic and mechanical components:
| Index | Part Number | Description | Qty | Standard / Note |
|---|---|---|---|---|
| 1 | 803496170 | Steering Column Body | 1 | – |
| 2 | 803496169 | Left Fixed Support | 1 | – |
| 3 | 803496163 | Right Fixed Support | 1 | – |
| 4 | 803496167 | Universal Joint (Steering Shaft U-Joint) | 1 | – |
| 5 | 803496168 | Fixing Base Seat (Mounting Flange) | 1 | – |
| 6 | 803496164 | Steering Wheel | 1 | – |
| 7 | 803496166 | Trumpet (Horn Button / Horn Assembly) | 1 | – |
| 8 | 803496165 | Combined Switch (Multifunction Stalk Switch) | 1 | – |
| 9 | 803496162 | Adjustment Lever (Tilt/Telescopic Control) | 1 | – |
| 10 | 805338279 | Washer 10 | 4 | GB/T97.1-2002 |
| 11 | 805002068 | Bolt M10×22 | 4 | GB/T5783-2000 |
Features & Benefits of Our XCMG Steering Components
- Ergonomic Customization: Equipped with the 803496162 Adjustment Lever, allowing operators to easily alter the tilt and telescopic angle of the steering wheel to reduce shoulder and back fatigue during long shifts.
- Integrated Electrical Controls: Features the 803496165 Combined Switch (multifunction stalk), granting the operator seamless fingertip control over turn signals, headlights, and wipers without taking their hands off the wheel.
- Bind-Free Power Transfer: The heavy-duty 803496167 Universal Joint ensures that rotational input is transferred smoothly down to the steering control valve, even when the cabin flexes independently of the chassis on uneven mining roads.
Ordering & Inquiry Guidelines
- Select Individual Components: You can order the entire fully-assembled steering column for a rapid drop-in replacement, or you can order specific components such as just the Steering Wheel (Index 6) or the electronic Combined Switch (Index 8).
- Provide Machine Serial Number: Wiring harness connector plugs for the combined switch and horn assembly can vary based on regional configurations and cabin trim levels. Providing your XCMG XDE130 VIN ensures our technicians match your original cabin layout perfectly.
- Secure Packaging: We utilize specialized protective wrapping and sturdy custom boxing to ensure the steering wheel grip, plastic shrouds, and delicate electrical stalks arrive in pristine, factory-new condition.
Submit your inquiry today detailing the specific items you need from the 803402428 assembly, along with required quantities and your destination port. Our B2B sales team will provide a detailed commercial quote and freight lead time within 1 business day.
