800361506 Brake Caliper Assembly XCMG XDE130 Dump Truck Parts

800361506 Brake Caliper Assembly for XCMG XDE130

The 800361506 Brake Assembly is a highly critical dynamic safety component engineered for the front and rear axles of the XCMG XDE130 Electric Driving Dump Truck. Translation Note: While listed in the factory parts manual simply as a “Brake,” this master group is professionally recognized as the Heavy-Duty Multi-Piston Brake Caliper Assembly.

Safely decelerating and stopping a 130-ton payload on steep mining grades generates extreme kinetic heat and hydraulic pressure. This industrial-grade caliper assembly is built around a massive 6-piston architecture to deliver uniform, fade-free clamping force across the brake rotor. This comprehensive 12-part combination group provides a complete “drop-in” braking solution. It includes the heavy-duty cast caliper housing, 6 stainless steel pistons, friction discs (pads), thrust plates, bleeder valves, and a complete set of high-temperature hydraulic seals. We supply the complete 800361506 master assembly for rapid shop repairs, as well as individual internal sub-components for specialized caliper rebuilds. Genuine XCMG OEM parts and premium aftermarket alternatives are available for global dispatch.

General Assembly Specifications

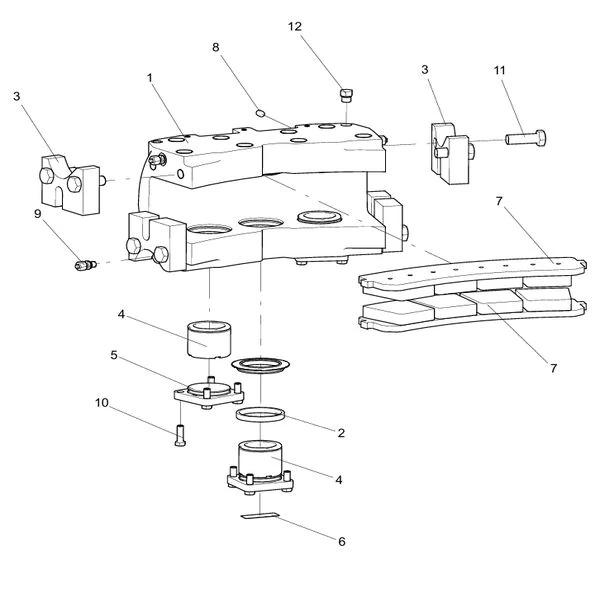

800361506 Component Parts List (Master Table)

Below is the detailed 12-part breakdown of this brake caliper assembly according to the official XCMG XDE130 parts catalog. You can order the entire fully assembled caliper unit or request specific individual replacement parts (such as the seal kit or pistons):

Features & Benefits of Our XCMG Braking Components

• Uncompromising 6-Piston Power: Features six heavy-duty 800375179 Pistons per caliper. This multi-piston architecture ensures even pad wear and massive, fade-free clamping force on the brake rotor during steep downhill hauls.
• Complete Repack Ready: We offer the dedicated 800362665 Sealing Element Service Kit containing every high-temperature O-ring, dust boot, and fluid seal required to completely rebuild a leaking or seized caliper, saving thousands over buying a whole new housing.
• Service-Friendly Design: Equipped with four 800375175 Exhaust Valves (Bleeder Screws), allowing mechanics to quickly and effectively bleed trapped air from the vast hydraulic brake lines, ensuring a firm brake pedal and instant stopping response.

Ordering & Logistics Guidelines

1. Complete Unit vs. Internal Rebuild: You can order the fully assembled, factory-tested Brake Caliper unit for a rapid drop-in replacement, or you can order specific internal repair components (such as the friction pads, pistons, or the main seal kit) if you run a specialized hydraulic rebuild facility.
2. Multiply by Axle Requirement: Heavy-duty dump trucks utilize multiple brake calipers per axle. Please confirm which specific wheel position requires replacement and order the required quantity accordingly to ensure balanced braking forces.
3. Provide Machine Serial Number: Caliper mounting bolt patterns and hydraulic port threads can vary slightly depending on the production year and specific payload configurations. Providing your XCMG XDE130 VIN ensures our technicians supply 100% accurate fitment.

Submit your inquiry today detailing the specific items you need from the 800361506 assembly, along with required quantities and your destination port. Our B2B sales team will provide a detailed commercial quote and freight lead time within 1 business day.
