330107010 Deck Assembly XCMG XDE130 Dump Truck Parts

330107010 Deck Assembly for XCMG XDE130

The 330107010 Deck Assembly is a highly critical structural and safety component engineered for the XCMG XDE130 Electric Driving Dump Truck. Serving as the primary exterior maintenance platform (or catwalk), this massive steel assembly spans the width of the chassis, providing operators and mechanics with a secure, flat surface to access the cabin, electrical cabinets, and the top-end of the engine.

Beyond providing safe footing, the deck assembly acts as a protective shield for the delicate wiring harnesses and hydraulic lines routed beneath it. This comprehensive 30-part master group includes the main left and right deck panels, the service entrance threshold, heavy-duty front mudguards, line routing baffles, and an extensive system of adjustable pads (shims) designed to perfectly level the deck and isolate it from chassis twisting. We supply the complete 330107010 master assembly as well as individual structural sub-components. Genuine XCMG OEM parts and premium aftermarket alternatives are available for global dispatch.

General Assembly Specifications

330107010 Component Parts List (Master Table)

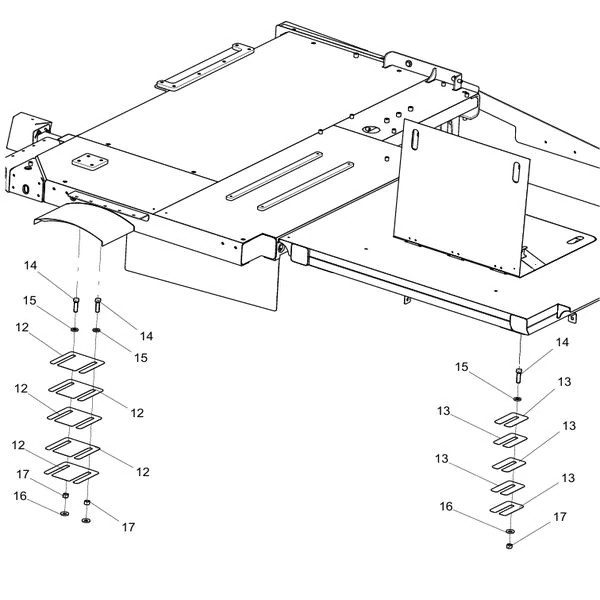

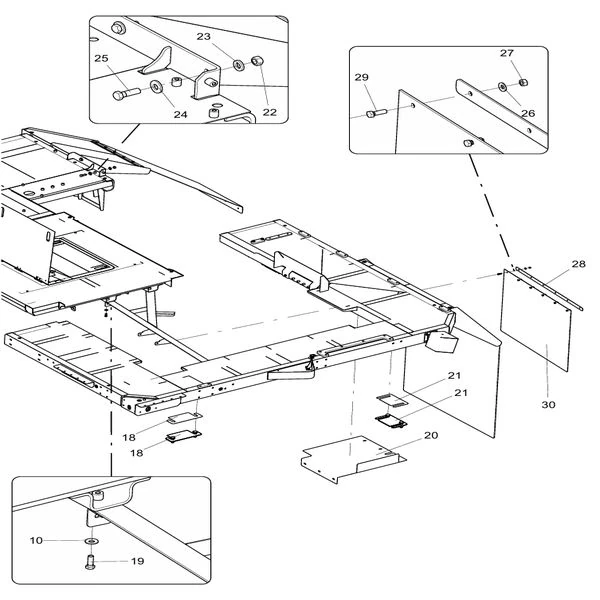

Below is the detailed 30-part breakdown of this deck assembly according to the official XCMG XDE130 parts catalog. You can request pricing for the entire system or specify individual major components (such as mudguards, specific deck panels, or leveling pads):

Features & Benefits of Our XCMG Chassis Decks

• Engineered Leveling System: The chassis of a 130-ton truck flexes heavily under load. This kit includes 55 specialized “Adjustable Pads” (leveling shims) for the Left, Right, Front, and Rear mounting points. This ensures the steel deck sits perfectly flat and isolated from chassis torsion, preventing metal fatigue and weld cracking.
• Critical Sub-System Shielding: Features the 330105720 Wire Harness Baffler and 330105719 Hydraulic Pipe Baffle. These heavy-duty steel guards route and shield delicate electrical lines and high-pressure hydraulic hoses from falling rocks and operator boot traffic.
• Debris Protection: Includes the complete front mudguard assembly (Indexes 28 & 30) to block highly abrasive mud and silica dust from being kicked up onto the service platform and cabin glass by the massive front tires.

Ordering & Logistics Guidelines

1. Select Individual Major Assemblies: Given the massive physical scale of the complete 30-part deck assembly, customers typically order specific sub-assemblies or hardware kits. Please clearly specify if you need the entire platform system, or just individual units (e.g., “Index 1: 330107012 Right Deck Assembly” or “Index 30: 330106495 Front Mudguard”).
2. Provide Machine Serial Number: Deck cutouts, railing mounts, and baffle routing can vary slightly depending on the production year and specific cabin/engine configurations. Providing your XCMG XDE130 VIN guarantees 100% correct fitment.
3. Global Heavy Freight Shipping: Main platform decks are incredibly heavy and wide structural components. We utilize robust wooden crating, specialized flat-racks, and custom sea-freight routing to ensure safe, damage-free delivery directly to your repair facility or mine site.

Submit your inquiry today detailing the specific items you need from the 330107010 group, along with required quantities and your destination port. Our B2B sales team will provide a detailed commercial quote and freight lead time within 1 business day.
