330106918 Front Suspension Cylinder XCMG XDE130 Dump Truck Parts
330106918 Front Suspension Cylinder — engineered for the XCMG XDE130 electric driving dump truck. Professionally recognized as a Front Hydro-Pneumatic Strut, this massive shock-absorbing cylinder utilizes compressed nitrogen and hydraulic fluid to dampen the kinetic impacts of 130-ton payloads. This comprehensive 29-part assembly features the main Cylinder Tube (914901193), Piston Rod (914901198), Gland, Nitrogen Charging Valves, and the complete DE110_10_2 Seal Kit (914901187). Genuine OEM and high-quality aftermarket options available for drop-in replacements or cylinder repacking.
Product Details:
330106918 Front Suspension Cylinder for XCMG XDE130
The 330106918 Front Suspension Cylinder is a critical load-bearing and ride-control component designed for the front axle of the XCMG XDE130 Electric Driving Dump Truck. Conventional steel springs cannot support the sheer mass of ultra-class mining trucks. Instead, this vehicle relies on heavy-duty Hydro-Pneumatic Struts. By utilizing a highly pressurized combination of nitrogen gas and specialized hydraulic fluid, this cylinder dynamically absorbs catastrophic hauling shocks, protecting the chassis from fractures and providing a stable, comfortable ride for the operator.
This 29-part master assembly contains every structural and sealing component required to rebuild or replace the front suspension strut. It includes the thick-walled outer cylinder tube, the massive induction-hardened piston rod, internal bronze/PTFE guide rings, nitrogen inflation valves, and a comprehensive suite of high-pressure hydraulic seals (organized into the 914901187 Seal Kit). We supply the complete 330106918 cylinder assembly ready for drop-in installation, as well as individual internal parts for specialized hydraulic repair shops. Genuine XCMG OEM parts and premium aftermarket alternatives are available for global dispatch.
General Assembly Specifications
| Attribute | Specification Details |
|---|---|
| Assembly Part Number | 330106918 |
| Assembly Name | Front Suspension Cylinder (Hydro-Pneumatic Shock Strut) |
| Compatible Brand | XCMG |
| Applicable Machine | XDE130 Electric Driving Dump Truck |
| Component Type | Chassis Hydraulics / Ride Control & Dampening |

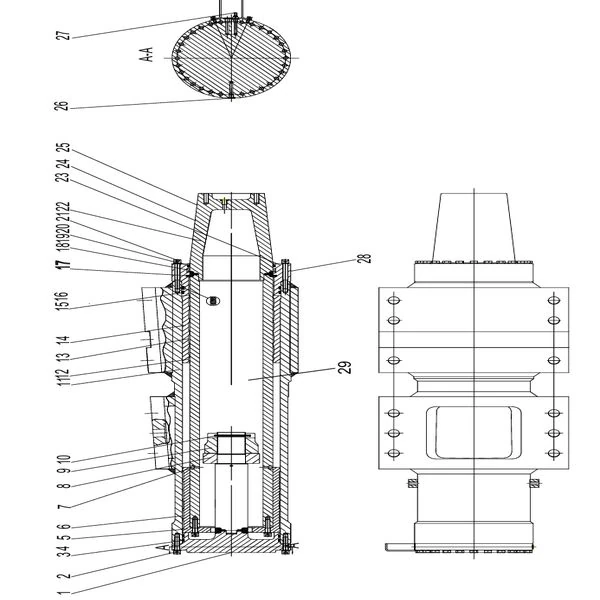

330106918 Component Parts List (Master Table)
Below is the detailed 29-part internal breakdown of this front suspension cylinder according to the official XCMG XDE130 parts catalog. You can order the entire fully assembled cylinder or request specific internal repair parts (like the main seal kit or guide rings):
| Index | Part Number | Description | Qty | Standard / Note |
|---|---|---|---|---|
| 1 | 914901188 | Cylinder Base | 1 | – |
| 2 | 805302899 | Washer | 56 | – |
| 3 | 803403202 | O-Ring 304.17×5.33 | 2 | – |
| 4 | 803403201 | Filter Screen | 2 | – |
| 5 | 914901189 | Piston | 1 | – |
| 6 | 803310137 | Support Ring 330×322×40 (Wear/Guide Ring) | 6 | – |
| 7 | 800514871 | Hard Alloy Steel Ball SΦ14 (Dampening Valve Check Ball) | 2 | – |
| 8 | 914901190 | Retainer | 1 | – |
| 9 | 914901191 | Nut | 1 | – |
| 10 | 805639105 | Pin 10×120 | 1 | GB/T879.1-2000 |
| 11 | 914901193 | Cylinder Tube (Main Outer Barrel) | 1 | – |
| 12 | 803310132 | Dirt Proof Ring 288×280×9.7 (Wiper / Dust Seal) | 1 | – |
| 13 | 803310138 | Support Ring 288×280×40 (Wear/Guide Ring) | 7 | – |
| 14 | 914901192 | Sleeve Guide | 1 | – |
| 15 | 803301932 | O-Ring 335×8.6 | 2 | – |
| 16 | 803370270 | Hold Washer 321.2×335×2.5 (Backup Ring) | 2 | – |
| 17 | 803310133 | Sitefeng Seal 280×8.1 (PTFE Step Seal) | 1 | – |
| 18 | 803196154 | Shaft Seal 280×300×15 (Primary Rod Seal) | 1 | – |
| 19 | 803199683 | Hold Washer 280×300×3 (Backup Ring) | 1 | – |
| 20 | 803310136 | Dustproof Washer 280×296×9.5 (Secondary Dust Seal) | 1 | – |
| 21 | 805105137 | Screw M16×130 | 32 | GB/T70.1-2008 |
| 22 | 914901198 | Piston Rod | 1 | – |
| 23 | 914901227 | Gland (Cylinder Head / Seal Carrier) | 1 | – |
| 24 | 914903765 | Dust Cap | 1 | – |
| 25 | 805806000 | Hose Clamp D280 | 1 | – |
| 26 | 927300014 | Screw Plug | 1 | – |
| 27 | 800937813 | Inflation Valve (Nitrogen Charging Valve) | 3 | – |
| 28 | 805806001 | Hose Clamp D390 | 1 | – |
| 29 | 914901187 | DE110_10_2 Seal Kit (Complete Cylinder Rebuild Kit) | 1 |
