330106509 Ladder Assembly XCMG XDE130 Dump Truck Parts

330106509 Ladder Assembly for XCMG XDE130

The 330106509 Ladder Assembly is a vital occupational safety and chassis access system designed specifically for the XCMG XDE130 Electric Driving Dump Truck. Routine servicing and daily operation of ultra-class haul trucks require personnel to safely scale the massive chassis. This assembly provides the rigid structural framework—including fixed ladders and heavy-duty handrails—necessary to guarantee three-point contact and prevent slips and falls during high-elevation boarding.

This comprehensive 9-part combination group goes beyond a simple step-ladder. It represents a complete, integrated access point. It includes the heavy-duty tubular steel hook ladder, the inclined boarding handrail, structural lower guard bars, and a massive array of vibration-proof mounting hardware. We supply the complete 330106509 assembly as well as individual structural components to support targeted collision repairs. Genuine XCMG OEM parts and premium aftermarket alternatives are available for global dispatch.

General Assembly Specifications

330106509 Component Parts List (Master Table)

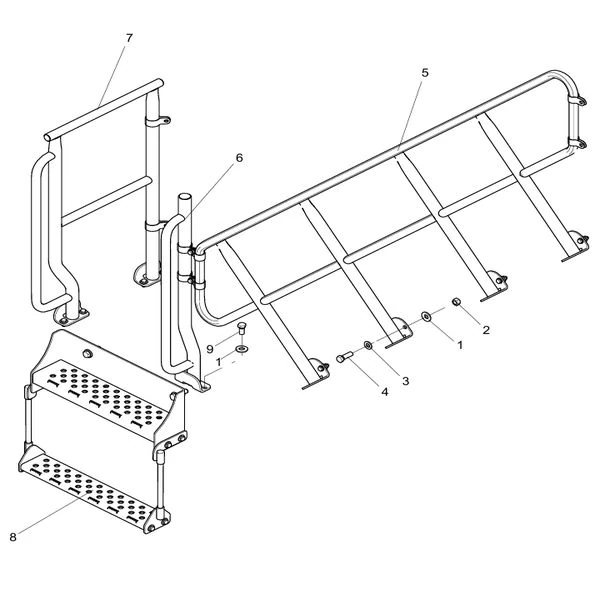

Below is the detailed 9-part breakdown of this ladder assembly according to the official XCMG XDE130 parts catalog. You can order the entire safety network or request specific individual hardware components (such as replacement ladders, rails, or specific bolts):

Features & Benefits of Our XCMG Safety Assemblies

• Total Fall Protection Compliance: By outfitting your chassis with the exact OEM-specified Hook Ladder and Guard Bars, you ensure a continuous safety perimeter for operators, keeping your fleet strictly compliant with global mining safety mandates like MSHA and OSHA.
• Severe-Duty Tubular Steel: The main 330106353 Hook Ladder and handrails are fabricated from heavy-gauge structural steel to withstand severe impacts from falling rocks, loader buckets, and general off-road abuse without compromising their load-bearing capacity.
• Vibration-Proof Hardware: Heavy haul trucks generate intense chassis resonance. This kit features 16 specialized DIN6796 conical spring washers (Index 1) that maintain continuous tension on the GB-standard M12 mounting bolts, ensuring the safety rails never rattle loose.

Ordering & Logistics Guidelines

1. Select Individual Components: Due to the modular nature of this safety assembly, customers frequently order specific replacement parts. Please clearly specify if you need the entire ladder network, or just an individual sub-component (e.g., “Index 8: 330106353 Hook Ladder” or “Index 5: 330106333 Handrail”).
2. Provide Machine Serial Number: Walkway configurations, handrail bends, and mounting point locations can vary based on regional safety regulations or specific chassis designs. Providing your XCMG XDE130 VIN ensures our technicians match your original chassis layout perfectly.
3. Global Heavy Freight Shipping: Structural steel ladders and guardrails are bulky and susceptible to bending if improperly handled during shipping. We utilize specialized flat-rack containers and custom protective crating to ensure these critical safety structures arrive undamaged at your repair facility.

Submit your inquiry today detailing the specific items you need from the 330106509 assembly, along with required quantities and your destination port. Our B2B sales team will provide a detailed commercial quote and freight lead time within 1 business day.
