330106505 Hydraulic Ladder Assembly XCMG XDE130 Dump Truck Parts
330106505 Hydraulic Ladder Assembly — engineered for the XCMG XDE130 electric driving dump truck. This sub-assembly provides the critical safety handholds and guard rails for the truck’s main hydraulic boarding ladder. The complete 7-part kit includes the Lower Guard Bar (330106506), Inclined Ladder Handrail (330104118), and a full set of heavy-duty DIN/GB standard mounting hardware. Designed to ensure strict MSHA/OSHA compliance for operator access. Genuine OEM and high-quality aftermarket options available for chassis collision repairs.
Product Details:
330106505 Hydraulic Ladder Assembly for XCMG XDE130
The 330106505 Hydraulic Ladder Assembly is a highly advanced operator access system designed for the XCMG XDE130 Electric Driving Dump Truck. On massive 130-ton ultra-class haul trucks, the operator cabin is situated several meters above ground level. This automated Hydraulic Elevator (boarding stairway) lowers securely to the ground to allow safe, ergonomic boarding, and retracts flush against the chassis during operation to prevent damage from rocks and debris.
This complete 12-part master combination group contains the structural and mechanical components required to replace a damaged boarding system. It features the main hydraulic elevator unit, rigid steel handrails and guard bars for three-point contact safety, and an extensive array of high-tensile GB/DIN mounting hardware. We supply the complete 330106505 assembly as well as individual structural components to support targeted collision repairs. Genuine XCMG OEM parts and premium aftermarket alternatives are available for global dispatch.
General Assembly Specifications
| Attribute | Specification Details |
|---|---|
| Assembly Part Number | 330106505 |
| Assembly Name | Hydraulic Ladder Assembly (Power Boarding Stairs) |
| Compatible Brand | XCMG |
| Applicable Machine | XDE130 Electric Driving Dump Truck |
| Component Type | Chassis Exterior / Operator Access & Fall Protection |

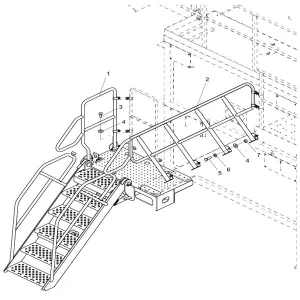

330106505 Component Parts List (Master Table)
Below is the detailed 12-part breakdown of this automated ladder assembly according to the official XCMG XDE130 parts catalog. You can order the entire hardware kit or request specific individual components:
| Index | Part Number | Description | Qty | Standard / Note |
|---|---|---|---|---|
| 1 | 330106506 | Lower Guard Bar | 1 | – |
| 2 | 330104118 | Inclined Ladder Handrail | 1 | – |
| 3 | 805046469 | Bolt M12×25 | 4 | GB/T5783-2000 |
| 4 | 805301374 | Washer 12 (Conical Spring Washer) | 12 | DIN6796 |
| 5 | 805006413 | Bolt M12×35 | 8 | GB/T5783-2000 |
| 6 | 805338281 | Washer 12 | 8 | GB/T97.1-2002 |
| 7 | 805238372 | Nut M12 | 8 | GB/T6170-2000 |

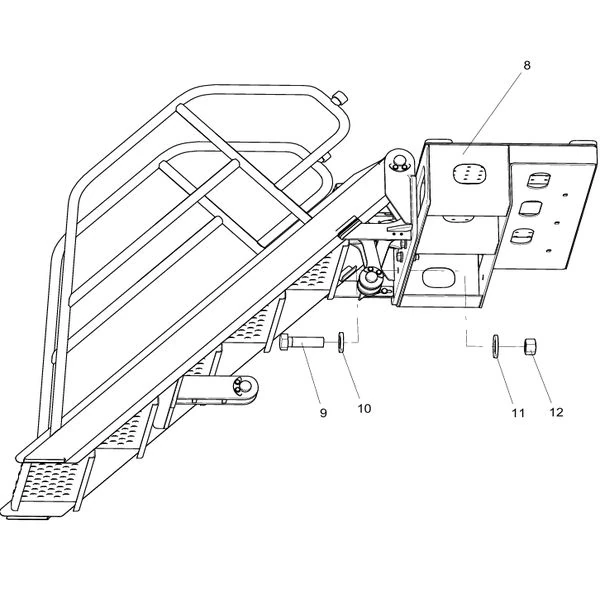

| 8 | 330104129 | Hydraulic Elevator (Automated Boarding Stairs) | 1 | – |
| 9 | 805046587 | Bolt M18×60 | 7 | GB/T5783-2000 |
| 10 | 805338377 | Washer 18 | 7 | GB/T1230-2006 |
| 11 | 805301378 | Washer 18 (Conical Spring Washer) | 7 | DIN6796 |
| 12 | 805238505 | Nut M18 | 7 | GB/T6170-2000 |
Features & Benefits of Our XCMG Access Systems
- Automated Operator Safety: The 330104129 Hydraulic Elevator ensures operators do not have to scale dangerous vertical ladders. The stairs deploy outward and downward hydraulically, providing a safe, angled ascent to the cabin deck.
- OSHA/MSHA Fall Protection Compliance: The heavy-duty 330104118 Inclined Ladder Handrail and 330106506 Lower Guard Bar guarantee strict “three-point contact” security, actively mitigating the risk of slips and falls in wet or muddy mining conditions.
- Severe-Duty Fastening: Retractable ladders undergo massive sheer stress. This kit provides exactly 7 massive M18×60 bolts paired with DIN6796 conical spring washers to anchor the elevator unit flawlessly to the chassis, ensuring it never rattles loose.
Ordering & Logistics Guidelines
- Select Individual Parts: You can order the complete kit for a full ladder restoration, or specify individual part numbers (e.g., if the stair unit was damaged by a loader bucket, specify “Index 8: 330104129 Hydraulic Elevator”).
- Provide Machine Serial Number: Ladder geometries and hydraulic cylinder mountings can vary based on specific chassis configurations. Providing your XCMG XDE130 VIN ensures 100% accurate, plug-and-play fitment.
- Global Heavy Freight Shipping: Structural steel ladders and hydraulic assemblies are bulky and susceptible to bending if handled improperly. We utilize specialized flat-rack containers and custom protective crating to ensure these critical safety structures arrive undamaged.
Submit your inquiry today detailing the specific items you need from the 330106505 assembly, along with required quantities and your destination port. Our B2B sales team will provide a detailed commercial quote and freight lead time within 1 business day.
