330106386 Frame Assembly XCMG XDE130 Dump Truck Parts

330106386 Frame Assembly for XCMG XDE130

The 330106386 Frame Assembly represents the absolute structural core of the XCMG XDE130 Electric Driving Dump Truck. Serving as the primary chassis backbone, this massive welded and bolted steel assembly must absorb millions of pounds of dynamic kinetic energy, torsional twisting, and heavy-duty loading shocks typical of deep-pit mining operations.

Because the XDE130 is an electric-drive truck, this specialized frame assembly is uniquely engineered to house massive high-voltage battery banks, electric drive axle housings, and heavy-duty hydraulic suspension mounts. This incredible 65-part master group contains every structural cross member, support plate, vibration shock pad, adjusting shim, and piece of high-tensile mounting hardware required to rebuild the rear chassis section. We supply the complete 330106386 assembly as well as its individual major sub-components. Genuine XCMG OEM structures are available for global heavy-freight dispatch.

General Assembly Specifications

330106386 Component Parts List (Master Table)

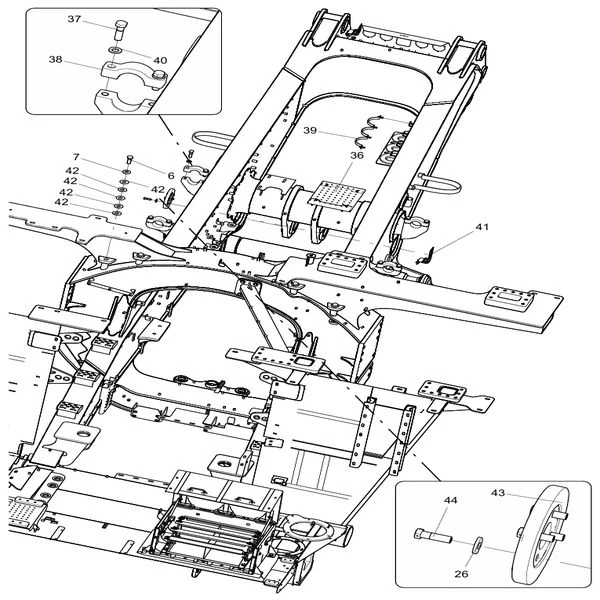

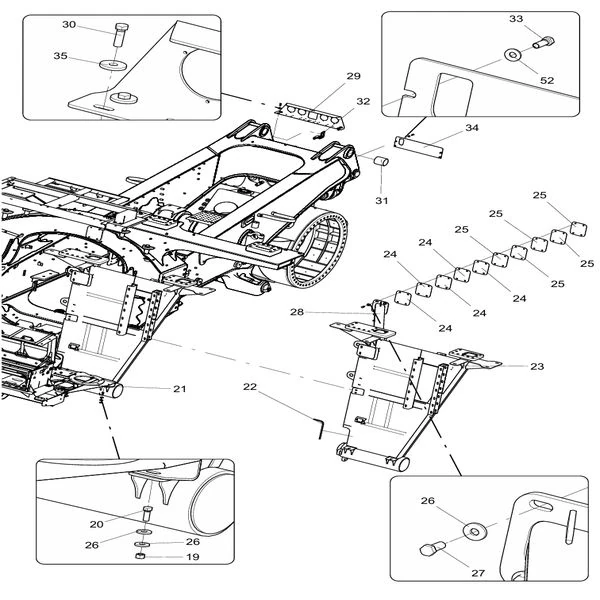

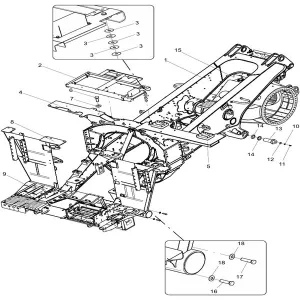

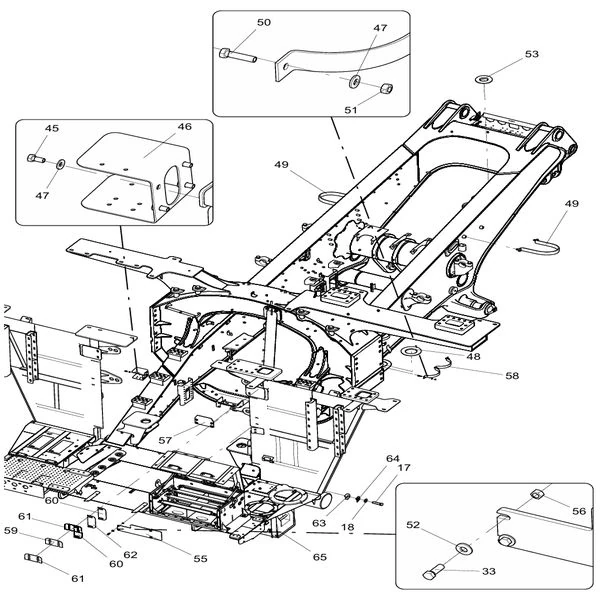

Below is the detailed 65-part breakdown of this massive main frame assembly according to the official XCMG XDE130 parts catalog. You can request pricing for the entire system or specify individual major components (such as the axle housing, battery box, or shims):

Features & Benefits of Our XCMG Chassis Components

• Uncompromising Structural Rigidity: The integration of the 330105611 Rear Axle Housing and heavily reinforced cross-members guarantees that the chassis will not warp or twist, keeping the massive planetary drives and electric motors in perfect alignment.
• Integrated Shock & Vibration Isolation: Dedicated 330100092 Accumulator Shock Pads and heavy-duty battery box mounts effectively isolate sensitive high-voltage electronics and hydraulic accumulators from the brutal vibrations of the haul road.
• Complete Drop-In Restoration: Rebuilding a heavily damaged chassis is complex. This kit ensures that all 32 specialized alignment shims (Indexes 59-62, 64) and industrial-grade GB/DIN mounting hardware are included, dramatically reducing machine downtime during major structural overhauls.

Ordering & Logistics Guidelines

1. Select Individual Major Assemblies: Given the massive physical scale and cost of the complete 65-part frame assembly, customers typically order specific sub-assemblies. Please clearly specify if you need the entire chassis backbone, or just an individual unit (e.g., “Index 15: 330105611 Rear Axle Housing Assembly” or “Index 54: 330104330 Battery Box Assembly”).
2. Provide Machine Serial Number: Axle housing splines, suspension mounts, and high-voltage battery box dimensions frequently vary depending on the production year and specific payload configurations. Providing your XCMG XDE130 VIN guarantees 100% correct fitment.
3. Global Heavy Freight Shipping: Main chassis frames and axle housings are immensely heavy cast-iron and welded steel structures. We utilize robust wooden crating, specialized flat-racks, and custom sea-freight routing to ensure safe, damage-free delivery directly to your repair facility or mine site.

Submit your inquiry today detailing the specific items you need from the 330106386 group, along with required quantities and your destination port. Our B2B sales team will provide a detailed commercial quote and freight lead time within 1 business day.
