330106267 Left Deck Assembly XCMG XDE130 Dump Truck Parts
330106267 Left Deck Assembly — engineered for the XCMG XDE130 electric driving dump truck. Professionally recognized as the Driver-Side Maintenance Platform or Catwalk, this 24-part structural master group provides safe, elevated access to the cabin and critical debris shielding. The complete kit includes the primary Left Deck Welding Assembly (330106268), heavy-duty splash boards (mudguards), exterior lighting brackets (clearance and reversing lamps), and 11 protective wiring grommets. Genuine OEM and high-quality aftermarket options available for major structural chassis rebuilds.
Product Details:
330106267 Left Deck Assembly for XCMG XDE130
The 330106267 Left Deck Assembly is a highly critical structural, safety, and shielding component engineered for the XCMG XDE130 Electric Driving Dump Truck. Serving as the primary driver-side exterior maintenance platform (or catwalk), this massive steel assembly spans the left side of the cabin, providing operators and mechanics with a secure, flat surface to safely board the vehicle and access electrical cabinets.
Beyond providing safe footing, this deck assembly acts as the primary fender and mudguard system for the left-side tires, blocking highly abrasive mud, silica dust, and rock projectiles from hitting the cabin glass. This comprehensive 24-part master group includes the main welded platform, complete splash board (mudguard) assemblies, structural pressing plates, and dedicated brackets for the vehicle’s clearance and reversing lamps. We supply the complete 330106267 master assembly as well as individual structural sub-components. Genuine XCMG OEM parts and premium aftermarket alternatives are available for global dispatch.
General Assembly Specifications
| Attribute | Specification Details |
|---|---|
| Assembly Part Number | 330106267 |
| Assembly Name | Left Deck Assembly (Driver-Side Maintenance Platform & Fenders) |
| Compatible Brand | XCMG |
| Applicable Machine | XDE130 Electric Driving Dump Truck |
| Component Type | Chassis Exterior / Operator Access & Debris Shielding |
330106267 Component Parts List (Master Table)

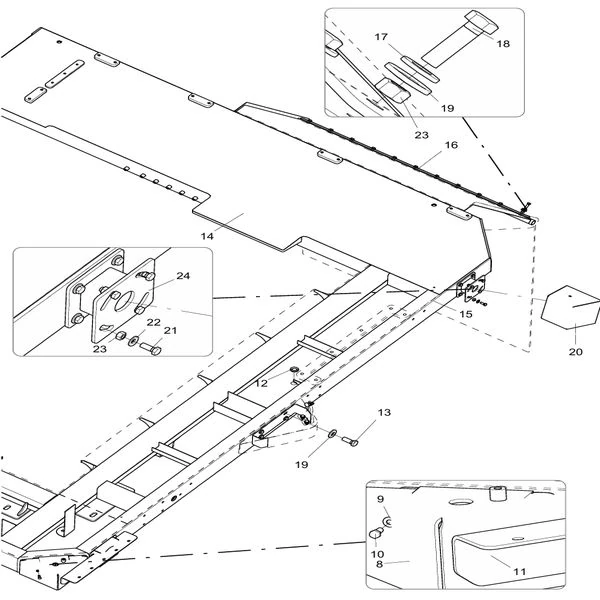

Below is the detailed 24-part breakdown of this left deck assembly according to the official XCMG XDE130 parts catalog. You can request pricing for the entire system or specify individual major components (such as mudguards, lighting brackets, or hardware):
| Index | Part Number | Description | Qty | Standard / Note |
|---|---|---|---|---|
| 1 | 330106268 | Left Deck Welding Assembly (Main Platform Structure) | 1 | – |
| 2 | 330104388 | Small Platform | 1 | – |
| 3 | 330101760 | Splash Board (Mudguard) | 1 | – |
| 4 | 330104387 | Mud Guard Bracket | 1 | – |
| 5 | 330104347 | Overline Rubber Ring (Wiring Harness Grommet) | 4 | – |
| 6 | 330104389 | Ball Catch Bracket Assembly (Access Gate Latch Bracket) | 1 | – |
| 7 | 330106274 | Overline Rubber Ring (Wiring Harness Grommet) | 1 | – |
| 8 | 330100041 | Steering Lamp/Clearance Bracket | 2 | – |
| 9 | 805301384 | Washer 8 (Conical Spring Washer) | 8 | DIN6796 |
| 10 | 805046508 | Bolt M8×20 | 8 | GB/T5783-2000 |
| 11 | 330104348 | Overline Rubber Ring (Wiring Harness Grommet) | 2 | – |
| 12 | 330103270 | Overline Rubber Ring (Wiring Harness Grommet) | 1 | – |
| 13 | 805006412 | Bolt M12×30 | 12 | GB/T5783-2000 |
| 14 | 330104346 | Overline Rubber Ring (Wiring Harness Grommet) | 1 | – |
| 15 | 330104349 | Overline Rubber Ring (Wiring Harness Grommet) | 2 | – |
| 16 | 330104392 | Fender Pressing Plate | 1 | – |
| 17 | 805338281 | Washer 12 (Flat Washer) | 11 | GB/T97.1-2002 |
| 18 | 805046528 | Bolt M10×35 | 11 | GB/T5783-2000 |
| 19 | 805301374 | Washer 12 (Conical Spring Washer) | 23 | DIN6796 |
| 20 | 330104391 | Reversing Lamp Bracket | 1 | – |
| 21 | 805011330 | Bolt M10×25 | 10 | GB/T5783-2000 |
| 22 | 805301373 | Washer 10 (Conical Spring Washer) | 10 | DIN6796 |
| 23 | 805238371 | Nut M10 | 15 | GB/T6170-2000 |
| 24 | 330104390 | Lamp Bracket Support | 1 | – |
Features & Benefits of Our XCMG Chassis Decks
- Severe-Duty Structural Integrity: The 330106268 Left Deck Welding Assembly is fabricated from heavy-gauge, slip-resistant steel designed to support the weight of multiple mechanics while resisting deformation from falling rocks.
- Complete Debris Shielding: Features an array of mudguards and fender pressing plates (Indexes 3, 4, 16). These guards block highly abrasive mud and silica dust from being kicked up onto the service platform, protecting vital lighting components and cabin glass.
- Integrated Electrical Protection: Includes exact-spec Lamp Brackets (Indexes 8, 20, 24) to securely mount clearance and reversing lights. To prevent electrical shorts, the kit includes 11 Overline Rubber Rings (grommets) to protect sensitive wiring harnesses from chafing against the steel deck.
Ordering & Logistics Guidelines
- Left vs. Right Specification: Please note that part number 330106267 specifically designates the LEFT (driver’s side) deck assembly. If you require the right deck, please request the corresponding right-hand part number (330107012).
- Select Individual Major Assemblies: Given the massive physical scale of the complete 24-part deck assembly, customers typically order specific sub-assemblies or hardware kits. Please clearly specify if you need the entire platform system, or just individual units (e.g., “Index 1: 330106268 Left Deck Welding” or “Index 3: 330101760 Splash Board”).
- Global Heavy Freight Shipping: Main platform decks are incredibly heavy and wide structural components. We utilize robust wooden crating, specialized flat-racks, and custom sea-freight routing to ensure safe, damage-free delivery directly to your repair facility or mine site.
Submit your inquiry today detailing the specific items you need from the 330106267 group, along with required quantities and your destination port. Our B2B sales team will provide a detailed commercial quote and freight lead time within 1 business day.
Packing&Shipping：
