330105710 Overhaul Guard Bar Assembly XCMG XDE130 Dump Truck Parts

330105710 Overhaul Guard Bar Assembly for XCMG XDE130

The 330105710 Overhaul Guard Bar Assembly is a vital occupational safety and chassis access system designed specifically for the XCMG XDE130 Electric Driving Dump Truck. Routine servicing of ultra-class haul trucks requires mechanics to safely scale the massive chassis to access the powertrain and hydraulic reservoirs. This assembly provides the rigid structural framework—functioning as the primary service deck handrails—necessary to prevent slips and falls during high-elevation maintenance.

This comprehensive 10-part combination group goes far beyond a single safety rail. It represents a complete perimeter access network for the overhaul deck. It includes the heavy-duty tubular steel left and right guardrails, a dedicated hinged access door (safety gate), galvanized hinges, and all required high-tensile mounting pins and bolts. We supply the complete 330105710 assembly as well as individual structural components to support targeted collision repairs. Genuine XCMG OEM parts and premium aftermarket alternatives are available for global dispatch.

General Assembly Specifications

330105710 Component Parts List (Master Table)

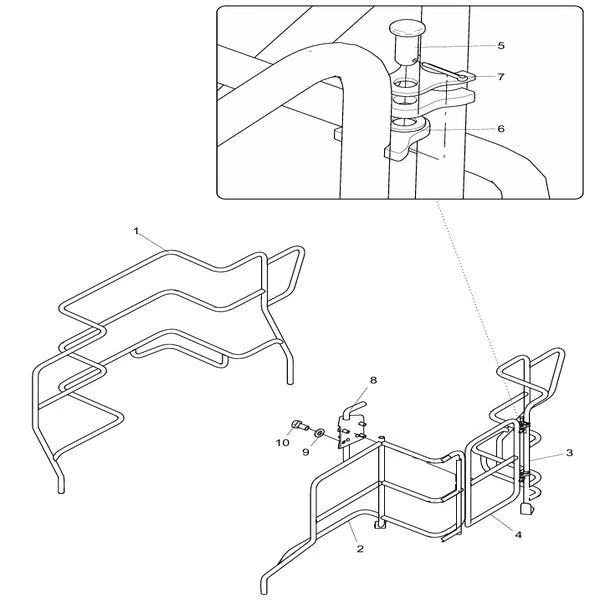

Below is the detailed 10-part breakdown of this overhaul guard bar assembly according to the official XCMG XDE130 parts catalog. You can order the entire safety network or request specific individual hardware components (such as replacement gates or hinges):

Features & Benefits of Our XCMG Safety Assemblies

• Total Fall Protection Compliance: By outfitting your chassis with the exact OEM-specified Front, Rear, Left, and Right Guardrails, you ensure a continuous safety perimeter for maintenance personnel, keeping your fleet strictly compliant with global mining safety mandates like MSHA and OSHA.
• Integrated Safety Access Gate: Features the 330105709 Overhaul Guard Bar Door. This hinged safety gate swings inward to allow easy access from the boarding ladders while automatically protecting against accidental outward falls from the service platform.
• Severe-Duty Tubular Steel: The handrails and gates are fabricated from heavy-gauge structural steel to withstand severe impacts from falling rocks, loader buckets, and general off-road abuse without compromising their load-bearing capacity.

Ordering & Logistics Guidelines

1. Select Individual Components: Due to the modular nature of this safety assembly, customers frequently order specific replacement parts. Please clearly specify if you need the entire guardrail network, or just an individual sub-component (e.g., “Index 4: 330105709 Overhaul Guard Bar Door”).
2. Provide Machine Serial Number: Walkway configurations, handrail bends, and mounting point locations can vary based on regional safety regulations or specific chassis designs. Providing your XCMG XDE130 VIN ensures our technicians match your original chassis layout perfectly.
3. Global Heavy Freight Shipping: Structural steel handrails are bulky and susceptible to bending if improperly handled during shipping. We utilize specialized flat-rack containers and custom protective crating to ensure these critical safety structures arrive undamaged at your repair facility.

Submit your inquiry today detailing the specific items you need from the 330105710 assembly, along with required quantities and your destination port. Our B2B sales team will provide a detailed commercial quote and freight lead time within 1 business day.
